Wildtan M-5600

1000W Mid-drive Bafang Fat Tire Electric Bike
Price:
USD
$2299.00
$2999.00

    Please select the information you wantX
  • Color:
    volcano ash
    classic black
    camo
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*1000W
Mid-Drive Motor
Up to 60+
Miles per Charge(Estimate)
48V*17.5Ah
Samsung Lithium-ion Battery
350lbs
Payload Capacity
NOTE: We are currently NOT selling this product to customers with New York City shipping and billing addresses due to Local Law 39.

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Video Review Video Review
Video Review

Wildtan M-5600 Mid-Drive Electric Bike 1000W
Compatible with a
Variety of Accessories

Whether you ride electric bike to hunt, fish, or travel, you can always carry a trailer or a backpack with you to hold your belongings as you ride.

Mid-Drive Electric Bikes

Addmotor's first mid-motor electric bike, designed for hunting. The black, volcano ash, and camo frame colors allow you to hide better in the bush.

wildtan-m-5600 in black color
wildtan-m-5600 volcano ash color

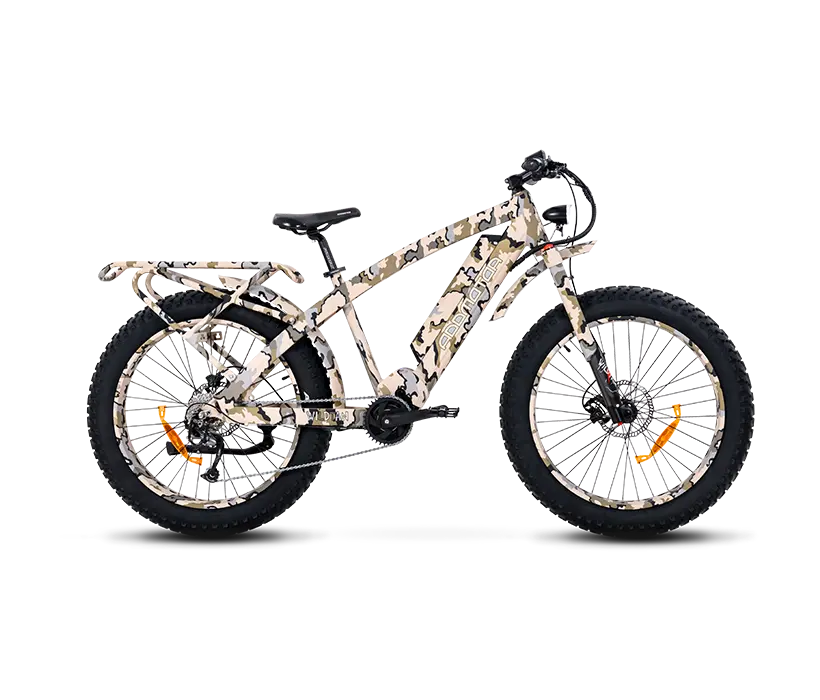

wildtan-m-5600 camo frame colors

Mid-Drive Electric Bikes
17.5AH (840WH)
Lithium Samsung 35GA Cells
60+ MILES (PAS 1)
Miles Per Charge
1000W MID DRIVE MOTOR
Bafang BBSHD With 160 Nm of Torque
FRONT & REAR LIGHTS
Electric Headlight Battery Taillight
6061 Aluminum Alloy Frame
Strong and Unique
26" 4.5" TIRES
Kenda Juggernaut Pro 26" x 4.5"
Addmotor Wildtan Mid-Drive electric bike design
Conquer The
Hard Terrains

The Wildtan Mid-Drive electric bike is
designed to go up hills, take bumpy
roads, and through wooded areas
that are not suitable for
riding city electric bikes.

Wildtan M-5600 Mid-Drive Electric Bike 1000W Samsung 17.5Ah Battery
Wild Ride
with Wildtan M-5600

With a 1000W mid-drive motor and a
17.5Ah Samsung battery, you can freely
shuttle through various terrains and
explore to your heart's delight.

Wildtan M-5600 Mid-Drive Electric Bike 1000W Fat tire
4.5 Inch
Wide Fat Tires

Kenda Juggernaut Pro 26" x 4.5"
Fat Tires for this electric bike.

Wildtan M-5600 Mid-Drive Electric Bike 1000W 17.5Ah battery
Long-lasting 17.5Ah
Samsung Battery

The large capacity battery allows this
mid-drive ebike to travel deep into
the woods with no worries run out
of power during adventure.

Wildtan M-5600 Mid-Drive Electric Bike 1000W Bafang motor
1000W
BBSHD Bafang
Mid-Drive Motor

Rated power at 1000w, the mid-drive
motor provides strong power constantly
enough in continuous steepest hills.

Wildtan M-5600 Mid-Drive Electric Bike 1000W Fork
Best Used for
Hard Terrain

Air inverted fork with 120mm
of travel: rebound, air pressure
adjustable, manual lock-out adjustments.

A Powerful and
Massive E-Bike

The Wildtan M-5600 is the best hunting
e-bike, made with 1000W Bafang mid-drive
motor & hard-wearing fat tires, powerful
and strong enough to handle difficult terrain,
providing more fun and excitement than
anyone needs, but that we all want anyway.

Wildtan M-5600 Mid-Drive Electric Bike 1000W with 5 inch LCD screen
5 Inch LCD
Smart Color Display

The mid-drive electric bike uses a
smart color display that has a
Bluetooth connection & Google
map direction functionality.

Wildtan M-5600 Mid-Drive Electric Bike 1000W Disc Brake
Tektro Hydraulic Disc
Brake HD-E500 With
Motor Cutoff Sensor

Suitable for braking in any weather conditions

Wildtan M-5600 Mid-Drive Electric Bike 1000W light system
Front & Rear Lights

Quality headlight and taillight.

Wildtan M-5600 Mid-Drive Electric Bike 1000W Riding Picture Wildtan M-5600 Mid-Drive Electric Bike 1000W Riding Picture
Air Fork

Air Spring Inverted Fork with 120 mm of travel.Best used for cross country, trail and all-mountain riding.

17.5Ah Samsung Battery

48V*17.5Ah (840WH) With Lithium Samsung 35GA Cells, rated for 800 charge cycles.

6061 Aluminum Alloy Frame

The Wildtan Mid-Drive M-5600 is solid, durable, and utilized to carry heavey stuff.

BBSHD Bafang Mid-Drive Motor

Bafang BBSHD 1000W Mid Drive Motor With 160 Nm of torque.

5 Inch LCD Smart Color Display

Addmotor 5 Inch LCD Smart Color Display with Bluetooth

Right Shift

SHIMANO ALIVIO Right Shift Lever with Shifting Sensor suited to quick shifting.

26" x 4.5" Fat Tire Electric Bike

Kenda Juggernaut Pro 26" x 4.5" Fat Tires.

Controller

Integrated Bafang 30A Controller.

Derailleur

The Wildtan Mid-Drive electric bike features a Shimano Alivio 9 Speed derailleur.

Disc Brake

Tektro Hydraulic Disc Brake HD-E500 With Motor Cutoff Sensor.Easier requires retinal tension braking.

Technical specs
+Electronics
Battery
48V*17.5Ah (840Wh) With Lithium Samsung 35GA Cells, rated for 800 charge cycles
Motor
1000W Bafang BBSHD Mid Drive Motor With 160 Nm of torque
Display
Addmotor 5-Inch LCD Smart Color Display with Bluetooth
Throttle
Right Hand Half Twist Throttle
Controller
Integrated Bafang 30A Controller
Lights
Front: Electric headlight TRENDO by Spanninga
Rear: Battery taillight by Spanninga
Integrated Wiring
Water Resistant Connectors And Wiring Harness
Charger
48V, 2.5 Amp smart charger
Pedal Assist
Intelligent 5-level pedal assist with an integrated speed sensor
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Air Inverted Fork with 120 mm of travel, Rebound / Air Pressure Adjustable / Manual Lock-out Adjustments
Brakes
Tektro Hydraulic Disc Brake HD-E500 With Motor Cutoff Sensor
Brake Rotors
Tektro 180 mm front and rear
Chain
KMC X9 Rust Resistant Chain
Tires
Kenda Juggernaut Pro 26" x 4.5" Fat Tires
Derailleur
SHIMANO ALIVIO 9-speed
Handlebar
Promax Aluminum, 700mm wide, 5° Angle Sweep Back
Pedal
Wellgo aluminum with reflectors, standard 9/16" x 20 TPI threading
Saddle
Exclusive Addmotor Well Padded Saddle
Seat Post
Promax Aluminum 320 mm x 28.6 mm
Seatpost Clamp
Promax Quick release
Stem
Promax Aluminum 100mm + Adjustable Angle (±60°)
Rims
26" Aluminum Double Wall, 36H, With Front Thru-axle Hub
Grips
Durable Imitation leather ergonomic grips
Spokes
12-gauge stainless steel
Freewheel
Exclusive Addmotor Stainless Steel 9-speed Freewheel, 11-32T
Kickstand
Side-mounted, adjustable lean angle
Crankset
36T Chainwheel, 170mm Bafang Forged Alloy
Shifter
SHIMANO ALIVIO Right Shift Lever with Shifting Sensor
Measurement

Suits riders in the height range of 5'10"-6 '5"

Max load capacity is 350 lbs

Wildtan M-5600 Mid-Drive Electric Bike 1000W measurements

1Total Length 78.5"

2Wheelbase 49.5"

3Minimum Seat Height 34"

4Maximum Seat Height 42.5"

5Seat Tube 19"

6Standover Height 34"

7Handlebar Height 44"

8Reach 16"

9Handlebar Width 28"

10Lowest Seat to Lowest Pedal 28.3"
