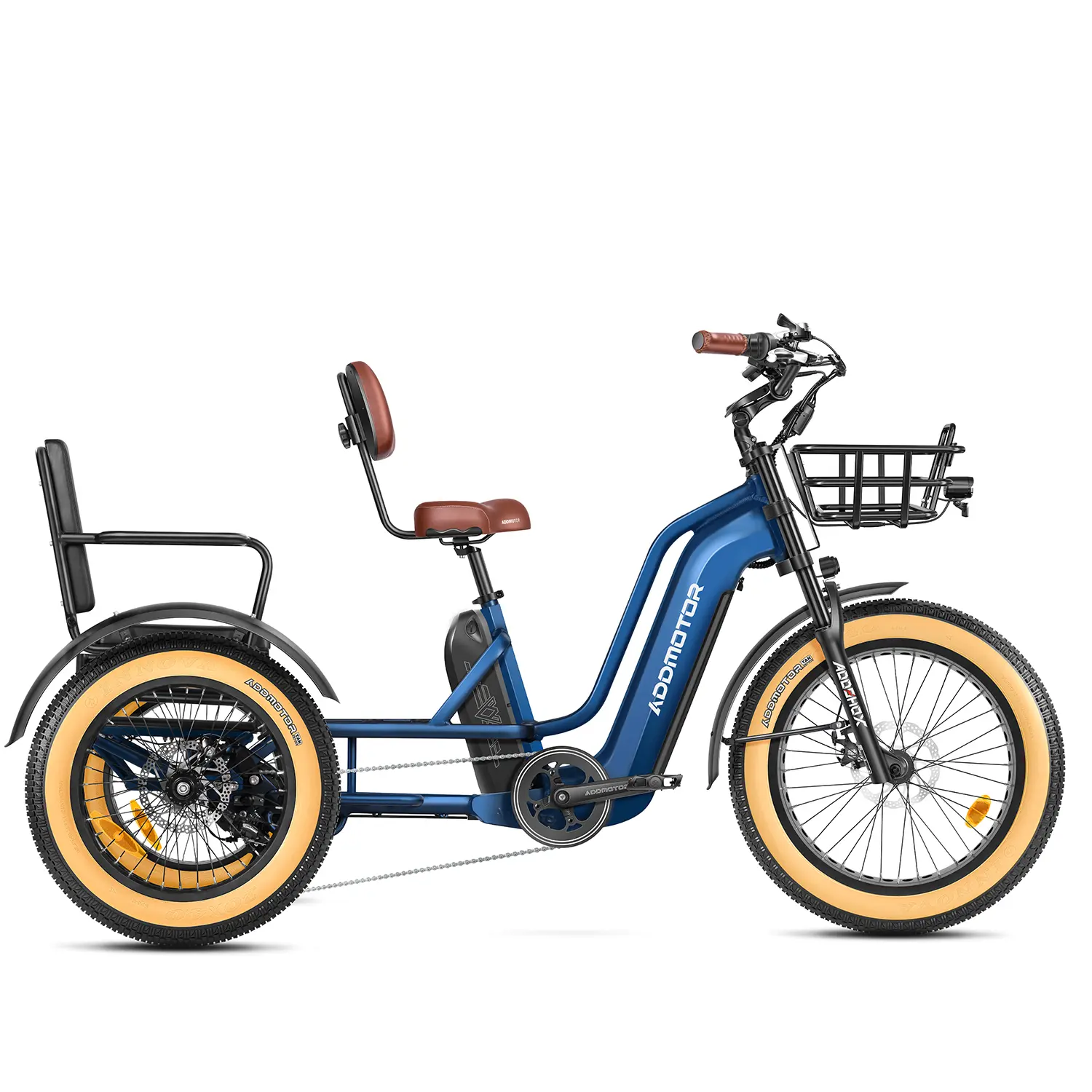

GREATTAN L

Dual-Battery Electric Trike with Passenger Seat
Price:
USD
$4099.00
$4999.00

    Please select the information you wantX
  • Color:
    Neptune Blue
    Army Green
  • Version:
    Single-Battery
    Dual-Battery
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*750W
Rear Mounted Motor
Up to 130+ Miles
Extended Riding Range (Batteries*2)
48V*20Ah
Samsung Cell Battery Pack
500 LBS
Payload Capacity
NOTE: We are currently NOT selling this product to customers with New York City shipping and billing addresses due to Local Law 39.

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

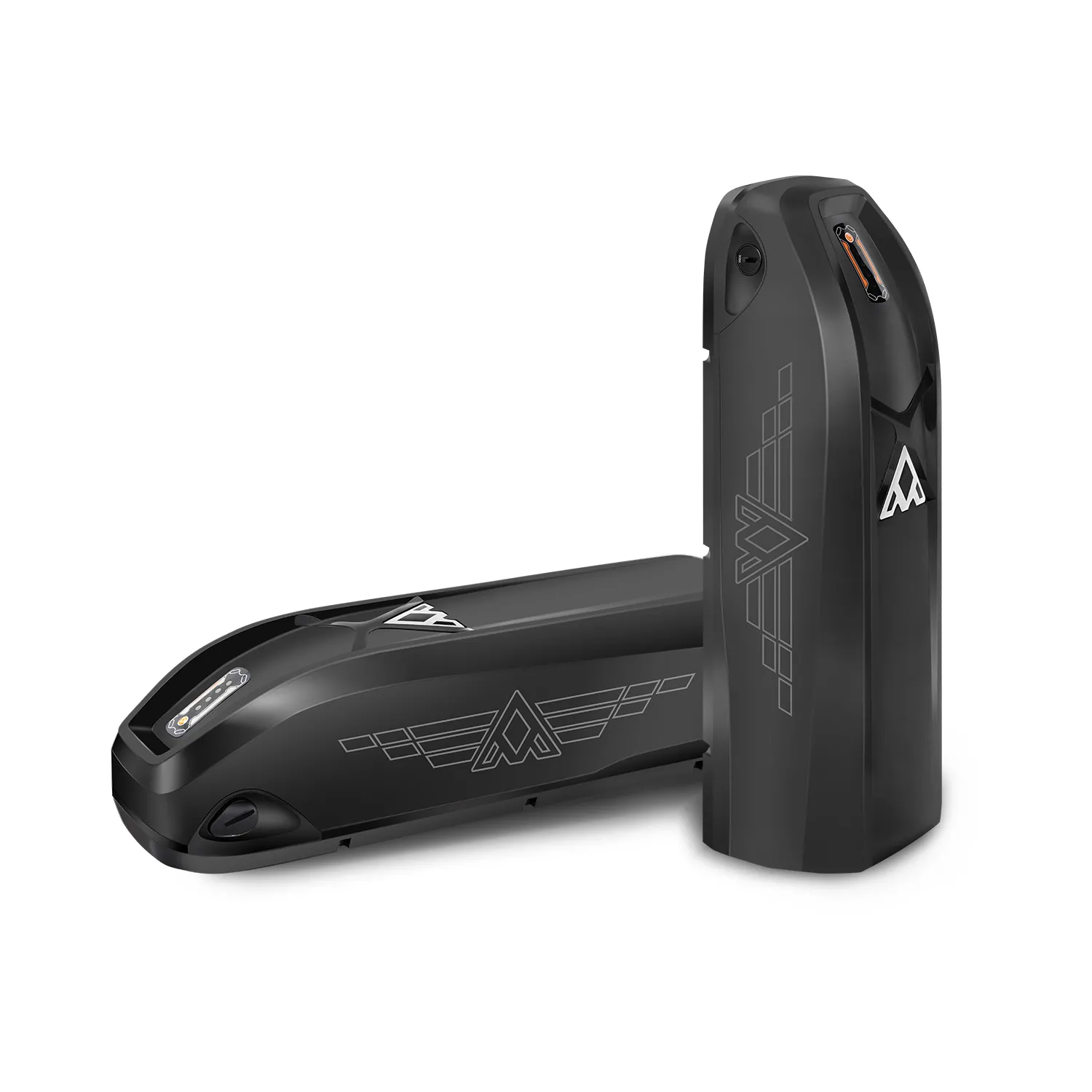

Single Built-in Battery: Removable

Dual-Battery Option: UL-Certified

GREATTAN L Trike has a 960Wh battery that is integrated into the frame, which makes it more durable and resistant to dirt. With PAS 1 riding mode, you can travel up to 65 miles on a single charge.
For family trips that cover long distances, a dual battery trike is an ideal option. The battery life depends on how fast and heavy you ride, so having a spare UL-certified battery can give you more confidence and convenience.
a woman is riding grandtan turbo e-trike
Extra Safety for Riding with Your Family

Compared to other typical tricycles, GREATTAN L has a lower passenger seat that balances the weight better and lowers the chance of tipping over.

trike battery icon
48V 20AH*2
Single- or Dual-Battery
trike Maximum speed Icon
20 MPH
Maximum Default Speed
PAS icon for e-trike
7-Level
Pedal Assist Mode
throttle icon
½ Half Twist
Throttle Control Mode
gears icon
7 Gears
Easier Climbs & Speeds
electric trike tires' icon
4-Inch Fat Tires
More Stable & Balance
1000W Mid-Drive Bafang Motor of grandtan turbo e-trike
Addmotor GREATTAN L Etrike features 20Ah Samsung Battery Cell
750W Brushless Rear Drive Motor

The powerful rear motor delivers up to 90Nm of torque for hill climbing and acceleration. Plus, the smart torque sensor matches your pedaling force and assistance, smoothing your ride.

Parking Brake System of Addmotor GREATTAN L Etrike
Parking Brake System

This secondary braking system helps to keep the trike from moving when it is parked. You can easily activate it by using the brake lever and button.

Speed differential of Addmotor GREATTAN L Etrike
Rear Speed Differential

The differential allows the rear wheels to adjust to different speeds and terrains, helping you reduce slippage and hopping on turns. You can enjoy a smooth and safe trike riding.

5 Inch LCD Display of Addmotor GREATTAN L Electric trike
Addmotor
EB 2.0 LCD Display

Provides riding information of battery usage, mileage, speed, lighting usage, PAS level, current motor wattage, and turning right/left. This makes your ride safer and easier to control.

5 Inch LCD Display of Addmotor GREATTAN L Electric trike
Addmotor
5-In-1 Taillight

This multi-functional taillight is integrated with the trike battery and EB 2.0 controller. The brake lights are automatically activated when the brakes are applied. Also, you can show different lights by using unique buttons on the handlebar.

Addmotor GREATTAN L Etrike Front Fork detail view
Double Shoulder Suspension Fork

Longer adjustable travel to help you overcome rough terrain.

Addmotor GREATTAN L Etrike Adjustable Stem detail view
Adjustable Stem with Lock

Helps to adjust the angle of the handlebars to your ride if necessary.

Addmotor GREATTAN L Etrike U-Shaped Handlebar detail view
Bigger & Wider U-Shaped Handlebar

Allows a more upright and relaxed posture and eases wrist strain.

Addmotor GREATTAN L Etrike Mid-Axis Torque Sensor detail view
Mid-Axis Torque Sensor

Improves the efficiency and range of the battery.

Addmotor GREATTAN L Etrike Passenger Seat detail view
Comfortable Passenger Seat

Enjoy riding with your loved ones anytime!

Addmotor GREATTAN L Etrike Rear Footrest Board & Footpegs detail view
Rear Footrest Board & Footpegs

For Easy Mounting & Dismounting

Addmotor GREATTAN L Etrike 3D Fenders detail view
Extra Long 3D Fenders

The wheels are equipped with aluminum fenders that keep water from splashing.

Addmotor GREATTAN L Etrike 4-Inch Fat Tires detail view
4-Inch Fat Tires

Provides excellent traction and stability to grip and roll over obstacles.

Addmotor GREATTAN L Etrike 180mm Brake Rotors detail view
Mechanical Disc 180mm Brake Rotors

All wheels comes with brake rotors that improve the braking speed and efficiency.

Addmotor GREATTAN L Strong Trike Frame view
Strong Trike Frame

The trike frame is sturdy and durable.

Technical specs
+Electronics
Motor
48V*750W Rear-Mounted Brushless Motor: 90 Nm Torque; 1400 Watts Peak Power
Battery
Available with Single or Dual-Battery Options: 48V 20Ah Battery Pack w/ Samsung Lithium-Ion Cells (Charging time: 8-10 hrs per full charge and rated For 1,000-1,500 charge cycles)
Display
Addmotor EB 2.0 LCD Display
Controller
Addmotor 25A Controller
Throttle
Right Hand Half Twist Throttle with Switch
Lights
Latest EB 2.0 front light and 5-in-1 taillight
USB Port
Integrated in Display, 5V, 1Amp
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Intelligent 7 Level Pedal Assist, Upgraded Torque Sensor
Charger
48V*2A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Max Range
Up to 130 Miles Per Charge with PAS 1(Estimated)
+Components
Frame
7020 Aluminum Alloy Frame
Front Fork
Double Shoulder Suspension Fork with an Extra Long Travel
Brake
Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors
180mm Front / 2*180mm Rear Rotors on 3 Wheels
Tires
24" X 4.0" Front & 20" X 4.0" Rear Fat Tires

Grips
Durable Ergonomic Design
Handlebar
Aluminum Handlebar, 725mm Wide, Sweep Back
Seat Post
Aluminum 270mm x 31.6mm
Saddle
Addmotor Exclusive Well Padded Saddle with Backrest
Seatpost Clamp
Quick Release
Rims
Aluminum Double Wall, 36H
Fenders
Aluminum Fenders, Front & Rear Included
Basket
Front: Removable, Aluminum
Derailleur
SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Shifter
SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
Freewheel
SHIMANO SIS Index 7-Speed, 14-32T
Chain
KMC Rust Resistant Chain
Measurement

GREATTAN L Trike for riders: 5'2"-6 '4"

Max load capacity is 500 lbs.

1Total Length 82.7"

2Total Width 36.6"

3Wheelbase 59.1"

4Maximum handlebar Height 48.6"

5Minimum handlebar Height 44.7"

6Standover Height 17.3"

7Seat Tube 17.9"

8Minimum Seat Height 30.7"

9Maximum Seat Height 38.6"

10Reach 15.9"

11Passenger Seat Bottom Storage Space 21.6" (L) x 14.9" (W) x 5.5" (H)

12Height of Rear Seat to Floor 23.6"

13Bike Weight 152.1LBS/69KG (Single Battery)
