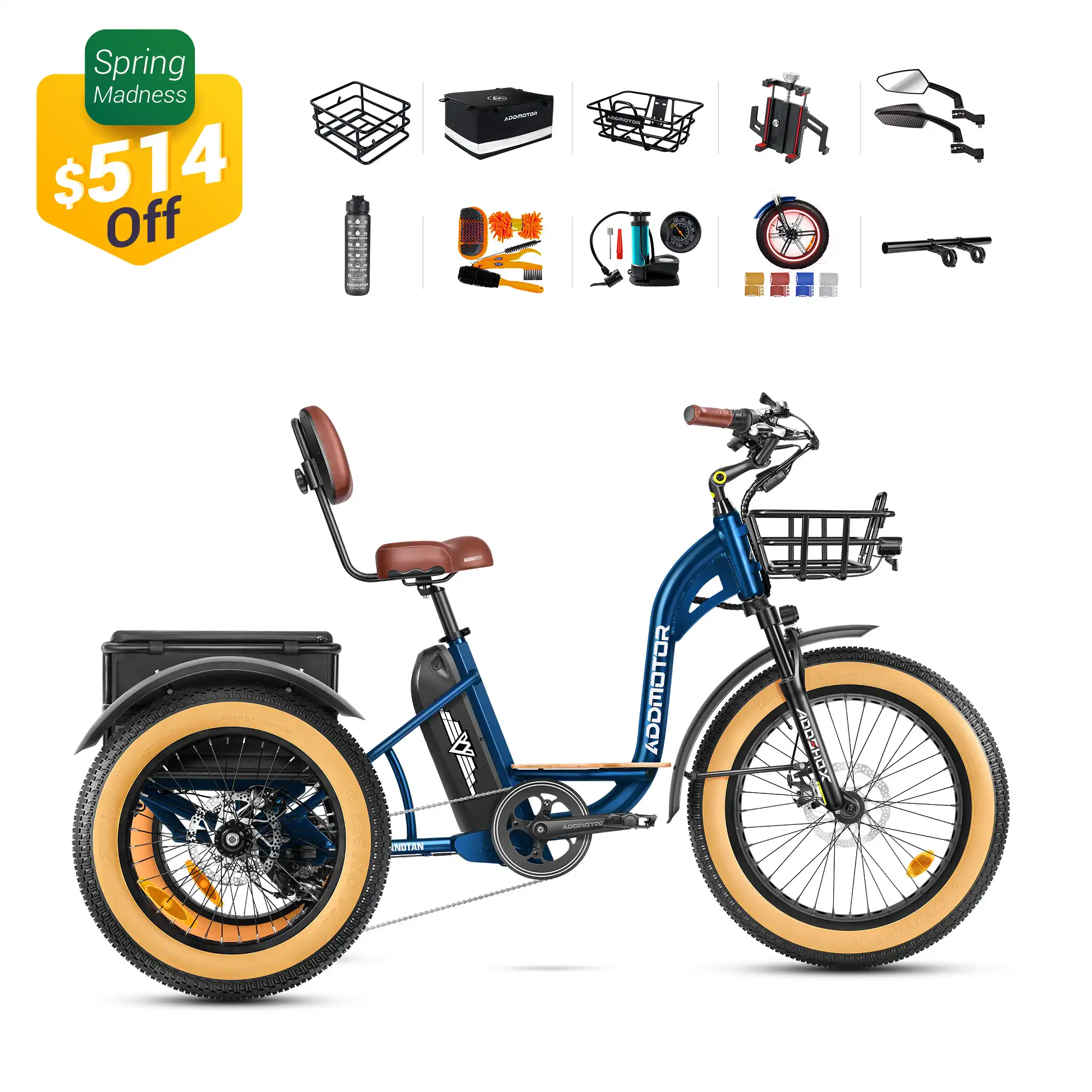

Grandtan II 2024

750W Rear Motor Electric Trike with Front Suspension
Price:
USD
$2699.00
$3099.00

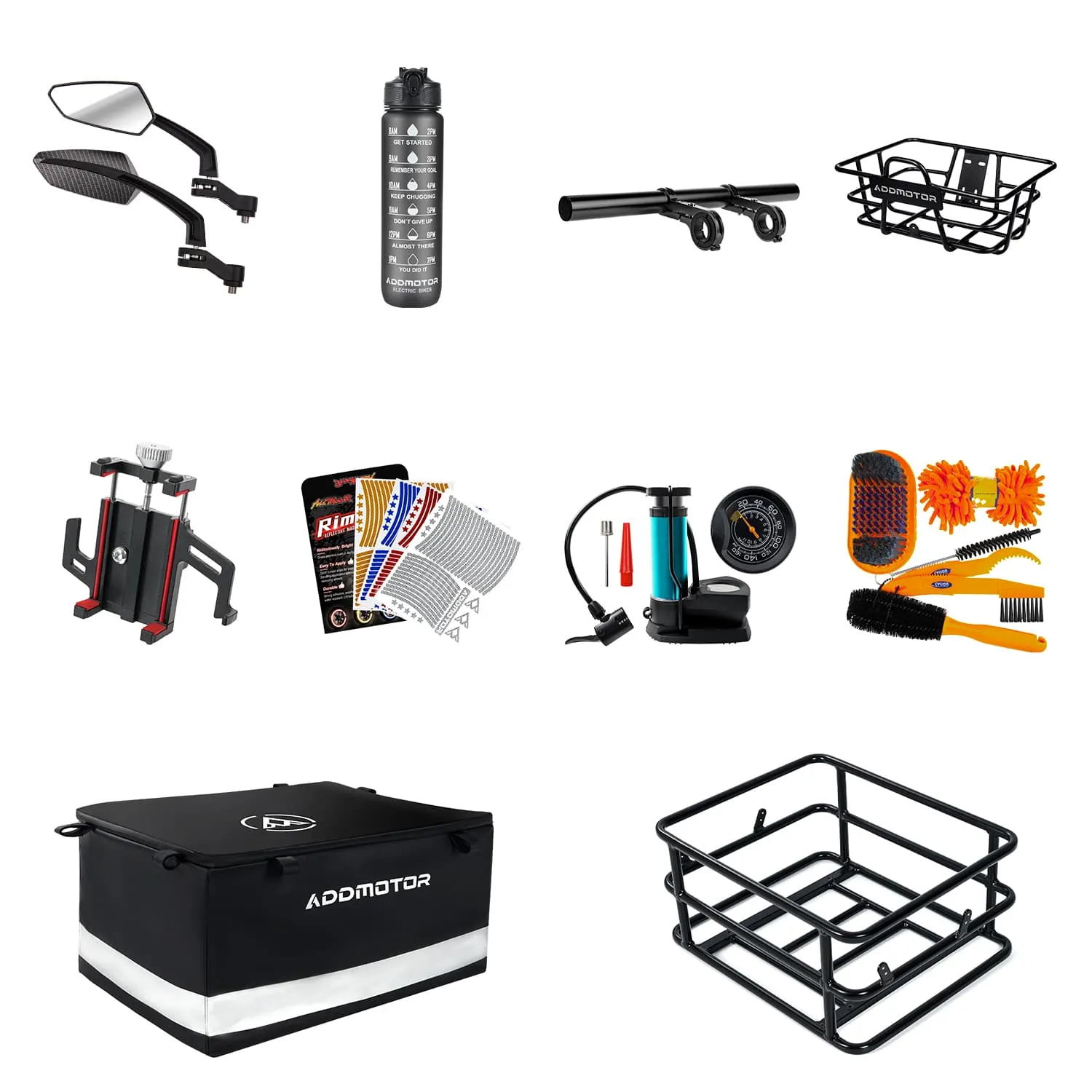

Free Accessories Included

  • Addmotor 1000 ML Plastic Water Bottle
    Addmotor 1000 ML Plastic Water Bottle

    25.99

    FREE
  • Addmotor Mirrors
    Addmotor Mirrors

    25.99

    FREE
  • Bike Cleaning Tools Kit
    Bike Cleaning Tools Kit

    18.99

    FREE
  • Bracket Holder Extender
    Bracket Holder Extender

    11.99

    FREE
  • Front Basket
    Front Basket

    69.00

    FREE
  • Mini Bike Pump
    Mini Bike Pump

    17.99

    FREE
  • Phone Holder Mount Pro
    Phone Holder Mount Pro

    29.99

    FREE

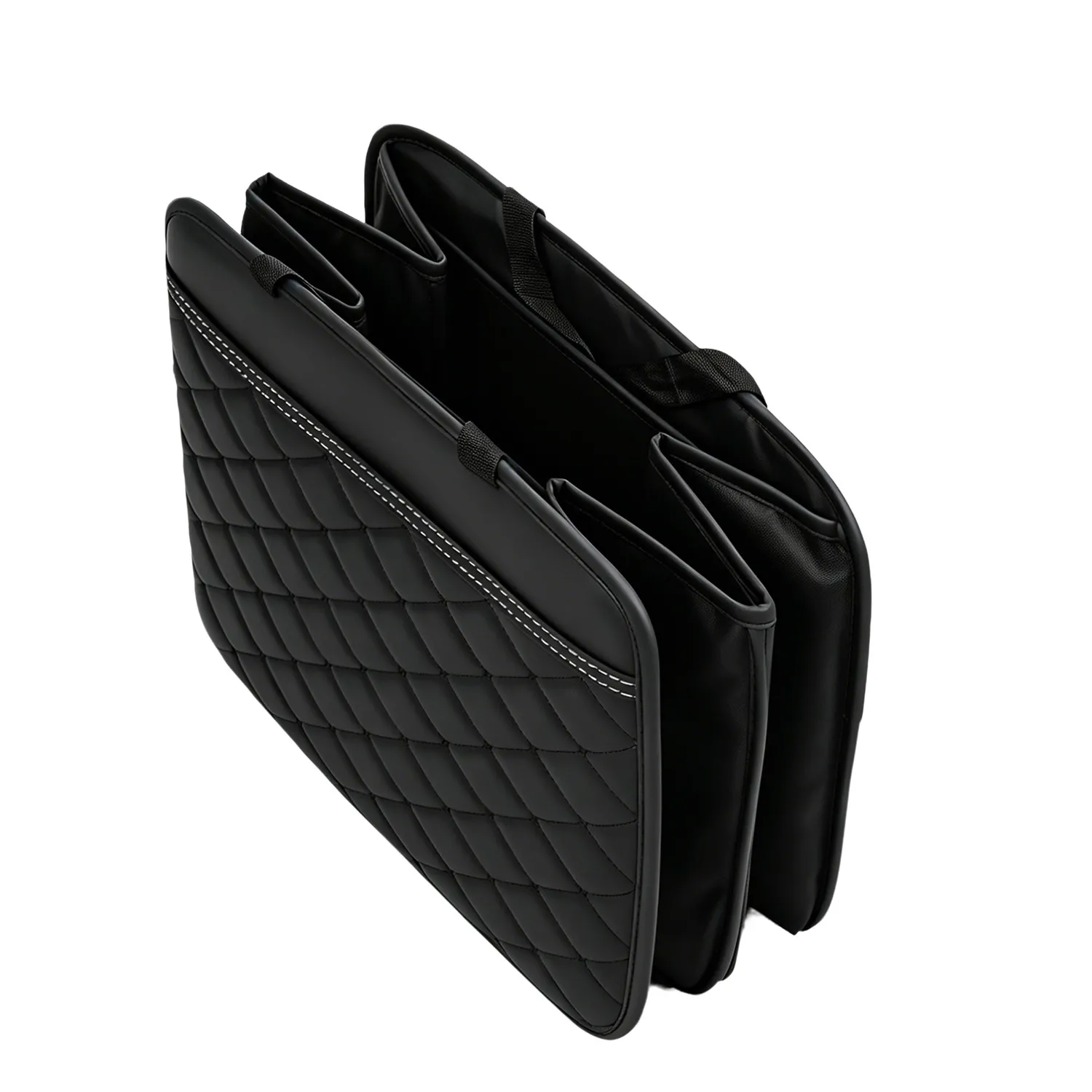

  • Rear Basket Storage Bag
    Rear Basket Storage Bag

    99.00

    FREE
  • Rear Cargo Basket
    Rear Cargo Basket

    99.00

    FREE
  • Rim Reflective Tape Stripes
    Rim Reflective Tape Stripes

    15.99

    FREE
    Please select the information you wantX
  • Color:
    Army Green
    Pearl White
    Red
    Starry Blue
    Neptune Blue
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*750W
Rear Mounted Motor
40-85 Miles
Extended Riding Range
UL-2271 Battery
UL Standard for Safety
350+100lbs
Payload Capacity
NOTE: We are currently NOT selling this product to customers with New York City shipping and billing addresses due to Local Law 39.

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Video Review Video Review
Video Review

fat tire electric trike for adventure riding
An eTrike,
Unlimited Adventures

Explore effortlessly with the Grandtan E-Trike. Its fat tires smoothly navigate various terrains for a seamless ride.

Make Cycling
Accessible & Fun

Grandtan paints your life with colors and offers more possibilities for exploration and discovery.

M-340 color display-white Grandtan Electric Trike
M-340 color display-cyan green Grandtan Electric Trike
M-340 color display-army green Grandtan Electric Trike
M-340 color display-Neptune Blue Grandtan Electric Trike
M-340 color display-red Grandtan Electric Trike
M-340 color display-starry blue Grandtan Electric Trike

M-340-color-display:Neptune blue, pearl white, army green, army green, starry sky blue, red dynamic display
trike battery icon
48V*20AH
EB 2.0 Battery w/ Samsung Cells
trike Maximum speed Icon
20 MPH
Maximum Default Speed
PAS icon for e-trike
7-Level
Pedal Assist Mode
throttle icon
½ Half Twist
Throttle Control Mode
gears icon
7 Gears
Easier Climbs & Speeds
electric trike tires' icon
4-Inch Fat Tires
More Stable & Balance

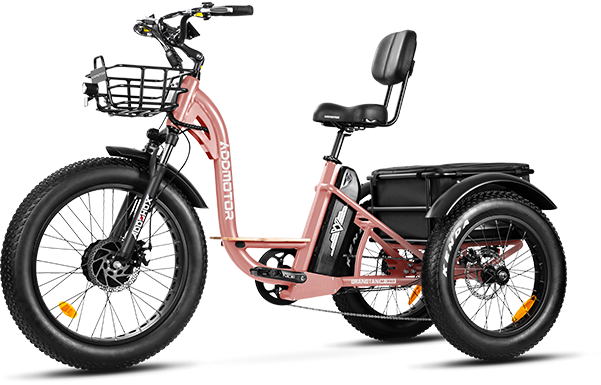

GRANDTAN M-340 E Trike
  GRANDTAN M-340 2023 GRANDTAN M-340 2024
Motor 750W Front-Mounted Motor 750W Rear-Mounted Motor
Battery 960Wh UL-Certified Battery w/ Samsung Cells 960Wh UL-Certified Battery w/ Samsung Cells
Sensor Cadence Sensor Torque Sensor
Max Motor Torque 80 Nm 90 Nm
Parking Brake
Trailer Tube
Differential
Horn Horn+Bell Horn+Bell
5 in 1 Taillight
Price $2,999 $3,099
Grandtan: Standard Wheels

Suits riders in the height range of 5'2"-6 '4", max load capacity up to 450 lbs.

grandtan e trike size
Plus: XL Wheels

Suits riders in the height range of 5'5"- 6'5", max load capacity up to 450 lbs.

grandtan plus e trike size
750W Rear-Mounted Motor for grandtan electric trike
Upgraded 750W Rear Motor

The rear-mounted motor makes the Grandtan much more stable and helps maintain a better balanced ride when climbing hills

Max Motor Torque: 90 Nm

Peak Motor Watts: 1,400W

feature of rear speed diferential of Grandtan e trike
Rear Differential: Turn Better

The differential allows the rear wheels to adjust to different speeds and terrains, helping you reduce slippage and hopping on turns. Grandtan better ensures you smooth and safe trike riding.

20Ah High Capacity Battery for grandtan electric trike
EB 2.0 Samsung Cell Battery

World’s first 48V*20Ah UL Recognized battery built w/ Samsung latest 50E 21700 cells. It offers a stable 30A output current capability and IPX6 water resistance to withstand heavy rain and showers for your safety.

Charging Time: 8-10 hrs

In Accordance with UL-2271

feature of rear speed diferential of arisetan II M-360 etrike
No Roll, No Slip

The new parking brake system can lock the wheels in place when activated. So you can stop or park anywhere with confidence.

GRANDTAN M-340 ESTIMATED RANGE & SPEED
PEDAL-ASSIST
PAS LEVEL SPEED RANGE
PAS 1 8 mph 85 miles
PAS 2 10 mph 75 miles
PAS 3 12 mph 65 miles
PAS 4 14 mph 55 miles
PAS 5 16 mph 50 miles
PAS 6 18 mph 45 miles
PAS 7 20 mph 40 miles

*Please note that these numbers are based on several different factors. The factors involved are: riding at a constant speed with no wind on smooth cement or asphalt roads and the rider's weight being approximately 165LBS.

Addmotor
          5 Inch LCD Display for grandtan m-340
Addmotor
EB 2.0 LCD Display

Provides key ride info with battery usage, mileage, speed, lights, PAS level, current motor wattage, and turning to improve your safety and control on the road.

feature of trailer tube of grandtan e trike 2024
Strong Trailer Tube for Extra Cargo

2024 Grandtan has an enhanced tube for effortless attachment of a trailer, significantly increasing the trike's cargo capacity. Just connect the trailer to the tube, and you're ready to carry larger loads with ease.

EB 2.0 LIGHT SYSTEM for grandtan m-340 e trike 2024
EB 2.0 Versatile Taillight

Grandtan trike has a 5-in-1 tail light, giving signals for driving mode, danger, flashing, braking, and turning directions. The braking signal lights up automatically when you use the brakes.

feature of torque sensor of grandtan m-340 e trike 2024
Smooth, Responsive Pedaling

With the mid-axis torque sensor, the Grandtan can better match your pedaling effort, boosting your efficiency and comfort for a more natural and responsive ride.

Mechanical Disc Brake system with 3 rotors of grandtan m-340 e trike 2024
Mechanical Disc Brake With Motor Cutoff Sensor

Full-wheel Tektro mechanical disc brake
system with an automatic motor cutoff
sensor allows you to slow or stop quickly.

180mm F / 2*180mm Rear Brake Rotors

grandtan m-340 e trike 2024 wooden footrest board
Eco-friendly & Carefully Crafted Footrest Wood Board

Rest your feet on the board comfortably while using throttle mode or waiting for a green light.

grandtan m-340 e trike 2024 step through frame
Swan-Inspired Step Through Frame

Swan style design makes the Grandtan more stylish, good-looking, and easier to get off and on.

grandtan 2024 adjustable saddle and backrest
Adjustable Backrest & Extra Wide Saddle for Comfort

The padded saddle stablizes your ride,and the backrest height can be customized to maximize your comfort.

grandtan m-340 e trike 2024 front suspension fork
Oil Spring Fork with Lockout: 80mm of Travel

Helps ensure a smoother and more effective shock absorption when rolling over the tough terrains.

Grandtan E-trike Rotatable U-shaped Handlebar
Rotatable U-shaped Handlebar

An rotatable stem allows you to adjust to the right angle for a comfortable upright position.

Addmotor Grandtan New Upgraded Differential
Upgraded Rear Differential

Improves the trike's balance and stability, making the ride safer and more enjoyable.

Curved fenders for Grandtan electric trike
3D Fenders Keep Dirt and Sand Away

Addmotor unqiue 3D fenders can protect your body and e-trike from mud, sand and more.

Dual Rear Brake Rotors for grandtan etrike
Three Wheel Rear Brake Rotors

The brakes system ensures safe braking at high speeds, meanwhile triggering the automatic motor cutoff and rear brake light.

Grandtan Waterproof Storage Bag
20.5"X16"X9.5" Waterproof Storage Bag with Refective Liner Stripe

Grandtan comes with a waterproof bag freebie to store your item and safeguard your nocturnal ride.

Addmotor grandtan eb 2.0 headlight
Integrated EB 2.0 Headlight



Technical specs
+Electronics
Motor
48V*750W Rear-Mounted Brushless Motor: 90 Nm Torque; 1400 Watts Peak Power
Battery
Addmotor EB 2.0 48V*20Ah (960Wh) Battery w/ Samsung Lithium-Ion Cells | Charging Time: 8-10 Hrs; Rated For 1,000-1,500 Charge Cycles
Display
Addmotor EB 2.0 LCD Display
Controller
Addmotor 25A Controller
Throttle
Right Hand Half Twist Throttle with Switch
Lights
Latest EB 2.0 front light and 5-in-1 taillight
USB Port
Integrated in Display, 5V, 1Amp
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Intelligent 7 Level Pedal Assist, Upgraded Torque Sensor
Charger
48V*2A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Max Range
Up to 85 Miles Per Charge with PAS 1(Estimated)
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Oil Spring Fork with 80mm of Travel
Brake
Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors
180mm Front / 2*180mm Rear Rotors on 3 Wheels
Stem
Aluminum 100mm + Adjustable Angle (90°)
Tires
24" X 4.0" Front & 20" X 4.0" Rear Fat Tires

Grips
Durable Ergonomic Design
Handlebar
Black Aluminum, 630mm Wide, Sweep Back
Seat Post
Aluminum 270mm x 31.6mm
Saddle
Addmotor Exclusive Well Padded Saddle with Backrest
Seatpost Clamp
Quick Release
Rims
Aluminum Double Wall, 36H
Spokes
Stainless Steel, F: 12-Gauge, R: 13-Gauge
Pedals
Wellgo Aluminum with Reflectors, Standard 9/16'' x 20 TPI Threading
Fenders
Aluminum Fenders, Front & Rear Included
Basket
Front: Removable, Aluminum
Rear: Removable, Aluminum, 100lbs Carrying Capacity
Crankset
Prowheel Ounce, 48T Chainring, 170mm Crank Length
Derailleur
SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Shifter
SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
Freewheel
SHIMANO SIS Index 7-Speed, 14-32T
Chain
KMC Rust Resistant Chain
Measurement

Grandtan Trike for riders: 5'2"-6 '4"

Max load capacity is 450 lbs.

1Total Length 77"

2Total Width 32.3"

3Wheelbase 49"

4Maximum handlebar Height 48"

5Minimum handlebar Height 43"

6Standover Height 17.5"

7Seat Tube 19"

8Minimum Seat Height 32.5"

9Maximum Seat Height 39"

10Reach 13"

11Rear Basket 48L, 20.5" x 16" x 9.5"

12Battery 9.5LBS/4.3KG

13Bike Weight 118LBS/53.5KG

Video Review

x

0
votes
Answer:
Hi, please contact our service team via email at support@addmotor.com for a replacement user manual for the Grandtan M-340.
By Manage on April 28, 2024
0
votes
Answer:
Sorry, it doesn't look like the Grandtan's handlebar stem will fit this.
By Manage on March 12, 2024
0
votes
Answer:
Hi, we have no plans to equip the Grandtan trike with a parking brake just yet.
By Manage on August 15, 2023
0
votes
Answer:
Our etrikes have completed 85% of the assembly. All you need to assemble is the front wheel, front fender, pedals, and handlebar. Hope this helps.
By Manage on June 12, 2023
0
votes
Answer:
Hi, thanks for your question. Now we don't have bike/trike lock in our website, but you can search lock for trike in Amazon or other shopping websites... see more
Hi, thanks for your question. Now we don't have bike/trike lock in our website, but you can search lock for trike in Amazon or other shopping websites. There has many types of lock that are available with the etrike, such as foldy lock and Bike U Lock. see less
By Manage on April 15, 2023
0
votes
Answer:
I wouldn't ride it fast on rough terrain.  These bikes ride high, and will flip easy on a slight bump.  Go slow, or add some heavy... see more
I wouldn't ride it fast on rough terrain.  These bikes ride high, and will flip easy on a slight bump.  Go slow, or add some heavy bags of weeds into the trailer, to hold you down. see less
By Addmotor Customer on April 14, 2023
0
votes
Answer:
Of course! This fat tire electric tricycle can be ridden in all terrains.
By Manage on March 17, 2023
0
votes
Answer:
Hi, the max weight capacity of addmotor m340 is 450lbs.
By Manage on March 15, 2023
0
votes
Answer:
Sure, you can choose the mode when you ride the e-trike, and you can also ride it without using battery.
By Manage on March 15, 2023
0
votes
Answer:
Hi, the answer is no, you don't need to have a driver license for this fat tire electric trike.
By Manage on March 15, 2023
0
votes
Answer:
Sorry, this electric fat trike are not available to fold up to transport.
By Manage on March 15, 2023
1
votes
Answer:
The pedal assist didn’t work the way I expected.  If you are going less than the speed for that pedal assist level, the motor will come on... see more
The pedal assist didn’t work the way I expected.  If you are going less than the speed for that pedal assist level, the motor will come on.  It feels like the further I am below the speed, the more power the motor applies.  So basically it makes you go th see less
By Addmotor Customer on March 16, 2023
0
votes
Answer:
We offer 1 year warranty to our adult electric tricycles.
By Manage on March 09, 2023
0
votes
Answer:
Hi, it's a 3 wheel electric trike, so it will more stable than 2 wheels, but it takes practice to get used to turning. Get a helmet for your falls.
By Manage on March 09, 2023
0
votes
Answer:
The weight of this Grandtan M-340 electric trike is around 127lbs
By Manage on March 09, 2023
0
votes
Answer:
Don't worry, our 48V*20Ah battery pack is UL-certified, it is pretty safe.
By Manage on March 09, 2023
0
votes
Answer:
Hi, we use Samsung battery cells
By Manage on March 09, 2023
0
votes
Answer:
Hi,  don't worry, this fat tire electric tricycle is anti-slip.
By Manage on March 07, 2023
1
votes
Answer:
Kindly provide your email to us, and we'll send you a user manual.
By Manage on March 07, 2023
0
votes
Answer:
Hi, don't worry, the replacement etrike battery is available: $699  In stock and ready to ship
https://www.addmotor.com/products/20ah
By Manage on March 07, 2023

Post your question

Your question might be answered by sellers,manufacturers,or customers who bought this product.

Customer Reviews
Average rating: 4.9 based on 142 reviews
Share your thoughts with other customers
Write a review
Product reviews can be carried out after the member login, please click here to login
 Grandtan II 2024
Grandtan II 2024
$2699.00
Buy Now
GREATTAN
Up to 160+ Miles
close popup
