GRANDTAN TURBO

1000W Mid-Drive Electric Trike
Price:
$3599.00
$3899.00

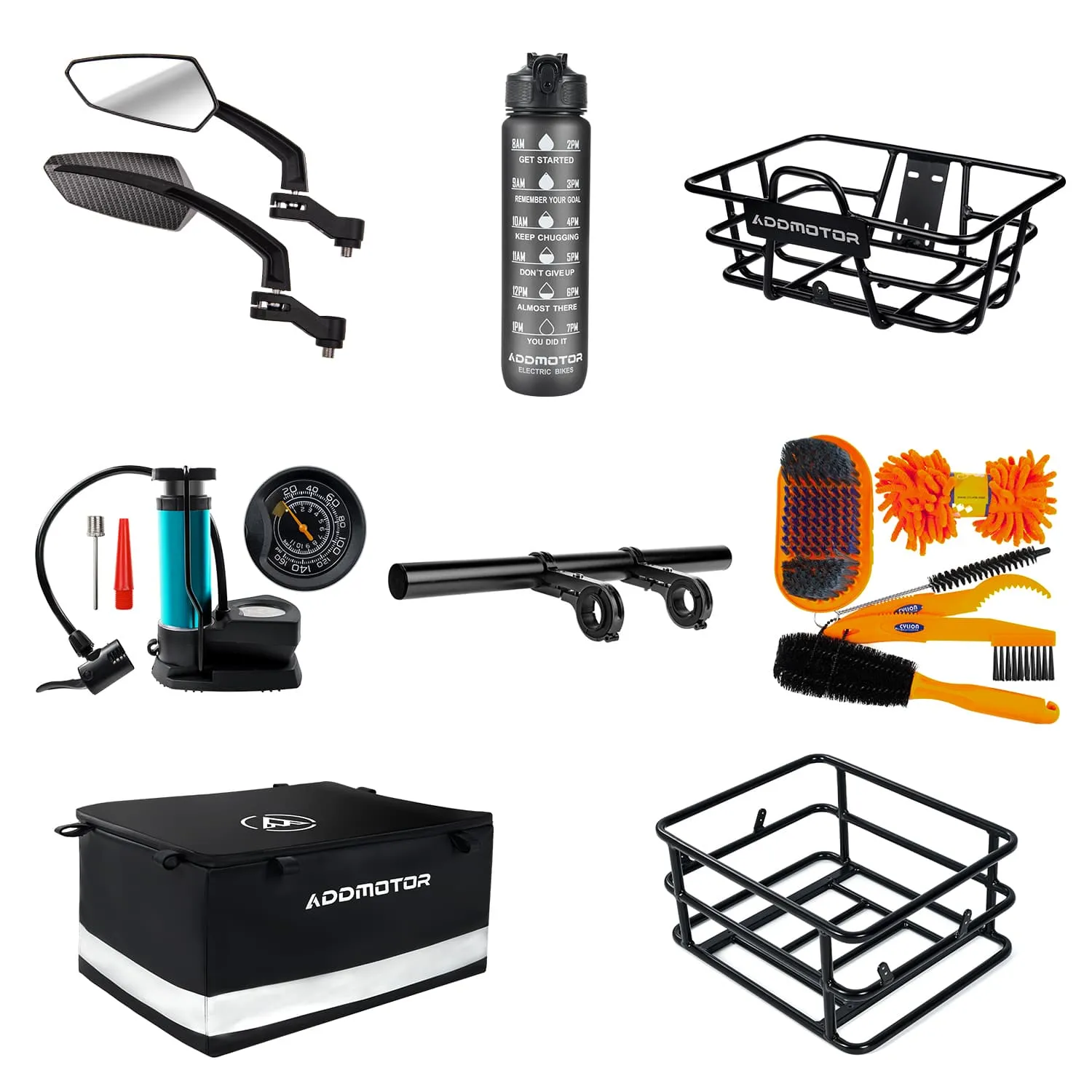

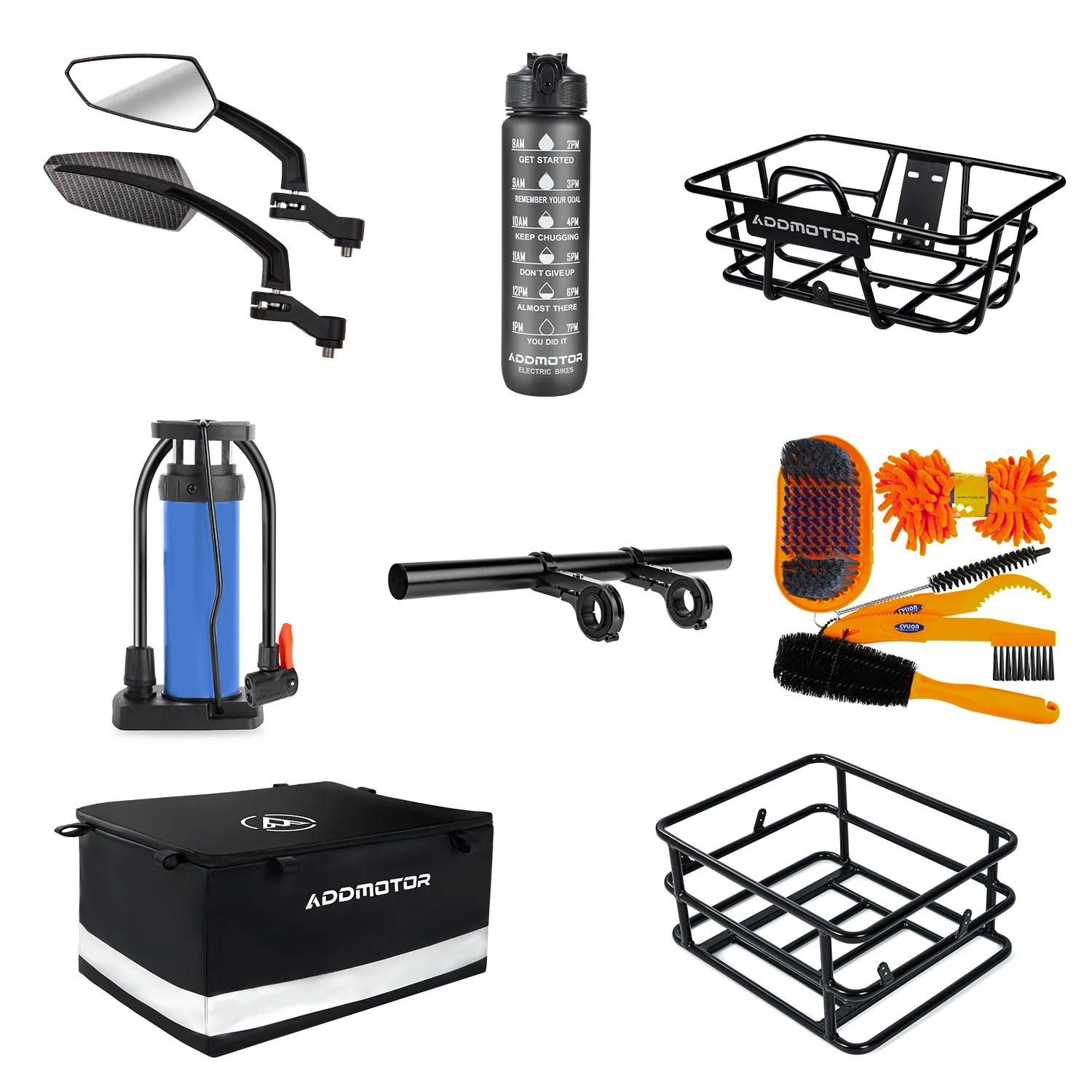

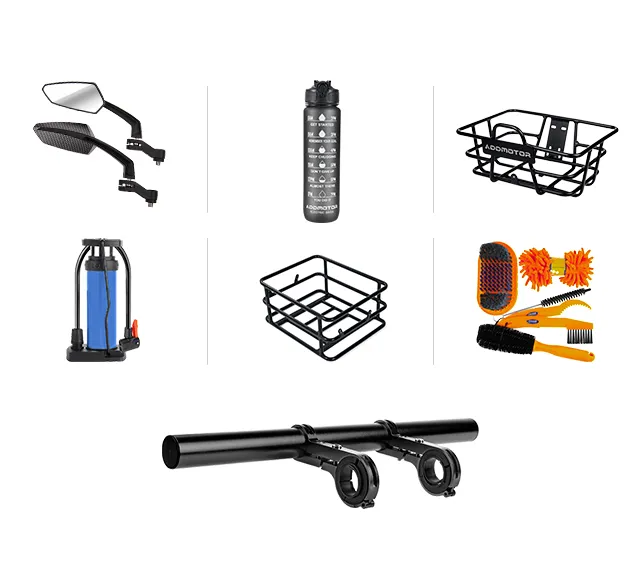

Free Accessories Included

  • Addmotor 1000 ML Plastic Water Bottle
    Addmotor 1000 ML Plastic Water Bottle

    25.99

    FREE
  • Addmotor Mirrors
    Addmotor Mirrors

    25.99

    FREE
  • Bike Cleaning Tools Kit
    Bike Cleaning Tools Kit

    18.99

    FREE
  • Bracket Holder Extender
    Bracket Holder Extender

    11.99

    FREE
  • Front Basket
    Front Basket

    69.00

    FREE
  • Mini Bike Pump
    Mini Bike Pump

    17.99

    FREE
  • Rear Basket Storage Bag
    Rear Basket Storage Bag

    99.00

    FREE
  • Rear Cargo Basket
    Rear Cargo Basket

    99.00

    FREE
    Please select the information you wantX
  • Color:
    Starry Blue
    Neptune Blue
    Army Green
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*1000W
Bafang Mid-Drive Motor
Speed Differential
50% Increased Cornering Stability
48V*20Ah
UL-Recognized Battery for 85+ Mile Range
350+100lbs
Payload Capacity
NOTE: We are currently NOT selling this product to customers with New York City shipping and billing addresses due to Local Law 39.

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

a woman is riding grandtan turbo e-trike
Powerful but Stable

Grandtan Turbo is a powerful, versatile e tricycle. The 1000W motor gives it a powerful drive while the low frame design ensures agility and stability. It is ideal for off-road riding and hunting. You can enjoy as much as you want.

icon of 48V*20AH Lithium Battery Samsung Cells
48V*20AH
Lithium Battery Samsung Cells
icon of riding range
85+ MILES (PAS 1)
Miles Per Charge (Estimate)
icon of 1,000W POWERFUL MOTOR 48V*1,000W Mid-Drive MOTOR
1,000W POWERFUL MOTOR
48V*1,000W Mid-Drive MOTOR
icon of PARKING BRAKE
PARKING BRAKE
Easy To Stop Etrike On Incline
icon of STEP-THRU FRAME
STEP-THRU FRAME
Easy To Get On And Off
icon of DIFFERENTIAL
DIFFERENTIAL
More Smooth And Safe When You Turn
1000W Mid-Drive Bafang Motor of grandtan turbo e-trike
1,000W Mid-Drive
Bafang Motor

Grandtan Turbo has 1,000W mid-drive motor for 32% more stability. It can reach up to 20mph speed and 160 NM torque, which gives it a 50% advantage in hill climbing ability. It is a strong and versatile e trike for off-road riding with 1,500W peak power.

a woman is riding grandtan turbo e-trike
Better Control and Stability

Enjoy the peace of mind that comes with great parking brakes, even when you park on a slope.

Parking Brake of grandtan turbo e-trike
Parking Brake
in Etrike

Instant Parking for safety and security! The parking
brake keeps the wheels from rolling even on an
incline or a slippery surface. By simply squeezing
the handbrake and pressing a button, you can easily
stop your etrike when parking on an incline.

Differential of grandtan turbo e-trike
Differential

Grandtan Turbo features a differential that allows
each rear wheel to RESPECTIVELY rotate at varying
speeds and directions. The smoothness of turning is
enhanced by 50% through the differential and
prevent skidding as well.

grandtan turbo e-trike helps you to explore the city
Enjoying a Fun Way
To Explore Your City

Grandtan Turbo is the most powerful and
versatile etrike. With 1,000W motor, parking
brakes, and differential, you have better
control of your ride. It can help you explore
new trails, go on long rides, or just commute
to work or the grocery store.

CNC laser Cutting Head Tube of grandtan turbo e-trike
CNC laser Cutting
Head Tube

The head tube is unanimously integrated and
molded with laser CNC machine to the exact
specifications required for the etrike's frame.
Distinguished from the welding technology
on the market, laser cutting can make
the frame more strong, solid, and super.

Bafang LCD Display of grandtan turbo e-trike
Bafang LCD Display

Bafang LCD Display on Grandtan Turbo etrike
provides all the information you need to stay
informed and in control while riding. The display
shows a range of important data, including speed, battery life, distance traveled, and more.

High-quality LIGHTING SYSTEM of grandtan turbo e-trike
High-quality
LIGHTING SYSTEM

The Lighting System provides exceptional
visibility and safety while riding. The system
features headlight and taillight that are
bright and long-lasting, ensuring that
you can see the road ahead and be
seen by other drivers and pedestrians.

Triplet Tektro Mechanical Disc Brakes of grandtan turbo e-trike
Triplet Tektro
Mechanical Disc Brakes

This braking system provides strong and
accurate stopping power, even in wet or
slippery conditions, also includes a
sensor that disable the motor
when the brake is engaged.

180mm F / 2*180mm Rear Brake Rotors

Grandtan turbo mid-drive electric trike has a rear basket

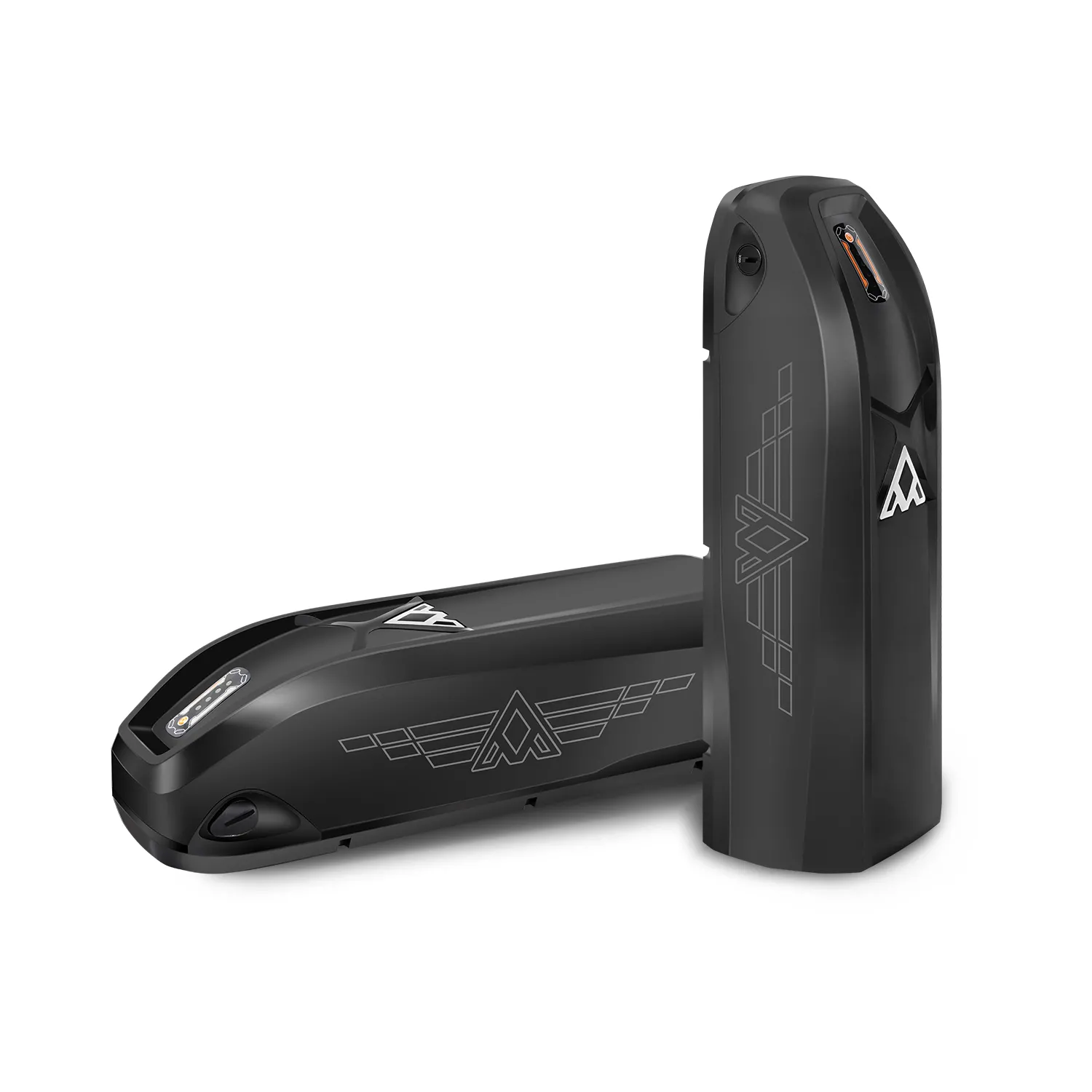

20Ah battery of grandtan turbo e-trike
48V*20Ah UL-Certified Battery

Provide high amount of power for your adventure with safety and long-range riding.

control button of grandtan turbo e-trike
Uneven Control Button

To control lighting, pedal assist level and anything you need by an uneven button on the handlebar.

fenders of grandtan turbo e-trike
Front and Rear Fenders

Made of lightweight and durable aluminium, to protect from splashes of water, mud, and debris while riding in wet or dirty conditions.

rear basket and bag of grandtan turbo e-trike
Rear Basket with Large Waterproof Storage Bag

A large waterproof storage bag to get all your belongings on the etrike.

footrest of grandtan turbo e-trike
Footrest wood board

Built with care about your comfort, relax your feet while stopping or waiting for a traffic light.

step-thru frame of grandtan turbo e-trike
Step-Thru Frame

Special frame design with swan-like bionic, ease for you to get on and off the etrike.

U-shaped handlebar of grandtan turbo e-trike
U-Shaped Design Handlebar

Provides a comfortable and ergonomic grip for you, allowing for greater control and stability while riding.

saddle of grandtan turbo e-trike
Wide saddle with adjustable backrest

The well padded saddle reduces pressure points and distributing weight evenly. Backrest attached to provide additional support for your back.

fat tires of grandtan turbo e-trike
High-Quality Fat Tires

4-inch fat tires provide greater traction and stability on uneven surfaces, including sand, snow, mud and rocky terrain.

front basket of grandtan turbo e-trike
Front Sturdy Basket

The front location of the basket makes it easy to access while riding, and the sturdy structure to carry items with ease.

Technical specs
+Electronics
Motor
Bafang 48V*1000W Mid-Drive Motor: 160 Nm Torque; 1,500W Peak Watts
Battery
Samsung Cell 48V*20Ah (960Wh) Battery Pack, Charging Time: 8-10 Hours, Rated For 1,000-1,500 Charge Cycles
Display
Bafang LCD Display
Controller
Addmotor 25A Controller
Throttle
Right Hand Half Twist Throttle with Switch
Lights
Front: Electric Headlight TRENDO by Spanninga
Rear: Electric Taillight & Braking Light SOLO by Spanninga
USB Port
Integrated in Display, 5V, 1Amp
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Intelligent 5 Level Pedal Assist, Torque Sensor
Charger
48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Range
85+ Miles Per Charge with PAS 1(Estimate)
+Components
Frame
6061 Aluminum Alloy Step Through Frame
Front Fork
Oil Spring Fork with 80mm of Travel
Brake
Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors
180mm F / 2*180mm Rear Rotors
Stem
Aluminum 100mm + Adjustable Angle(90°)
Tires
24" X 4.0" F/ 20" X 4.0" R Fat Tires
Grips
Durable Ergonomic Design
Handlebar
Black Aluminum, 630mm Wide, Sweep Back
Seat Post
Aluminum 270mm x 31.8mm
Saddle
Addmotor Exclusive Well Padded Saddle with Backrest
Seatpost Clamp
Quick Release
Rims
Aluminum Double Wall, 36H
Spokes
Stainless Steel, F: 12-Gauge, R: 13-Gauge
Pedals
Wellgo Aluminum with Reflectors, Standard 9/16'' x 20 TPI Threading
Fenders
Aluminum, Front and Rear Fenders Included
Basket
Front: Removable, Aluminum
Rear: Removable, Aluminum, 100lbs Carrying Capacity
Crankset
Prowheel Ounce, 48T Chainring, 170mm Crank Length
Derailleur
SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Shifter
SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
Freewheel
SHIMANO SIS Index 7-Speed, 14-32T
Chain
KMC Rust Resistant Chain
Measurement

Suits riders in the height range of 5'2"-6 '4"

Max load capacity is 350+100 lbs

Measurement of Grandtan Turbo electric trike

1Total Length 77.8''

2Total Width 33.5"

3Wheelbase 51"

4Maximum handlebar Height 48"

5Minimum handlebar Height 43"

6Standover Height 17.5"

7Seat Tube 19"

8Minimum Seat Height 32.5"

9Maximum Seat Height 39"

10Reach 13"

11Rear Basket 48L, 20.5" x 16" x 9.5"

12Bike Weight 118LBS/53.5KG

0
votes
Answer:
Please contact our pre-sales service team: sales@addmotor.com.
By Manage on August 12, 2024
0
votes
Answer:
Hi, GRANDTAN TURBO Trike can only fit one battery pack. But you can contact our sales team, sales@addmotor.com, to purchase an extra battery as a re... see more
Hi, GRANDTAN TURBO Trike can only fit one battery pack. But you can contact our sales team, sales@addmotor.com, to purchase an extra battery as a replacement.. see less
By Manage on April 10, 2024
0
votes
Answer:
Yes, Grandtan Turbo Trikes use Bafang M620 motors.
By Manage on January 22, 2024
1
votes
Answer:
I installed these on the baskets of my M-340T:
https://amz.run/76f6
They include a horn and are rechargeable. ◄Dave►
By Addmotor Customer on September 17, 2023
1
votes
Answer:
I too had an ankle injury and felt I needed the security of the 3rd wheel.  It's all about feeling comfortable safe  and enjoying ... see more
I too had an ankle injury and felt I needed the security of the 3rd wheel.  It's all about feeling comfortable safe  and enjoying the ride.  This etrike does that.  My foot slipped once but I'm sitting on a three wheeled triangle. No panic, no concern.  I see less
By Addmotor Customer on September 10, 2023
1
votes
Answer:
I love my bike i will send ya a video as soon they send me one
By Addmotor Customer on September 24, 2023
2
votes
Answer:
IAW Federal law all class 2 ebikes limit the max speed by throttle to 20 mph.  However, you can exceed that by using pedal power.
By Addmotor Customer on September 02, 2023
0
votes
Answer:
Amazon sells a rechargeable bike horn for under $13.  You can probably plug it into your display to charge.  Comes with different
By Addmotor Customer on August 26, 2023
0
votes
Answer:
Hi, the rider weight capacity is 350lbs.
By Manage on August 24, 2023
0
votes
Answer:
No. This version of the GRANDTAN series has only the bell.
By Addmotor Customer on August 09, 2023
1
votes
Answer:
Response cut off.  The answer to your question is no.
By Addmotor Customer on July 26, 2023
0
votes
Answer:
Hi, it is recommended for bike service, checked by a qualified bike mechanic, after 100 miles of riding. And about the parts' maintenance, you could c... see more
Hi, it is recommended for bike service, checked by a qualified bike mechanic, after 100 miles of riding. And about the parts' maintenance, you could check our warranty: https://www.addmotor.com/pages/warranty, or get more support at support@addmotor.com. see less
By Manage on July 11, 2023
0
votes
Answer:
Yes, they are different. If you prefer leather Grips, you can buy them extra.
By Manage on July 11, 2023
0
votes
Answer:
Federal law restricts all class 2 ebikes/etrikes to 20 mph utilizing motor power only, but does not restict higher speeds if achieved by pedaling.&nbs... see more
Federal law restricts all class 2 ebikes/etrikes to 20 mph utilizing motor power only, but does not restict higher speeds if achieved by pedaling.  It should be noted state and local regulations could override Federal.  Check your local laws. see less
By Addmotor Customer on June 30, 2023
0
votes
Answer:
I should add password activation is optional which can be turned on when customizing your configuration.
By Addmotor Customer on July 02, 2023
0
votes
Answer:
Sorry for that, Grandtan M-340T can only be ridden by one person. If you would like to have an etrike for 2 adults, we strongly recommand Soletri M-36... see more
Sorry for that, Grandtan M-340T can only be ridden by one person. If you would like to have an etrike for 2 adults, we strongly recommand Soletri M-366X and Herotri M-365X. Please have a look on it, it will meet your needs. Hope this helps. see less
By Manage on June 25, 2023
