Your position: Home / ELECTRIC BIKES / TRIKE

TRIKETAN M-330 MINI

Etrike
Price:
USD
$2799.00
$3499.00

    Please select the information you wantX
  • Color:
    Candy Red
    Black
    Yellow
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*750W
Front-Mounted Motor
Up to 85+
Miles per Charge(Estimate)
48V*20Ah
Samsung Lithium-ion Battery
350lbs+100lbs
Payload Capacity

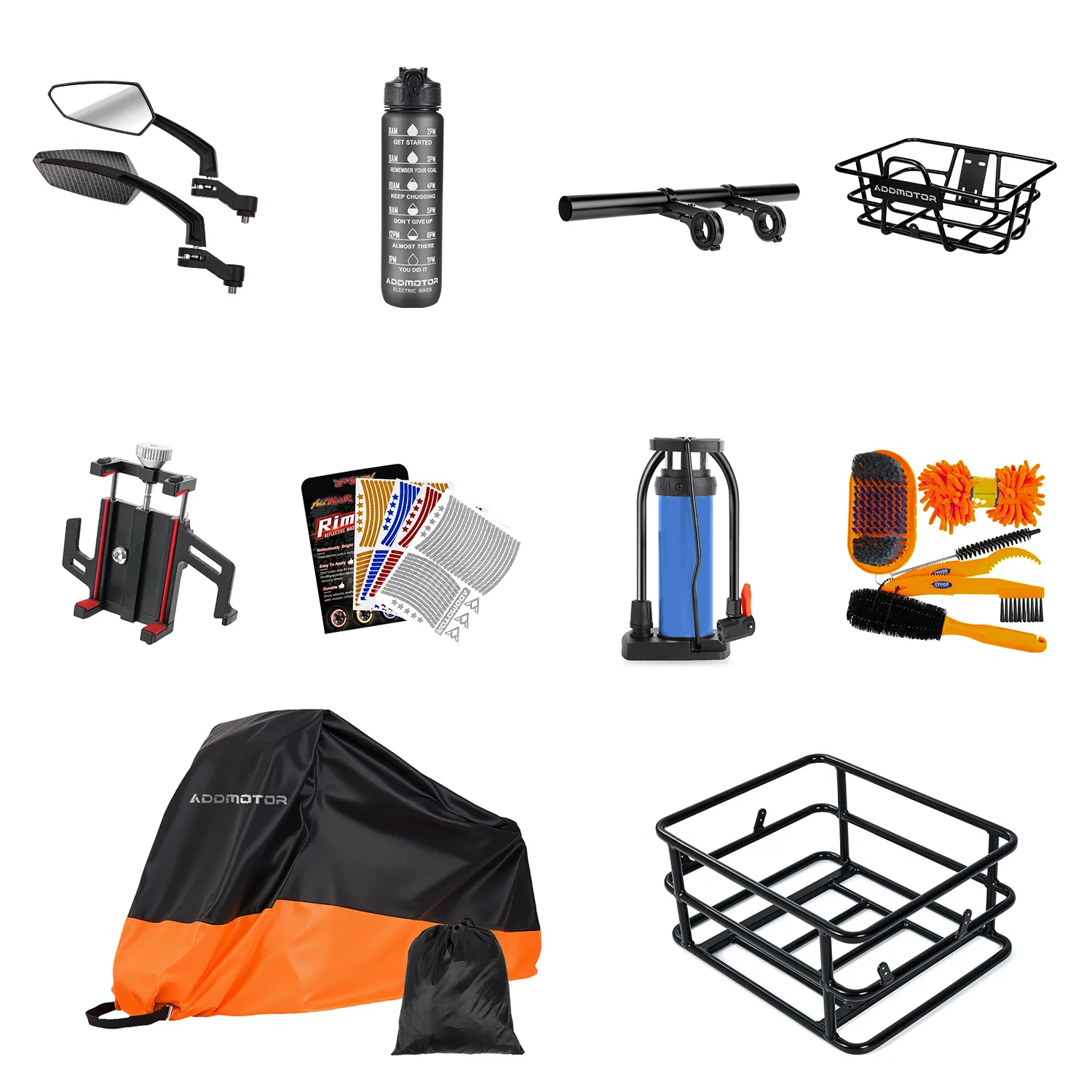

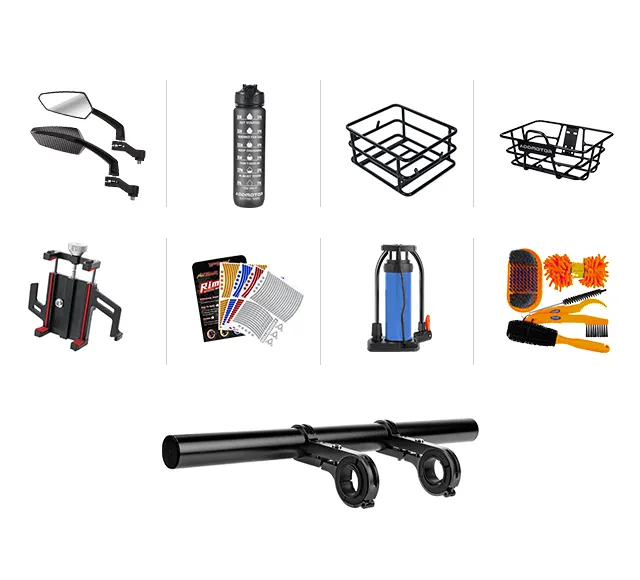

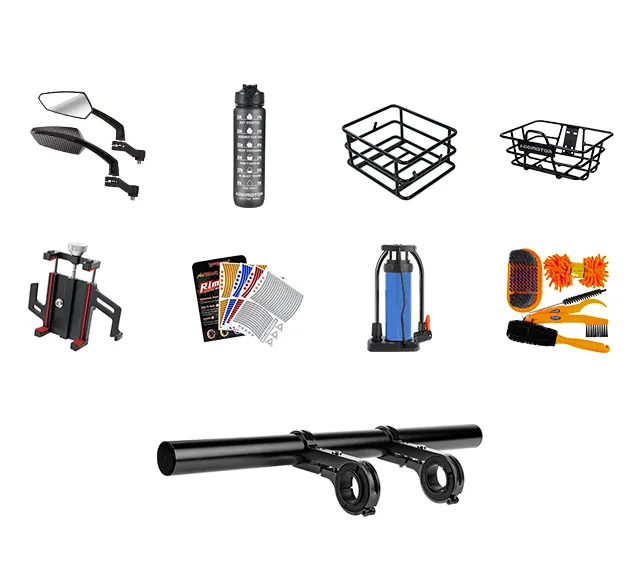

Popular Accessories for Your Electric Fat Trike

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Fit Triketan M-330 mini for you

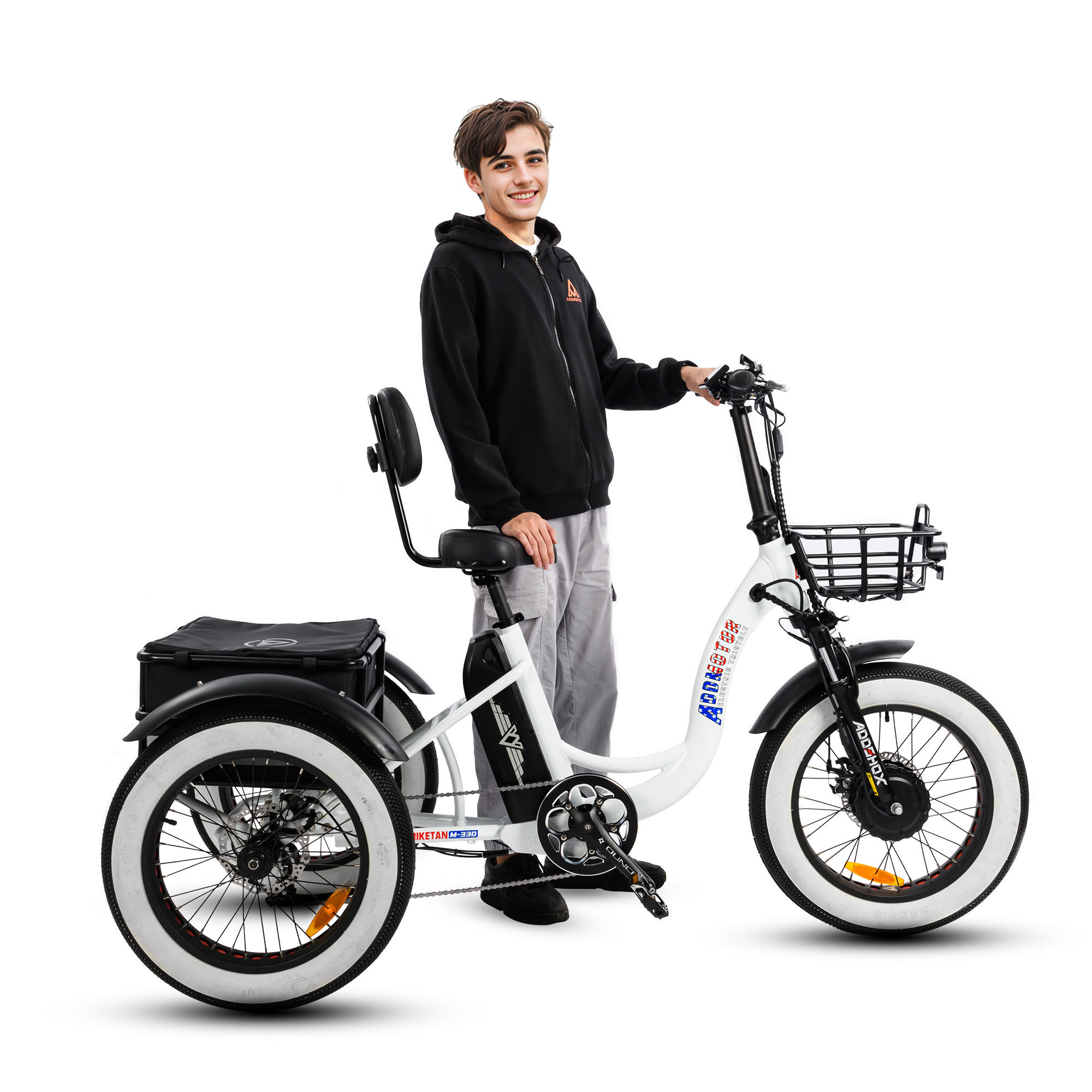

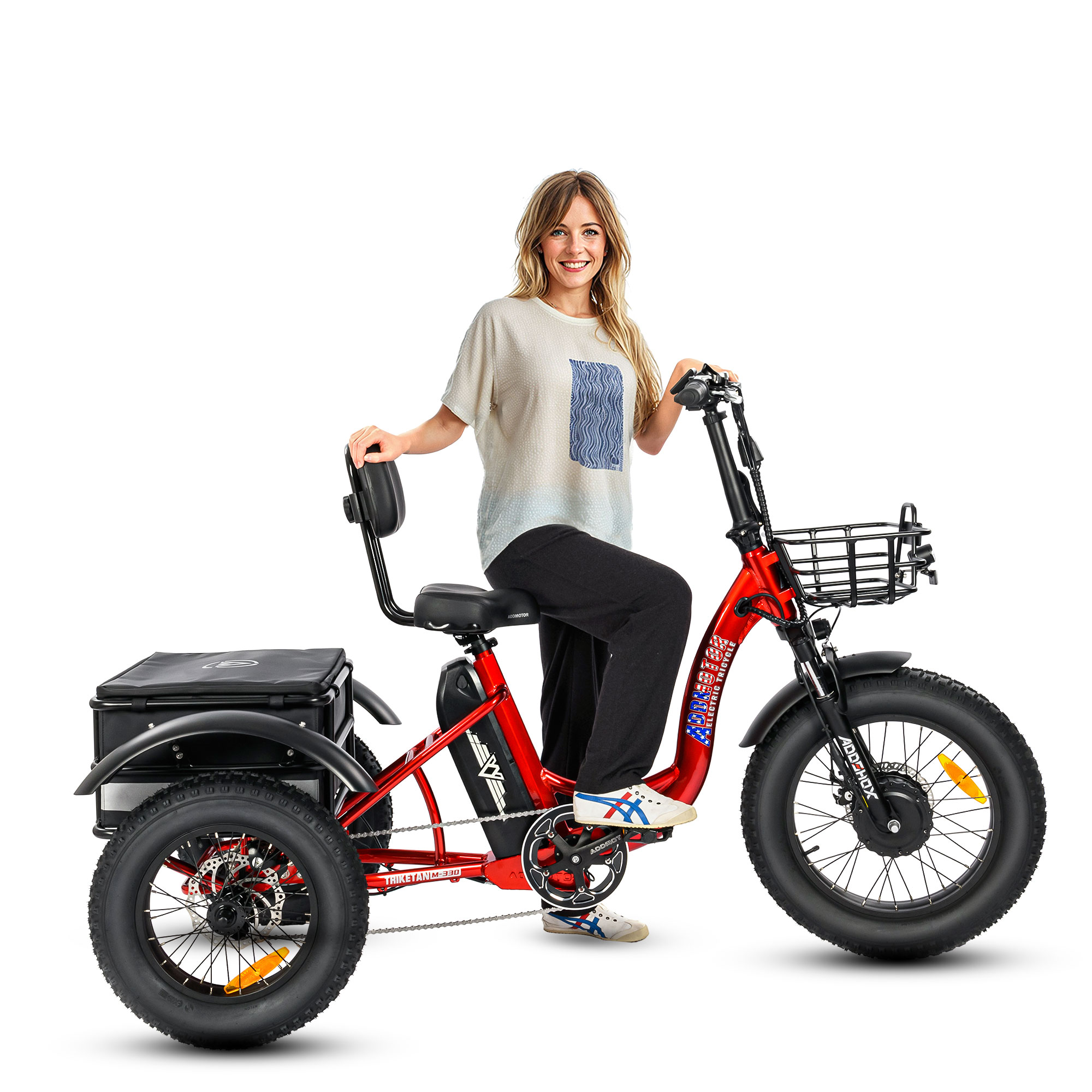

Jane's measurements: bike inseam 30''/76cm, height 5'3''/160cm

Edward's measurements: bike inseam 32''/81cm, height 5'10''/180cm

in
30′′ bike inseam

Slide the scale to measure the bike inseam

Triketan M-330 mini

You will have the ease to pedal and stand over the frame with comfort.

Design of Mini Rear Tires

The M-330 Mini is a more compact version of the M-330,

designed to provide the same level of performance in a smaller package.

M-330M features with 3 colors, yellow, candy red, and black, shine more with your ride.



Design of Mini Rear Tires

The M-330 Mini is a more compact version of

M-330, designed to provide the same level of performance in a smaller package.

M-330 Mini features with 3 colors, yellow, candy red, and black, shine more with your ride.

48V*20Ah

Lithium Battery Samsung Cells

85+ MILES (PAS 1)

Miles Per Charge (Estimate)

750W POWERFUL MOTOR

Brushless Front-Mounted Hub Motor

FRONT & REAR LIGHTS

Powered by Main Battery and Controlled by The Uneven Buttons

STRONG & DURABLE FRAME

7A19 Aluminum Alloy Frame

20" X 4" TIRES

Kenda Puncture-Resistant Fat Tires

Step-Thru Electric Fat Trike

Suitable for most terrains

Whether you’re exploring outdoors or

commuting through the city, this fat tire

electric trike can handle well.

20X4.0'' and 16X4.0'' Fat Tires

M-330 Mini is equipped with 20 inches front

wheel and 16 inches rear wheels. Providing

a smoother ride and reducing the

risk of punctures or other damage.

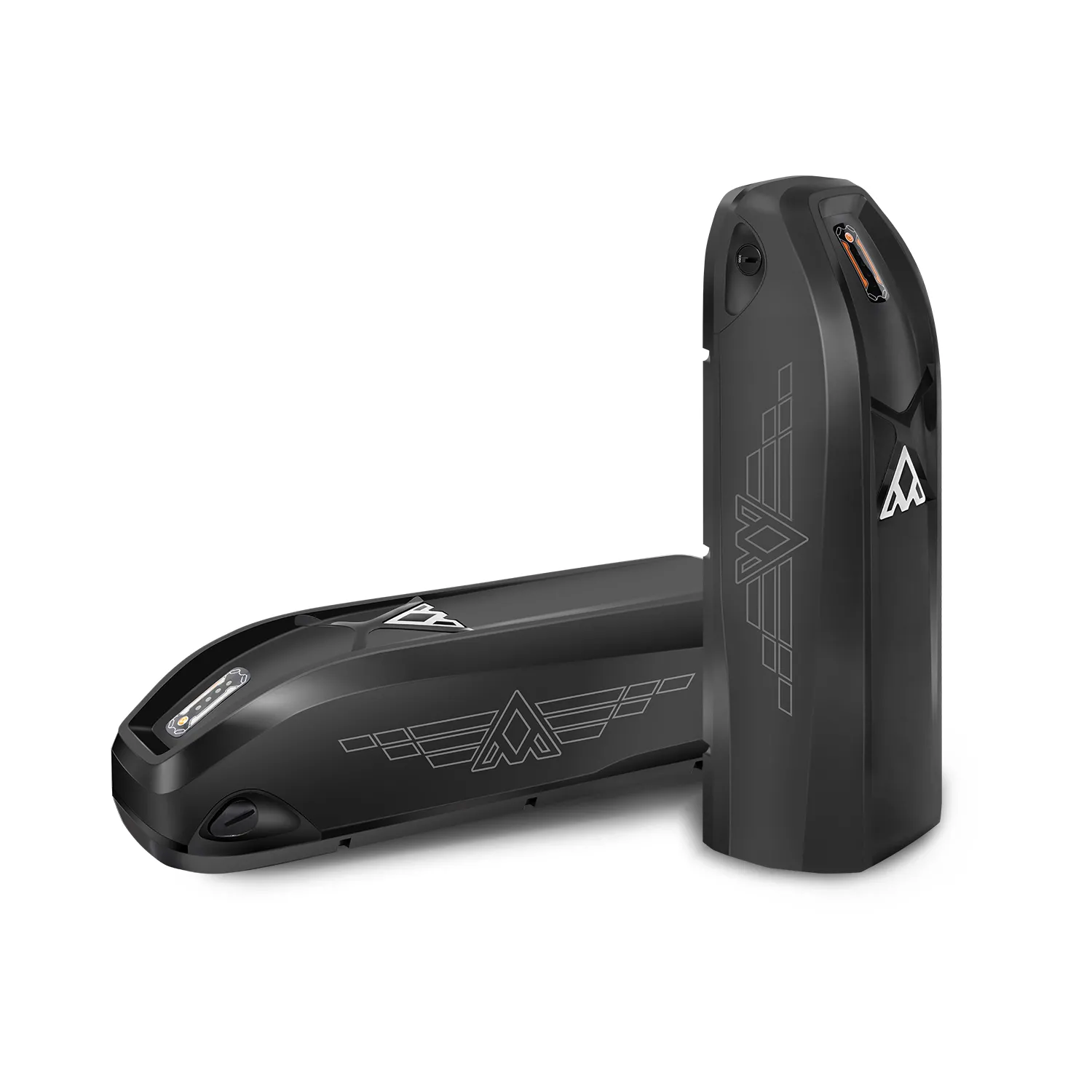

48V*20Ah

UL-Certified Battery

M-330 Mini is powered by a 48V*20Ah Samsung

battery, which is UL-certified for safety.

Up to 85 miles range for a single charge.

Bafang

Front-Mounted Motor

A powerful 48V*750W front-mounted motor provides

excellent acceleration and speed. The design

allows for better weight distribution and handling,

making the M-330 Mini more stable and maneuverable.

Addmotor 5 Inch LCD

Display with Multi Function

Provides a wealth of information about your ride,

your current speed, battery level, distance traveled, and

other important metrics, allowing you to easily track

your progress and plan your route.

Full Tektro

Disc Brakes

The disc brakes are located on all wheels,

ensuring you can stop quickly and safely.

180mm F / 2*180mm Rear Brake Rotors

Integrated

Lighting System

A LED headlight and taillight are controlled by

display, to provide excellent visibility

even in low-light conditions.

Technical specs
+Electronics
Motor
Bafang 48V*750W Front Brushless Hub Motor, 80 N·M Torque
Battery
Samsung 48V*20Ah Cells Battery, Charging Time 9-10 Hours And Rated For 1000-1500 Charge Cycles
Display
Addmotor 5-Inch LCD Display
Controller
Addmotor 25A Controller
Throttle
Variable Speed Control - 1/2 Twist Throttle
HeadLight
Powered By Main Battery And Controlled By the uneven buttons
Taillight
Powered By Main Battery And Controlled By Display with Brake Light Function
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
7 Level Pedal Assist, Cadence Sensor
Charger
48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
+Components
Frame
7A19 Aluminum Alloy Frame
Front Fork
MOZO 50mm of Travel
Brake Lever
Tektro EL555-RT/EL550-RS
Rotors
180mm F / 2*180mm Rear
Chain
KMC Rust Resistant Chain
Tires
Kenda 20" X 4.0"F/16''X4.0''R, 30 TPI Fat Tires
Chain Puller
Shimano 7 Speed / ALTUS M310
Handlebar
Black Aluminum Foldable Handlebar
Seat Post
Quick Release 30cm
Basket
Front and A Rear Basket Waterproof Bag

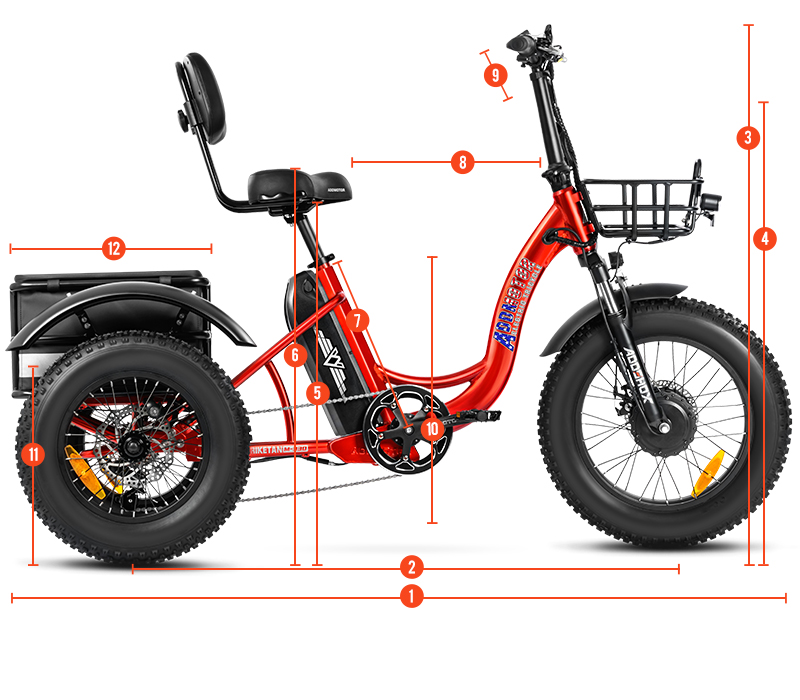

Measurement

Suits riders in the height range of 5'-6 '4"

Max load capacity is 450 lbs

Total Length 73"

Wheelbase 49.5"

Maximum Handlebar Height 49"

Minimum Handlebar Height 46"

Minimum Seat Height 31"

Maximum Seat Height 38"

Seat Tube 17"

Reach 16"

Handlebar Length 24"

Standover Height 16.5"

Width of Rear Wheels 12.6"/18.5"

Rear Basket 21.5"L x 17" W x 10"H

Bike Weight 101LBS/46KG
