In stock and ready to ship: Estate Blue, Yellow
Pre-order available: Black, expected to ship around late July
Limited quantity, first come first served.

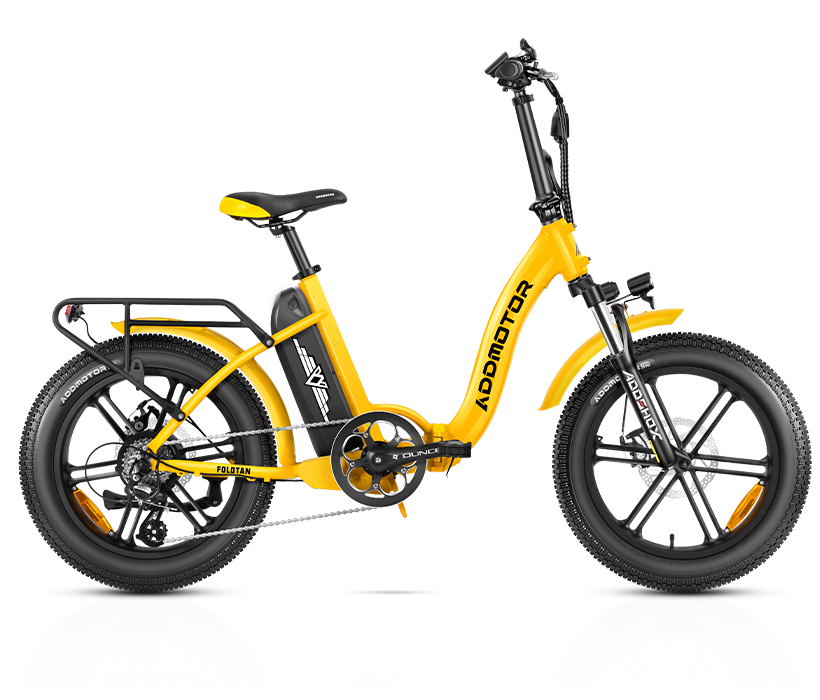

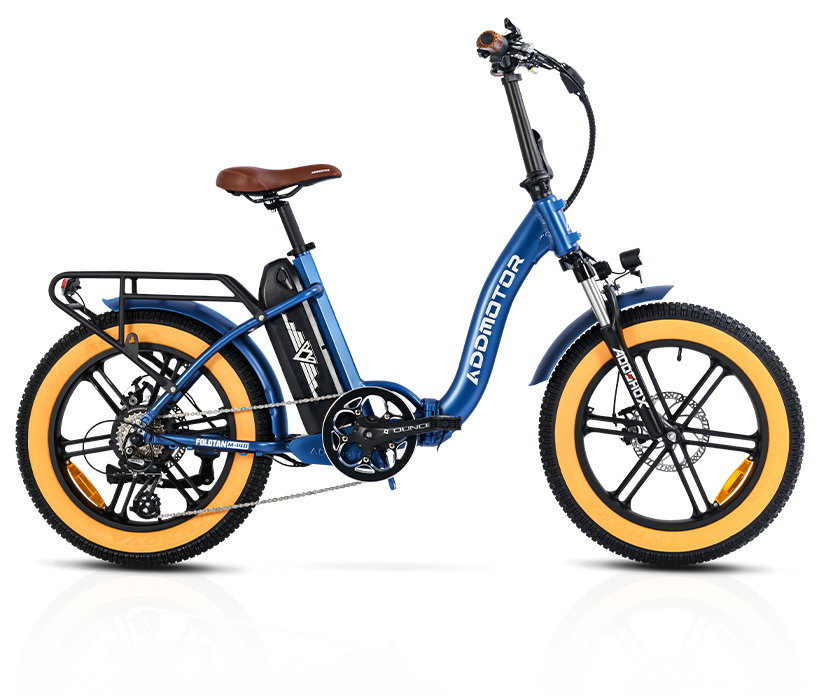

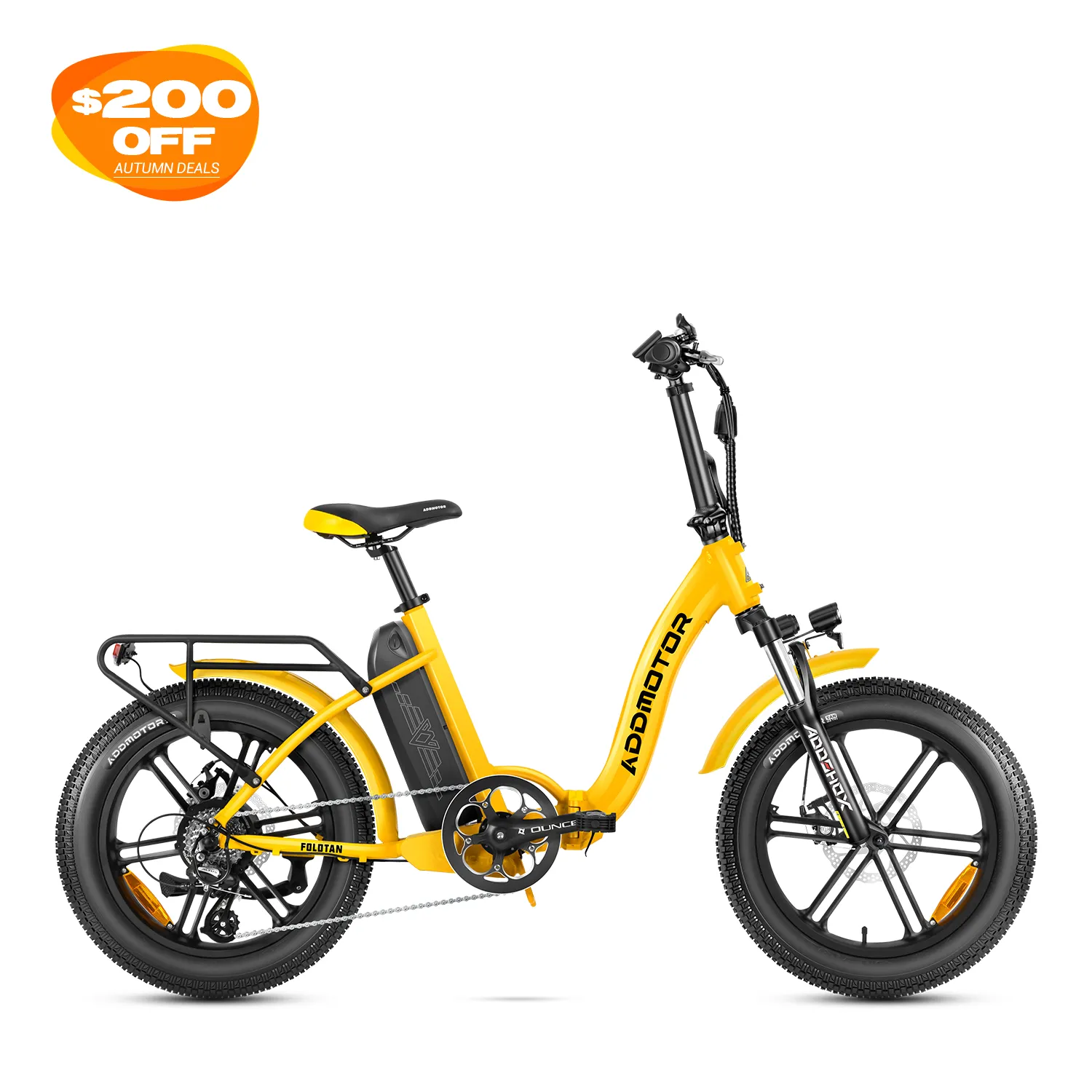

The MOTAN m-140 r7 fat tire folding step-thru integrated wheel e-bike is merely wonderful. It's an excellent choice for you who wants an electric bike that is portable, affordable, and powerful enough to handle a wide range of use. Collapsible top tube, folding frame, and pedal make it portable easily and quickly fold down to store in your car, under your desk at work, or anywhere you will use it. Seamlessly connect from car to the woods or park, from home to the metro and toward the office.


FEATURES

Strong Step-thru Folding Frame

A thick tube technology applied to this folding bike meaning the frame is strong and stable enough to hit the trail, portably to store and transport the bike in your car or other conveyances. The bike features a low step-through frame design for easy to mounting and dismounting, made it less challenging for some riders, including women, the elderly, physically limited riders, or those who may experience issues with balance, to suit a wider range of riders. And it can carry a load of 280lb quite easily.




Tougher Integrated Wheel and Powerful Integrated Wheel Motor

The MOTAN M-140 R7 comes with a rear-mounted hub integrated wheel motor, rated at 750 Watts but peak power up to 1180w with a special design for any terrain. Whether you are seeking to travel across sand, through snow, uphill, downhill, or just along with a straight, flat road, this model M-140 R7 electric bike is up for the challenge. You don't need to worry about your bike breaking down on hard terrain. This piece of carefully conceived technological ascension will leave you baffled. The sturdy integrated wheel that offers strong support in hard terrain, reducing front wind resistance when riding in the windy road. In addition, the compact integrated wheel gives a beautiful look.






Upgrade A Large Capacity 16Ah Panasonic Battery

The bike is equipped with a super high capacity of 16Ah lithium battery and you will never disappoint when in a long-range riding as a single charge in a span of 6-7 hours can last for distances up 55-65 miles using the level one pedal assist, charging time depends on the current status of the battery.



Upgrade Integrated Headlight and Taillight

The M-140 R7 brings the newest super bright integrated headlight and an upgrade integrated taillight with a brake warning. All these two lights powered by the main battery while controlled by the display, definitely ensure the safety on the go, even play an immeasurable role when riding at night or in dark weather.



Aluminum Front Fork Suspension and 4.0'' Fat Tires Make The Biking Extra Smooth and Comfort

This bike is equipped with front suspension, while the pull brakes slow down, it will feel quite interesting. Regardless of snow, beach, gravel, muddy paths, or snowy hills, this bike will take you everywhere effortlessly. The 4.0'' inch fat tires can overcome many uneven that makes it feel like riding on flat ground. It increases your excellent feels of comfort during the journey.





Addmotor 5 Inch Night Mode LCD Screen Display

A 5 inches LCD display is mounted on the front tube which comes with both night mode technology that ensured visibility at night and a USB port to charge your phone or electronic device on the go. This display shows the parameters clearly including battery bars, speedometer, odometer, and biking mode, all these features can well meet any of your needs, easily to glance the health of the bike on road.




Adjustable Handlebar and Saddle

Both the black lithium handlebar front tube and the pretty comfortable saddle can be adjusted according to the rider's height. The seat post can quickly release 30cm. Appropriate height for this bike is 5'2''-6'3''.




Comes with front and rear fenders, as well as a rear rack

The bike comes with front and rear iron fenders that making the biking trail in a clean state and keeping your pants dry and clean. Featuring a high-quality iron detachable and sturdy rear luggage, be ideal for both manned and carrying goods.




Sizing:

Total Length: 68''
Wheelbase: 45''
Maximum Seat Height: 37''
Minimum Seat Height: 31''
Stand Over Height: 15''
Minimum Handlebar Height: 46''
Maximum Handlebar Height: 50.5''
Seat Tube: 16''
Reach: 12.5''
Folded Up: 44'' x 21'' x 29''


SPECIFICATION

Product
Model: MOTAN M-140 R7
Style: Folding Fat Tire
Size: 20''
Color: Balck / Yellow / Estate Blue
Electric Bike Class: Throttle on Demand(Class 2)
Suggested Use: Trail, Neighborhood, Sand and Snow

Electronic
Battery: Panasonic 48V*16Ah Lithium Cell Battery
Motor: Bafang 48V*750W Rear Hub Brushless Motor【Peak Power up to 1180W】
Display: Addmotor 5 Inch LCD Display With USB Port
Throttle: Variable Speed Control - 1/2 Twist Throttle
Charger: 2.5A US Standard Smart Charger
Controller: Addmotor 25A Controller
Headlight/Taillight: Powered By Main Battery And Controlled By Display
Integrated Wiring: Water-Resistant Connectors And Wiring Harness

Mechanics
Frame: 6061 Aluminium-Alloy Frame
Front Fork: AddShox 80-95mm Of Travel, Adjustment, And Lockout
Brake Lever: Tektro Mechanical EL555-RT/EL550-RS
Rotors: Tektro MD-M300 180mm/160mm
Chain: KMC Rust Resistant Chain
Tires: Kenda 20" x 4.0" Fat Tires
Chain Puller: Shimano 7 Speeds / ALTUS M310
Handlebar: Black Aluminum Handlebar
Pedal: Aluminum Black Folded Pedal
Saddle: Addmotor Comfortable Seat
Seat Post: Quick Release 30cm
Rear rack: Detachable and sturdy luggage rack

Data
Charging Time: 6-7 Hours. Depending On The Battery Status
Battery Life: Rated For 800 Charge Cycles
Range: 55-65 Miles With PAS 1
Appropriate Height: 5'2''-6'3''
Max. Load Capacity: 280Lbs
N.W:/G.W: 73 lbs / 85.5 lbs



M-140P7 & M-140R7 Folding Bike Comparison

The main difference between M-140 P7 and M-140 R7 are the wheels and color.

P7 comes with spokes wheels. The spokes wheels are connected by 36 steel wires, durable and still popular. Spoke wheels can bend and flex to a certain degree letting you tackle the rougher terrain. After running for a period of time, the spokes may be loosened and require some adjustment.
Available for four colors: green, blue, rose gold, haze green

R7 comes with aluminum alloy integrated wheels. It becomes common an e-bike using aluminum alloy integrated wheels.  Unlike spokes wheels, aluminum alloy integrated wheels are tougher, can handle higher speeds and higher amounts of horsepower and torque with relative ease, performance more stable. Simple lines make the whole bike look more beautiful and stylish.
Available for three colors: black, yellow, estate blue
