GRANDTAN PLUS 2023 Fat Tire Electric Trike

26"(F)/24"(R) X 4.0 Fat Tires Electric Tricycle
Price:
USD
$3099.00
$3899.00

    Please select the information you wantX
  • Color:

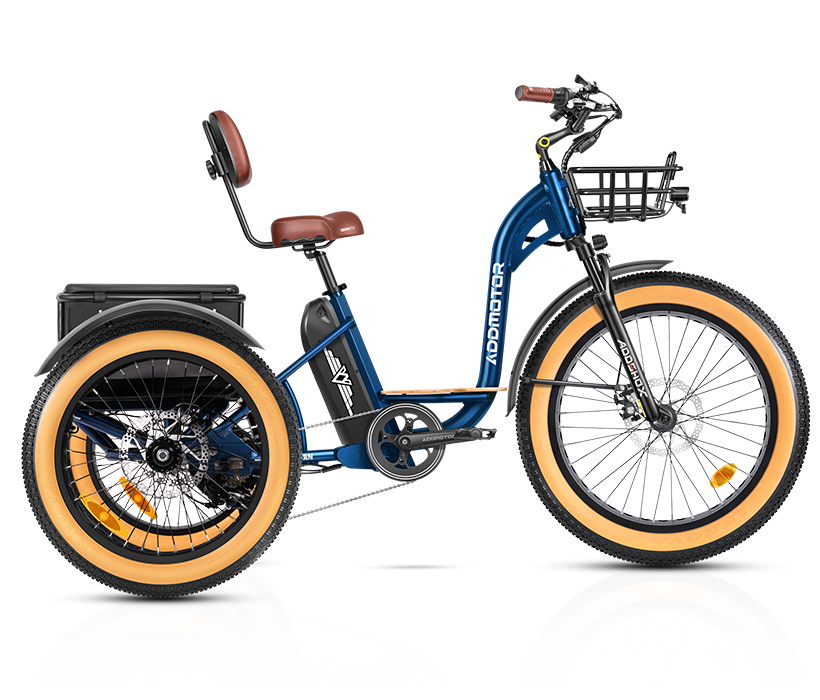

    Neptune Blue

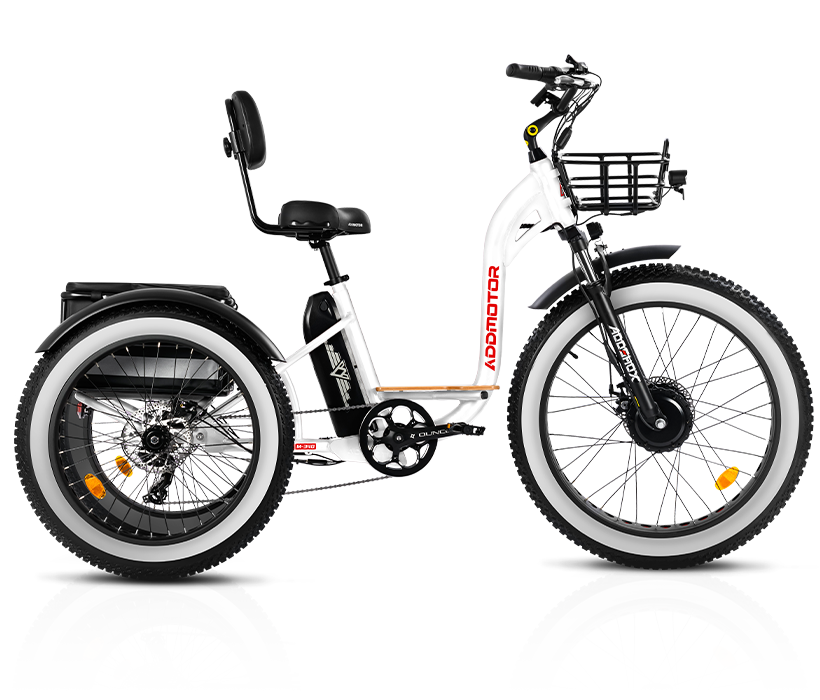

    Pearl White
    Army Green

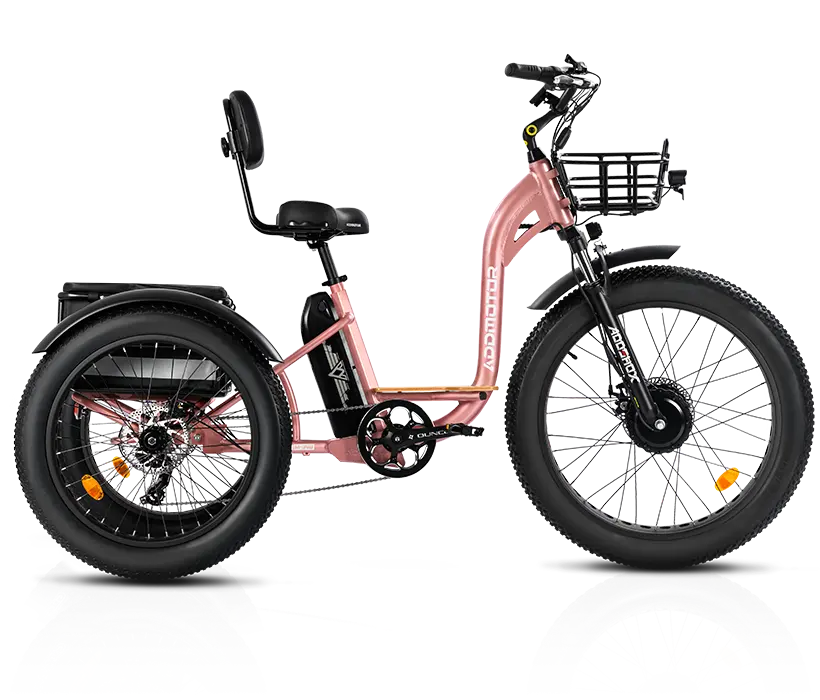

    Rose Gold

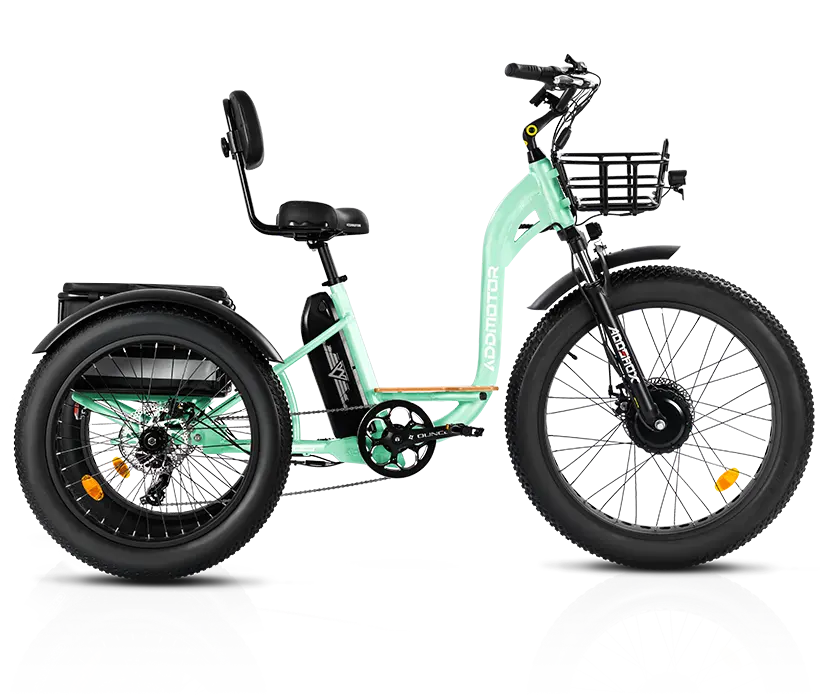

    Cyan Green

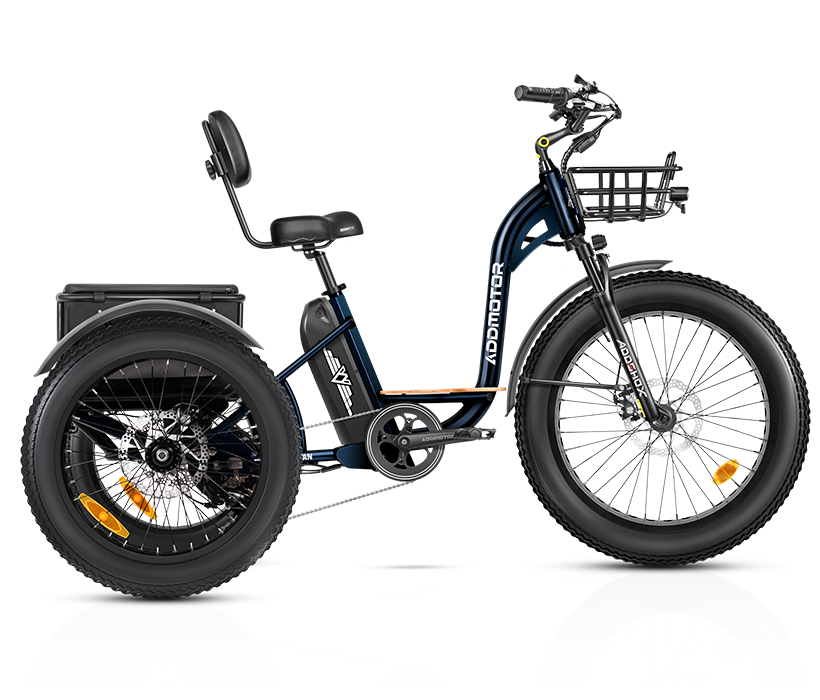

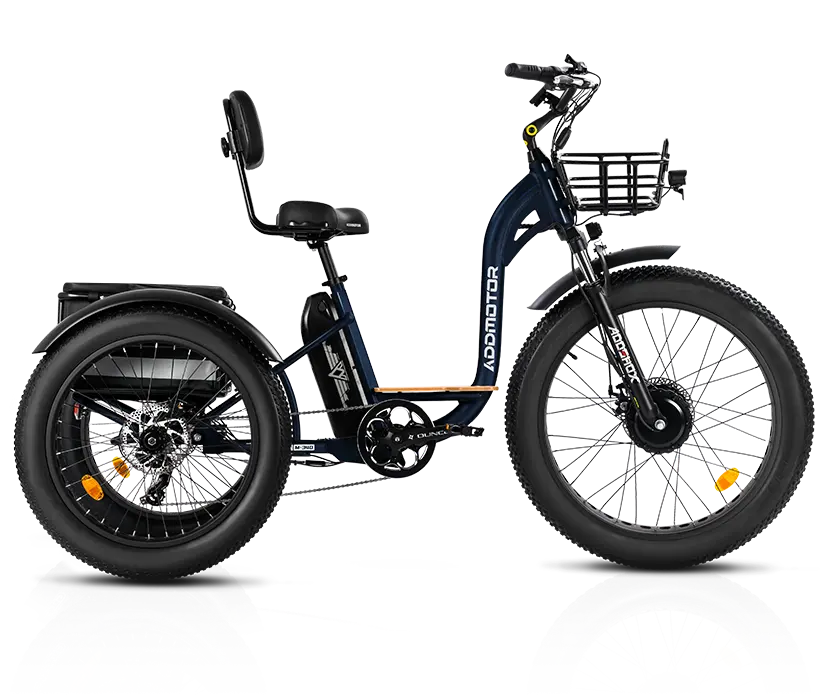

    Starry Blue
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*750W
Bafang Brushless Motor
Up to 85+
Miles per Charge (PAS1)
48V*20.0Ah
Upgraded Samsung Battery
350+100lbs
Payload Capacity

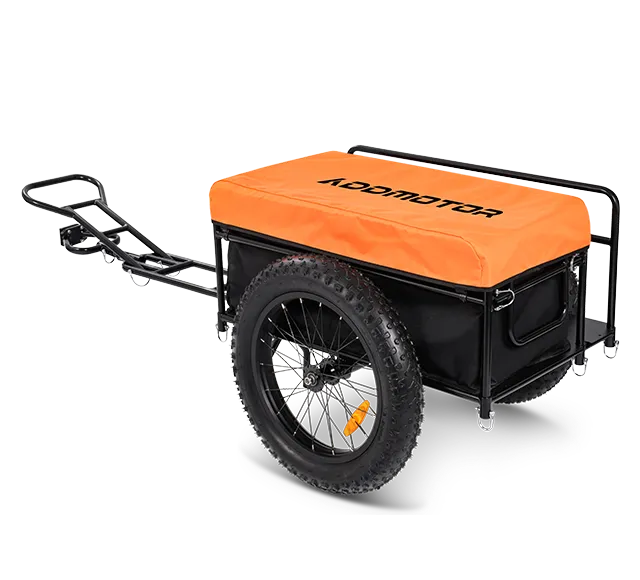

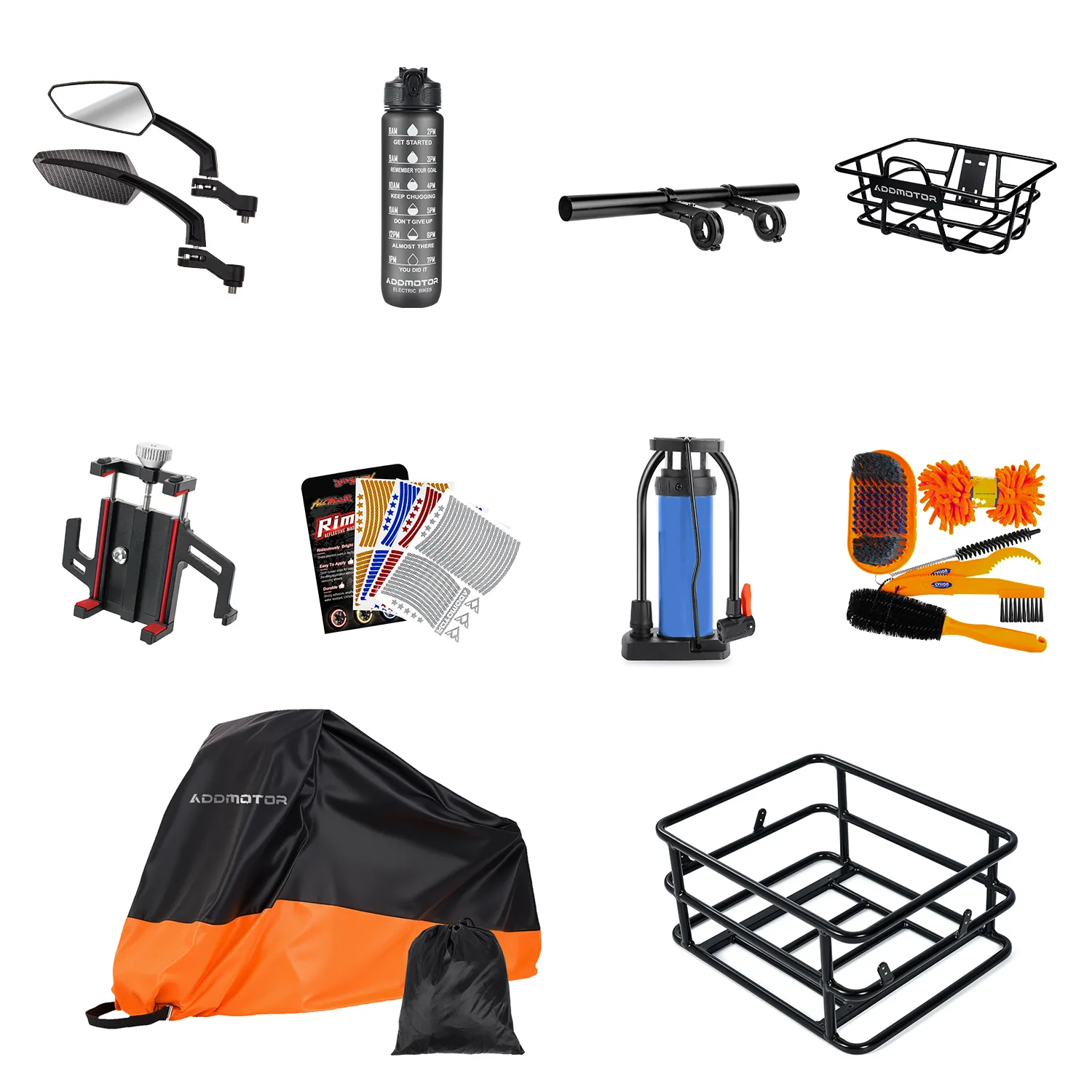

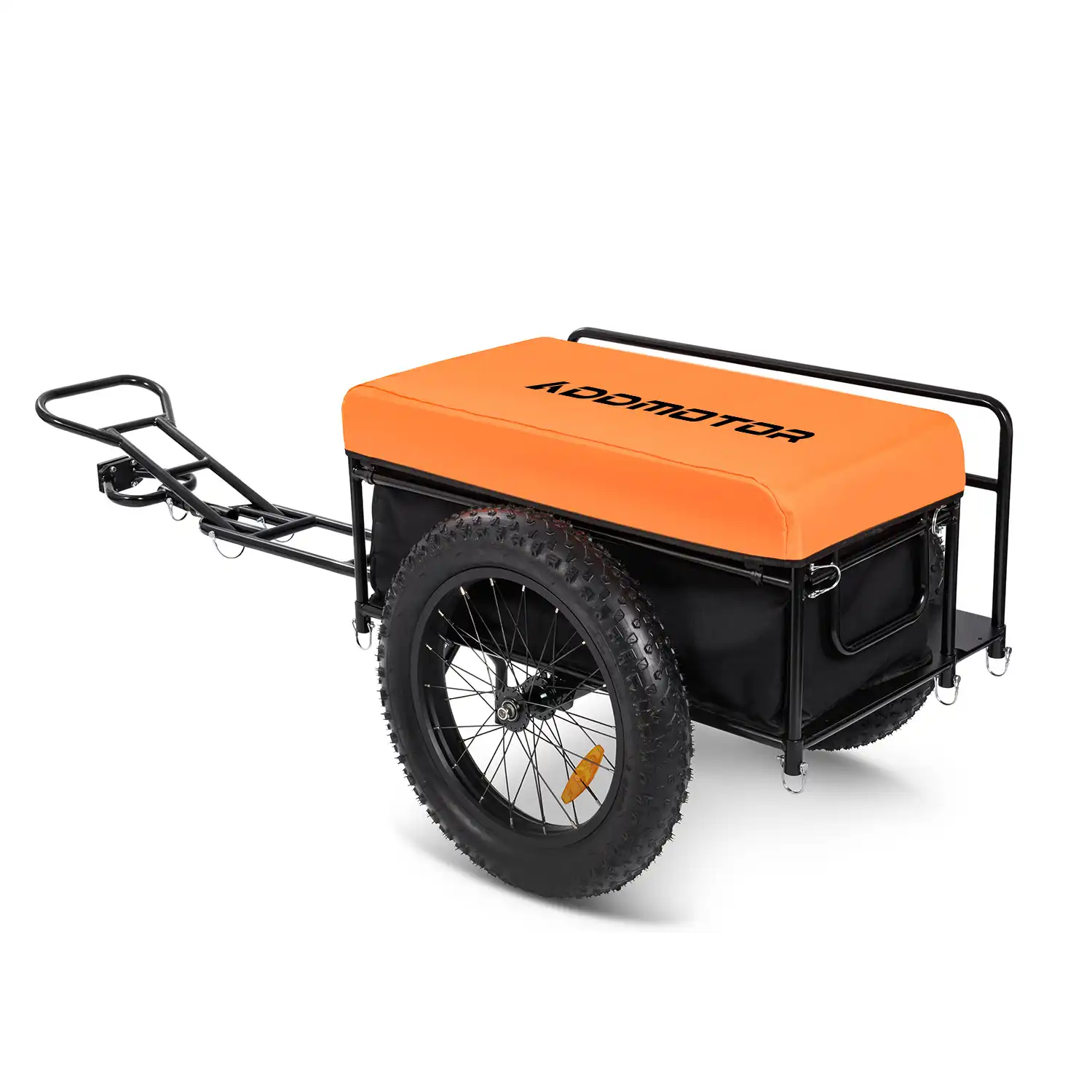

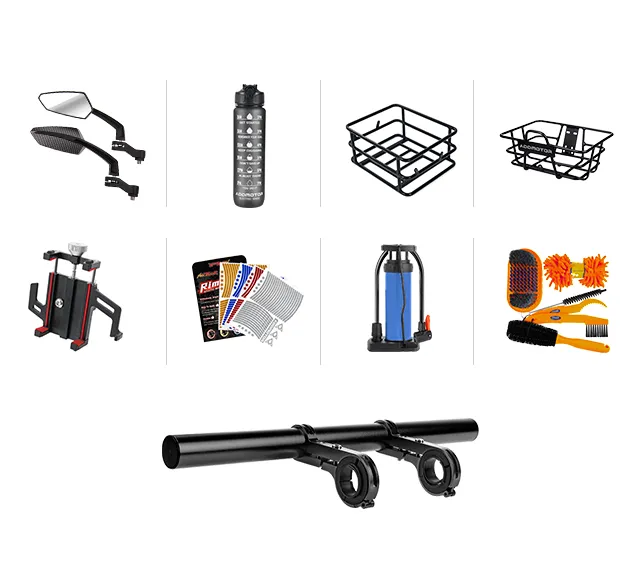

Popular Accessories for Your Electric Fat Trike

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

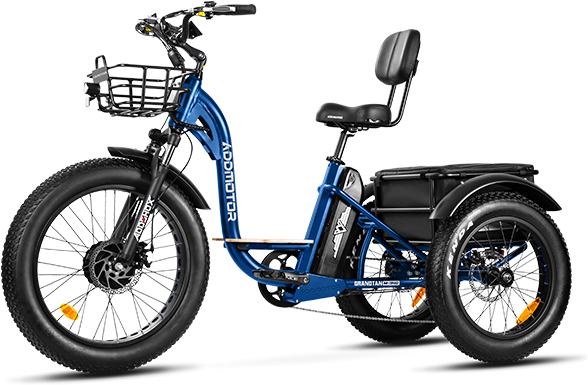

The Plus Version

Of Grandtan M-340

M-340 Plus electric tricycle is available in 6 colors of your choice, whether bright colors like Pearl White, Rose Gold and Cyan Green, or understated colors like Neptune blue, Starry Blue and Army Green, there will always be one for you.



48V*20.0 AH

Lithium Battery Samsung Cells

85+ MILES (PAS 1)

Miles Per Charge (Estimate)

750W POWERFUL MOTOR

48V*750W Front Brushless Hub

FRONT & REAR LIGHTS

Integrated Headlight & Integrated Brake Taillight

STEP-THRU FRAME

Easy To Get On And Off

4.0" Kenda FAT TIRES

Provide More Balance And Control

Perfect Companion for
Outdoor Adventure

with its sturdy-built frame and extra 4" wide tires, this electric trike rolls over anything in your way, and the rear 24" wheels lower your center of gravity for stability. The front suspension keeps you comfortable on all terrain.

Easy Your Every Ride
With Bigger Wheels

The EB 2.0 Grandtan Plus e-trike comes with bigger wheels for better riding in adverse weather conditions and to fit taller people. The fat tires offer better traction & grip on snow, sandy beaches or tough terrains.

Kenda 4.0 Inch

Fat Tires

4-inch Kenda fat tires, with layers of inner tube protector, high-volume inner tube, and anti-slip cover tire, boost riding comfort and have better rollover capability & durability. Grandtan Plus fat tire e-trike is up for the challenge.

Front Tire: 26" x 4.0"   Rear Tire: 24" x 4.0"

750W

Front-Mounted Motor

With 48V*750W at your disposal, the high-speed brushless front-mounted hub motor can help you conquer the most rugged terrains easily, providing easier hill climbing and an effortless riding experience that you have to feel to believe.

Max Motor Torque: 80Nm

Peak Motor Watts: 1,000W

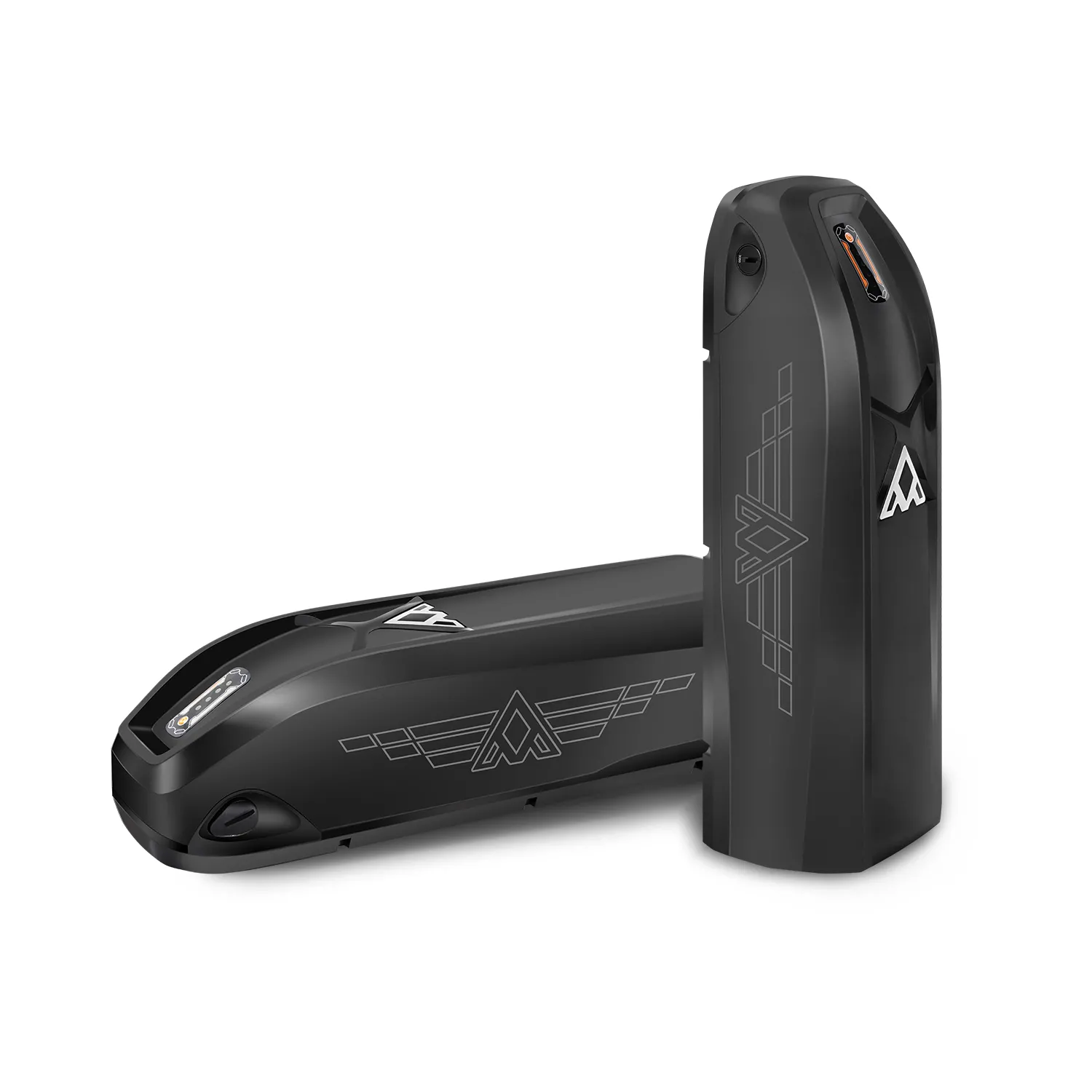

48V*20Ah

UL Certified Battery

A rechargeable and removable 20Ah long-lasting Samsung battery will give you enough juice for long-range riding. UL certification reduces your fire risk by at least 90% through its rigorous, complex, and comprehensive procedures.

Charging Time: 9-10 Hrs

Per Charge: 40-85 Miles

Up To 85+ Miles
Riding Range

The Grandtan Plus is a multi-speed e-bike with a 7-level PAS mode and a twist throttle. Powered by a 960Wh battery, it can ensure an impressive riding range from 40 to 85 miles with different speed.

Addmotor

5 Inch LCD Display

Provides riding information of battery usage, mileage, speed, lighting usage, PAS level, current motor wattage, etc. This makes your ride safer and easier to control.

Integrated Headlight & Taillight

Grandtan Plus M-340 model’s headlight & taillight are powered by the main battery pack and controlled by the uneven buttons, contributing to an integrated control system. Together, the lights have a 360° side view, ensuring you riding safety at night.

40-Lumen Headlight

200m Visual Range

Adjustable Light Brightness

IPX5 Waterproof Grade

EB 2.0

LIGHT SYSTEM

EB 2.0 lighting system comes with a multi-functional taillight, delivering the driving, danger, flashing, braking, and left & right turning signals. Please note that the braking light will automatically be activated when you apply the brakes.

Tektro Mechanical

Disc Brake with

Motor Cutoff Sensor

Grandtan Plus e-trike is equipped with a full-wheel Tektro mechanical disc brake system with an automatic motor cutoff sensor. It produces strong friction on the rotors when applying the brake levers, allowing you to slow or stop quickly.

180mm F / 2*180mm Rear Brake Rotors

Footrest wood board built with eco and care in mind

Ease and relax your feet on the board while riding with throttle mode or stopping for a traffic light.

Step through frame with swan-like bionic design

Swan style design makes the Grandtan more stylish, good-looking, and easier to get off and on.

Extra wide saddle plus adjustable backrest

The padded saddle stablizes your ride,and the backrest height can be customized to maximize your comfort.

Oil spring fork with lockout & 80mm of travel

Helps ensure a smoother and more effective shock absorption when rolling over the tough terrains.

EB 2.0 chip-based controller

Upgraded 25A controller comes with simplified circuit design to lower short-circuiting & overheating risks.

Rotatable U-shaped Handlebar

An rotatable stem allows you to adjust to the right angle for a comfortable upright position.

Curved fenders keep dirt & sand off

Addmotor one of a kind fenders can protect your body and e-trike from mud, sand and more.

Dual Rear Brake Rotors

The dual brakes system ensures safe braking at high speeds, meanwhile triggering the automatic motor cutoff and rear brake light.

17.7"x 21"x 10" waterproof storage bag with refective liner stripe

Grandtan comes with a waterproof bag freebie to store your item and safeguard your nocturnal ride.

Technical specs
+Electronics
Motor
Bafang 48V*750W Front Brushless Hub Motor, 80 Nm Torque
Battery
Samsung 48V*20Ah(960Wh) with 3200 Cells Battery, Charging Time 10 Hours, Rated For 1,000-1,500 Charge Cycles
Display
Addmotor 5-Inch LCD Display
Controller
Addmotor 25A Controller
Throttle
Right Hand Half Twist Throttle with Switch
Lights
Front: Electric Headlight TRENDO by Spanninga
Rear: Electric Taillight & Braking Light SOLO by Spanninga
USB Port
Integrated in Display, 5V, 1Amp
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Intelligent 7 Level Pedal Assist, Cadence Sensor
Charger
48V 2.5A US Standard DC Smart Charger
Range
85+ Miles Per Charge with PAS 1(Estimate)
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Oil Spring Fork with 80mm of Travel
Brake
Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors
180mm F / 2*180mm Rear
Stem
Aluminum 100mm + Adjustable Angle(90°)
Tires
Kenda GIGAS  26" X 4.0" F/ 24" X 4.0" R Fat Tires
Grips
Durable Ergonomic Design
Handlebar
Black Aluminum, 630mm Wide, Sweep Back
Seat Post
Aluminum 270mm x 27.2mm
Saddle
Addmotor Exclusive Well-Padded Saddle with Backrest
Seatpost Clamp
Quick Release
Rims
Aluminum Double Wall, 36H
Spokes
Stainless Steel, F: 12-Gauge, R: 13-Gauge
Pedals
Wellgo Aluminum with Reflectors, Standard 9/16'' x 20 TPI Threading
Fenders
Aluminum, Front Included
Basket
Front: Removable, Aluminum
Rear: Removable, Aluminum, 100lbs Carrying Capacity
Crankset
Prowheel Ounce, 48T Chainring, 170mm Crank Length
Derailleur
SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
Shifter
SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
Freewheel
SHIMANO SIS Index 7-Speed, 14-32T
Chain
KMC Rust Resistant Chain

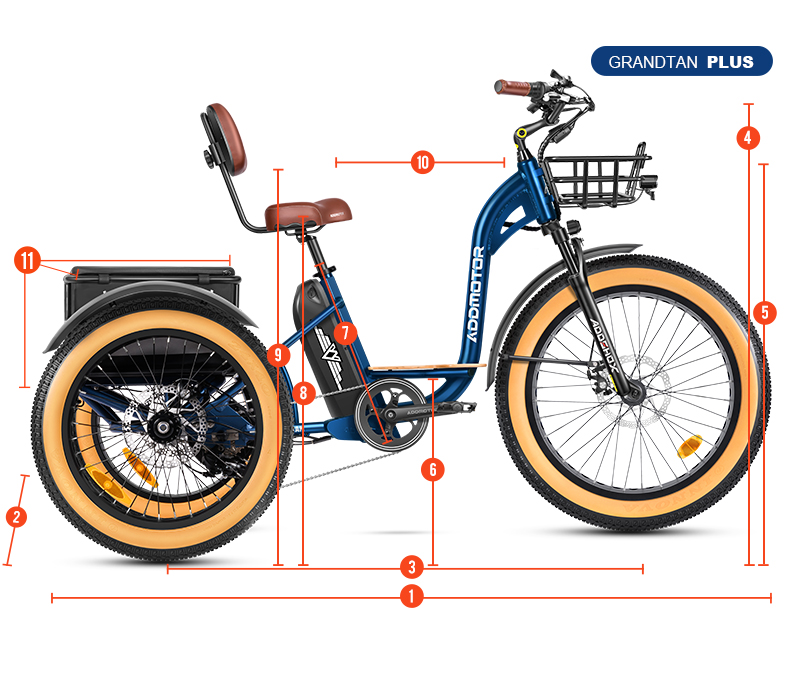

Measurement

Suits riders in the height range of 5'5"- 6'5"

Max load capacity is 450 lbs

Total Length 78"

Total Width 31"

Wheelbase 50"

Maximum handlebar Height 49"

Minimum handlebar Height 43"

Standover Height 18.7"

Seat Tube 18"

Minimum Seat Height 31"

Maximum Seat Height 40"

Reach 18"

Rear Basket 48L, 17.7" x 21" x 10"

Battery 9.5LBS/4.3KG
