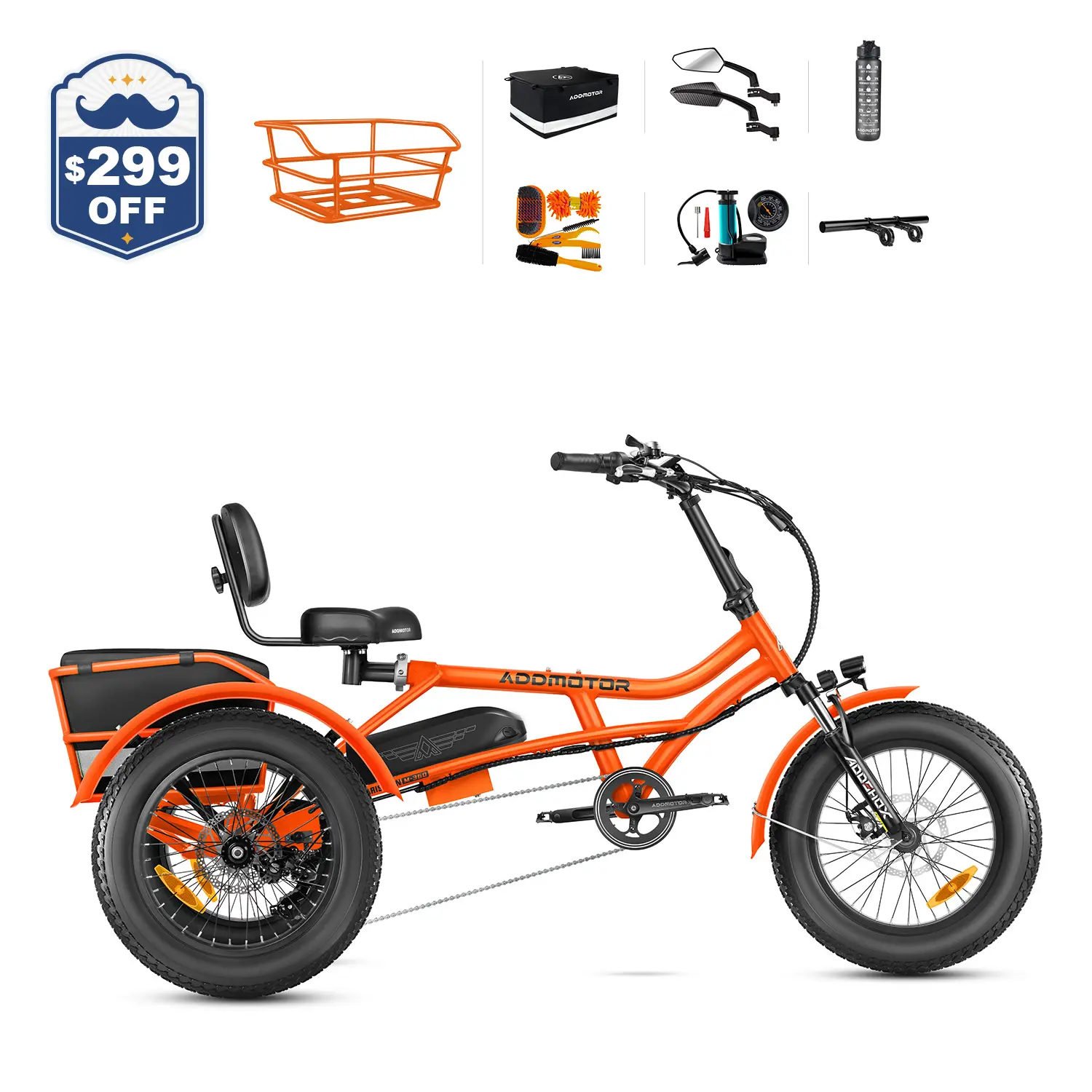

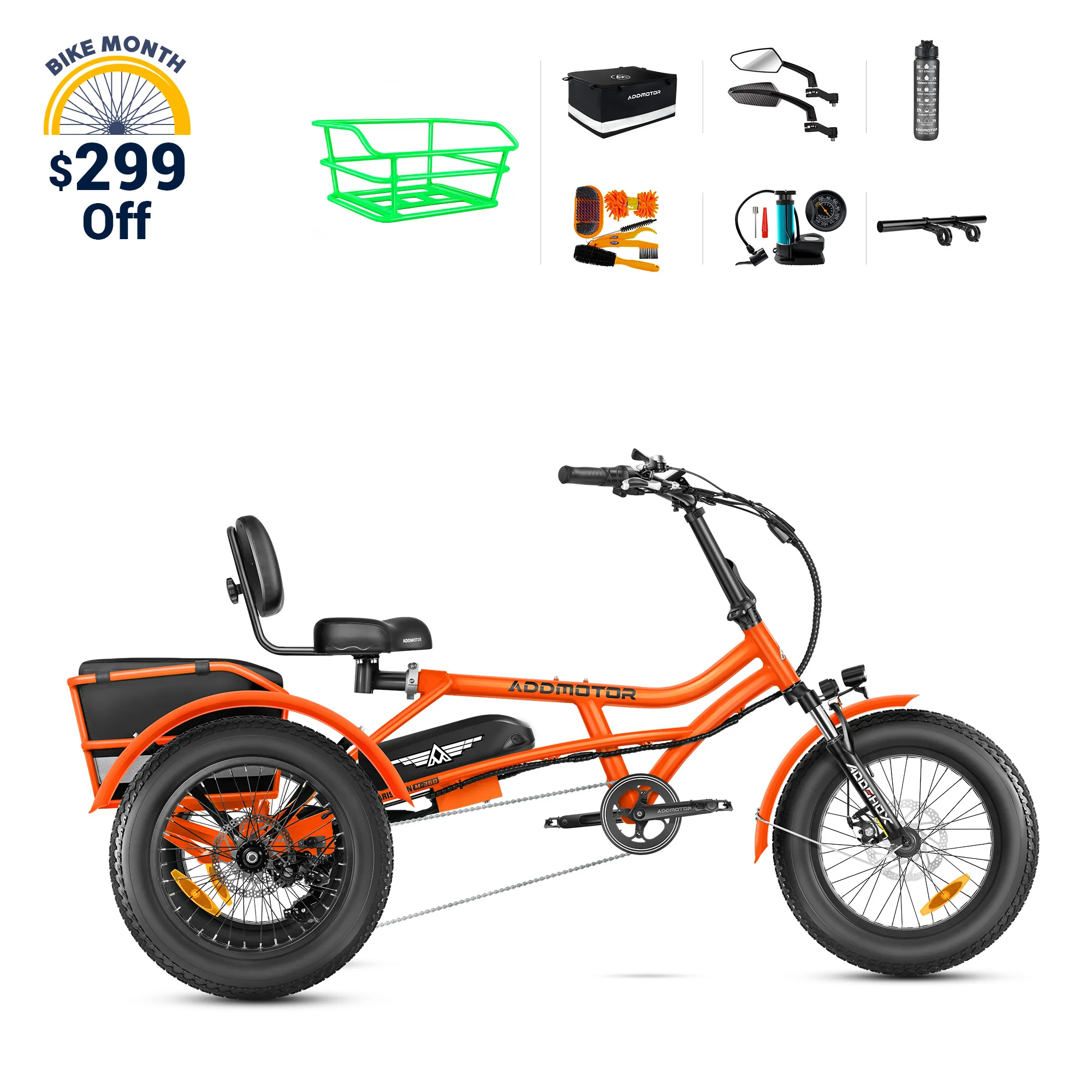

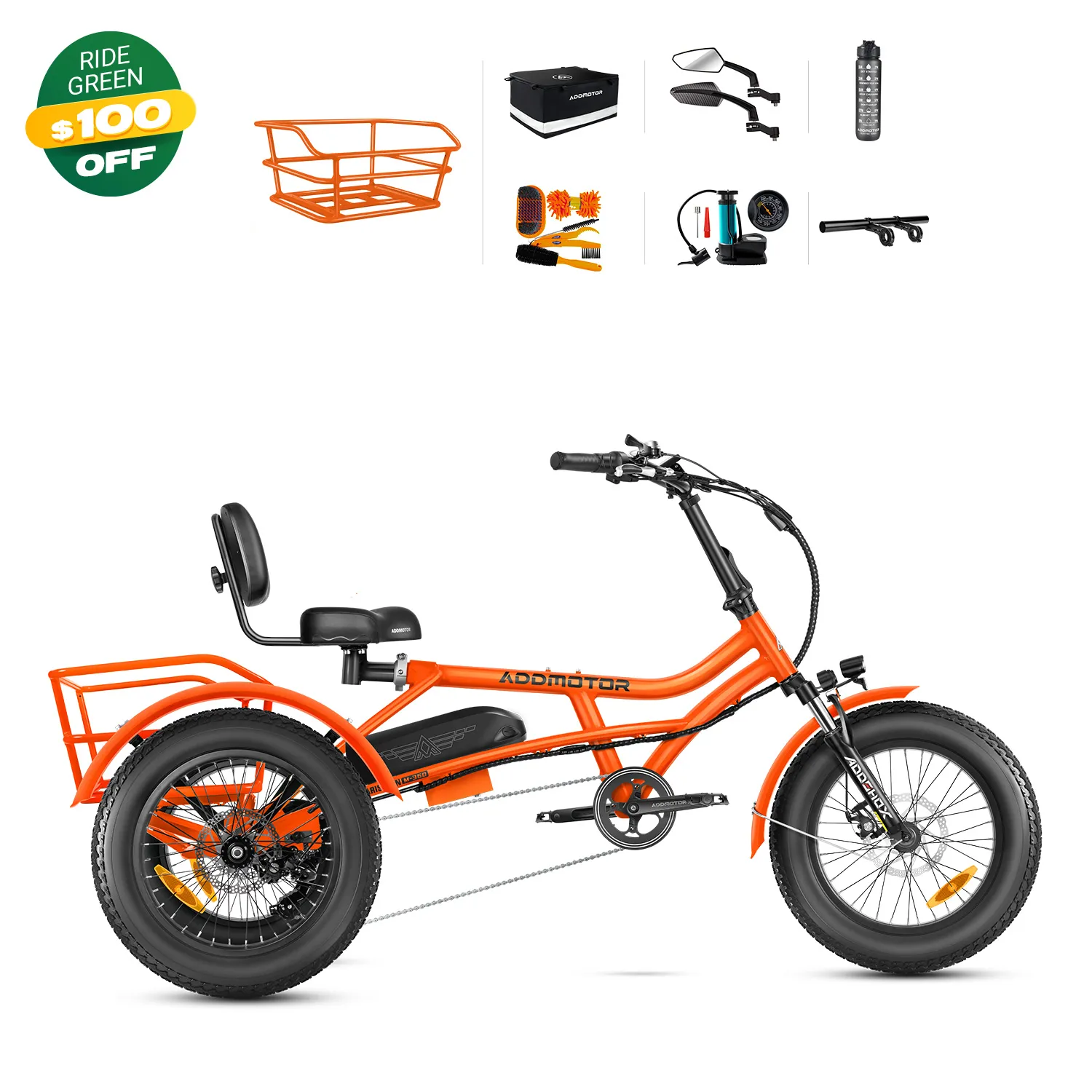

ARISETAN II M-360 Mini 2024

World's FIRST Semi-Recumbent Electric Tricycle with Mini Tires| Rear Motor
Price:
$2999.00
$3199.00

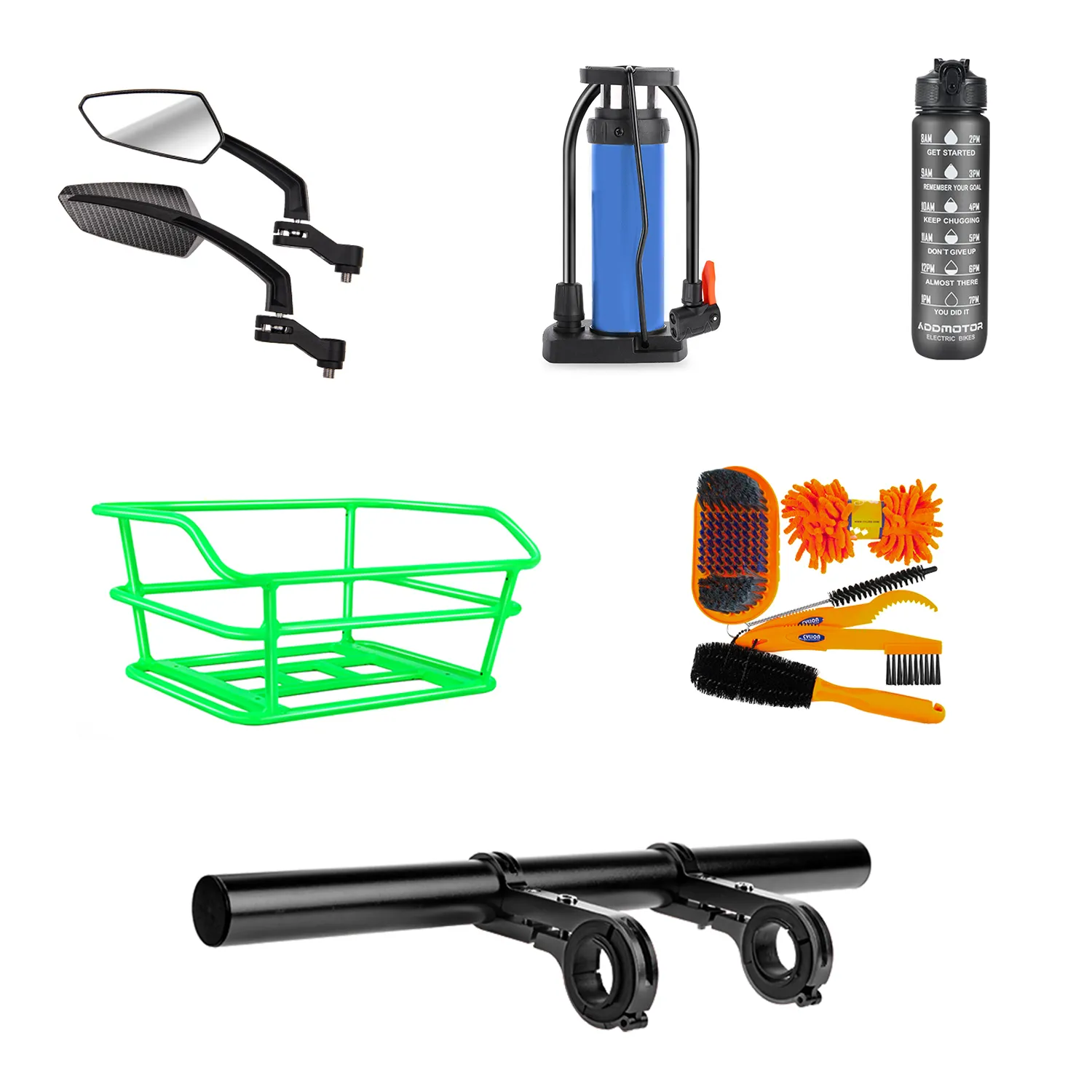

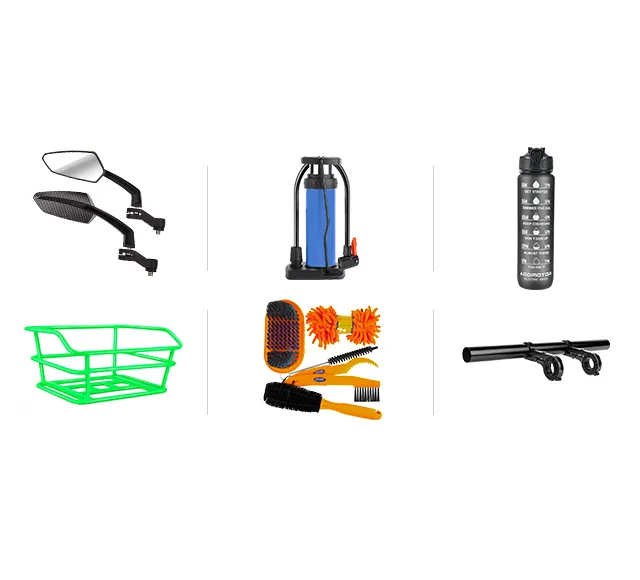

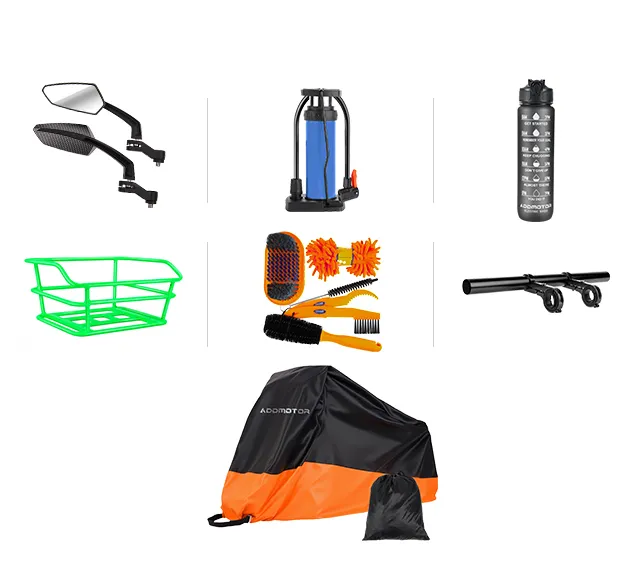

Free Accessories Included

  • Addmotor 1000 ML Plastic Water Bottle
    Addmotor 1000 ML Plastic Water Bottle

    25.99

    FREE
  • Addmotor Mirrors
    Addmotor Mirrors

    25.99

    FREE
  • Arisetan Rear Cargo Basket
    Arisetan Rear Cargo Basket

    99.00

    FREE
  • Bike Cleaning Tools Kit
    Bike Cleaning Tools Kit

    18.99

    FREE
  • Bracket Holder Extender
    Bracket Holder Extender

    11.99

    FREE
  • Mini Bike Pump
    Mini Bike Pump

    17.99

    FREE
  • Rear Basket Storage Bag
    Rear Basket Storage Bag

    99.00

    FREE
    Please select the information you wantX
  • Color:
    Orange
    Green
    Pearl White
    Blue
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*750W
Rear Brushless Hub Motor
Up to 85+
Miles per Charge(Estimate)
48V*20Ah
Samsung Lithium-ion Battery
300 lbs+80 lbs
Payload Capacity
NOTE: We are currently NOT selling this product to customers with New York City shipping and billing addresses due to Local Law 39.

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Introducing the
Arisetan II M-360 Mini

The Arisetan II M-360 Mini, a compact and agile etrike that combines a smaller tire size with exceptional comfort for an unparalleled riding experience.

color display of orange arisetan II M-360 2024 electric trike
color display of pearl white arisetan II M-360 2024 electric trike
color display of neptune blue arisetan II M-360 2024 electric trike
color display of green arisetan II M-360 2024 electric trike

mobile version of color display of arisetan II M-360 2024 Etrike with all colors
icon of battery of electric trike
48V*20AH
Lithium Battery Samsung Cells
icon of riding range of electric trike
85+ MILES (PAS 1)
Miles Per Charge (Estimate)
icon of motor power of electric trike
750W POWERFUL MOTOR
Brushless Rear-Mounted Hub Motor
icon of lights of electric trike
FRONT & REAR LIGHTS
Powered by Main Battery and Controlled by Display
icon of bike frame of electric trike
STRONG & DURABLE FRAME
7A19 Aluminum Alloy Frame
icon of tire size of electric trike
16" X 4" TIRES
Addmotor Fat Tires
External picture of Triketan M-330F folding etrike
Arisetan Standard vs Mini Version

The Arisetan Mini version introduces a smaller tire size, opening up new possibilities for riders who prefer a more compact and nimble ride.

Arisetan M-360 Etrike
  Arisetan II M-360 Arisetan II M-360 Mini
Motor 750W Rear-Mounted Motor 750W Rear-Mounted Motor
Battery 20Ah UL-Certified Samsung Cell 20Ah UL-Certified Samsung Cell
Sensor Torque Sensor Torque Sensor
Fender Front and Rear Fenders Front and Rear Fenders
Parking Brake
Trailer Tube
Differential
Horn Horn+Bell Horn+Bell
5 in 1 Taillight
Suspension Front Suspension Front Suspension
Tire Size 20"X4" 16"X4"
Price $3299 $3199
Color
Arisetan II M-360 Mini

Suits riders in the height range of 5'6"-6'5", max load capacity up to 380 lbs.

310 size
Arisetan II M-360 2024

Suits riders in the height range of 5'7"-6'6", max load capacity up to 380 lbs.

310mini size
feature of rear-mounted motor of arisetan II M-360 2024
16'' X 4''
Mini Fat Tire

The smaller tires contribute to increased
maneuverability, allowing the Mini version to
effortlessly navigate through tight spaces with ease.

feature of rear-mounted motor of arisetan II M-360 2024
750W
Rear-Mounted Motor

The rear-mounted motor provides improved
traction, stability, and control for better handling
during acceleration and deceleration.

feature of parking brake of arisetan II M-360 2024
New Parking Brake

Stable parking can be achieved in a few simple
steps, just squeeze the handbrake and press the
button. The parking brake keeps your trike secure
on any surface, providing stability and preventing
accidental rolling.

feature of torque sensor of arisetan II M-360 etrike
Mid-axis
Torque Sensor

The motor dynamically adapts its power output
to match your pedaling force, enabling quick
acceleration or maintaining a steady pace.
This precise response from the etrike ensures a
smoother and more efficient ride experience.

feature of rear speed diferential of arisetan II M-360 etrike
Rear Speed Differential

With the speed differential, the rear wheels of the
trike can rotate at different speeds, promoting
better balance and reducing the risk of tipping
or loss of control. This feature guarantees a safe
and enjoyable ride, even when cruising at higher speeds.

feature of trailer tube of arisetan II M-360 2024 etrike
Enhanced Trailer Tube
For Cargo

With the trailer tube, attaching a trailer to the trike
becomes effortless, resulting in a substantial
increase in cargo capacity. Just connect the trailer
to the reinforced trailer tube, and you'll be
ready to effortlessly transport larger loads.

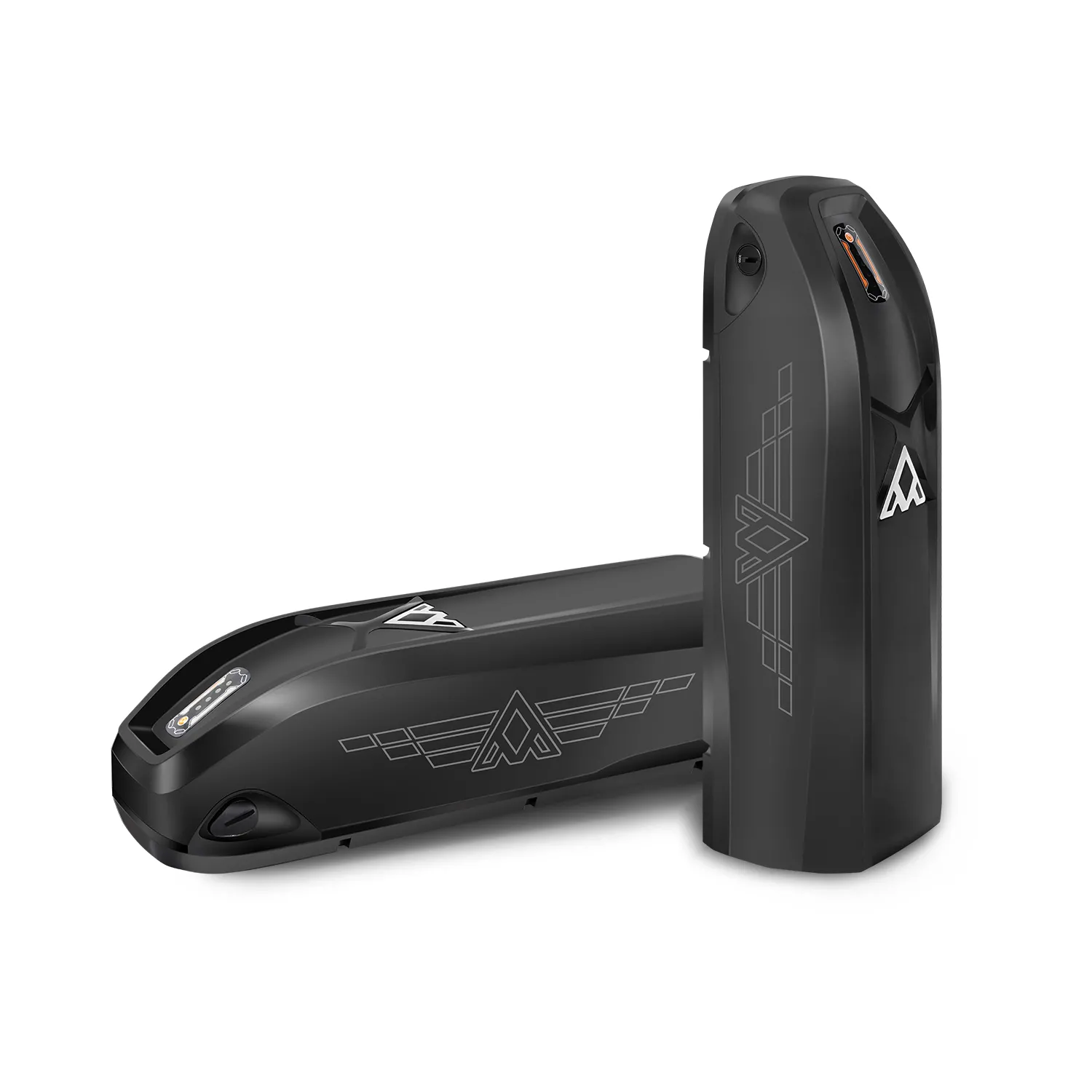

feature of Samsung cell battery of arisetan II M-360 2024 etrike
48V * 20AH
UL-Certified Battery

The 48V 20AH UL-certified battery combines safety,
efficiency, and durability. With its ample capacity,
you can confidently embark on longer journeys.

feature of Addmotor LCD Display of arisetan II M-360 2024 etrike
5 Inch LCD Display
with USB Port

The display showcases various riding metrics,
allowing you to keep track of essential data in real-time.

feature of disc brakes of arisetan II M-360 2024 etrike
Tektro 180mm
Disc Brakes

With a well-balanced braking property,
each wheel is equipped with its own brake,
ensuring optimal braking performance and control.

feature of EB 2.0 taillight of arisetan II M-360 2024 etrike
Addmotor EB2.0
Lighting System

The integrated lighting system not only improves
your own visibility but also enhances the safety
of others around you.

feature of foldable stem of arisetan II M-360 2024 etrike
Foldable Stem

The innovative design of the etrike's foldable stem offers effortless folding, resulting in a compact form that is easy to store or transport.

feature of 20Ah UL-certified battery of arisetan II M-360 2024 etrike
20AH High Capacity Samsung Battery

With a 48-volt system and a 20 AH battery, the trike offers an estimated maximum range of up to 85 miles when utilizing pedal assist.

feature of integrated button of arisetan II M-360 2024 etrike
Integrated Button

The electric trike is equipped with an integrated button conveniently located on the handlebar, allowing for easy and seamless access to a variety of functions.

feature of semi-recumbent frame of arisetan II M-360 2024 etrike
50mm Front Suspension

The front suspension of our etrike absorbs shocks and bumps, providing a comfortable and smooth ride.

feature of LCD Display with USB port of arisetan II M-360 2024 etrike
Addmotor 5 Inch LCD Display with USB Port

Featuring a clear and vibrant screen, the LCD display presents a range of important information at a glance.

feature of throotle with 7 levels of arisetan II M-360 2024 etrike
Twist Grip Throttle with Power-Cut Switch

750W of power-on-demand

feature of 4-inch fat tire of arisetan II M-360 2024 etrike
16'' x 4.0'' Mini Fat Tires

Addmotor 16'' x 4.0'' Fat Tires for all terrain riding

feature of integrated headlight of arisetan II M-360 2024 etrike
Integrated Headlight

This extra-bright headlight is powered by the main battery pack and can be conveniently controlled through the display.

feature of rear fenders of arisetan II M-360 2024 etrike
New Rear Fenders Added

Thoughtfully designed, these fenders offer reliable protection against splashes, dirt, and debris, resulting in a cleaner and more enjoyable ride experience.

feature of saddle with backrest of arisetan II M-360 2024 etrike
Big Padded Saddle with Backrest

Adjustable back and forth padded saddle and backrest offer you a comfortable ride, well rest in a long riding.

Technical specs
+Electronics
Motor
Bafang 48V*750W Rear Brushless Hub Motor, 90Nm motor torque
Battery
Samsung 48V*20Ah Cells Battery, Charging Time 10 Hours And Rated For 1,000 Charge Cycles
Display
Addmotor 5 Inch LCD Display
Controller
Addmotor 25A Controller
Throttle
Variable Speed Control - 1/2 Twist Throttle
HeadLight
Powered By Main Battery And Controlled By Display
Taillight
Powered By Main Battery And Controlled By Display, with Turning Signal
Wiring
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Upgraded 7 Level Pedal Assist, Torque Sensor
Charger
48V*2.0A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
+Components
Frame
7A19 Aluminum Alloy Frame
Front Fork
Oil Spring Fork with 25mm of Travel
Brake Lever
Tektro EL555-RT/EL550-RS
Rotors
MD300 180mm Front/Shanfeng*2 Pics 180mm Rear
Chain
KMC Rust Resistant Chain
Tires
16" X 4.0" Fat Tires
Chain Puller
Shimano 7 Speeds ALTUS M310
Horn
Sensitive Front Horn
Fender
Front and Rear Fenders
Basket
Metal Large Capacity Rear Basket with Waterproof Bag
Measurement

Suits riders in the height range of 5'6"-6 '5"

Max load capacity is 380 lbs

measurement image of arisetan II M-360 2024

1Total Length 72.7"

2Wheelbase 51.5"

3Handlebar Height 41.2"

4Seat Height 24.3"

5Stand Over 21.7"

6Bottom Bracket Height 11.3"

7Rear Basket 21.6''x 16.5''x 10.2''

8Rear Wheelbase 23.6"

9Handlebar Length 27.2"

10Reach 29.5"

11Width Of Rear Wheels: Outer Diameter: 31.29"; Inside Diameter:23.6"

12Bike Weight:45 KG / 99.21 lbs
