The FUN LIFE MAKER
The MOTAN m-430 is our newest approachable fat bike thanks to the step-thru design and 24" wheels and tires that make getting on and off this fat tire electric bike quick and easy. The rugged frame design, big fat tires and spring suspension fork make this is a perfect comfy bike for quick trips and longer adventures.
Easy Boarding Low Step-Thru Frame
Features a 23.5'' standover height, this cruiser bike is perfect for those who need a more approachable bike without sacrificing any function, very suitable for delivery bike or any journey with many stops.

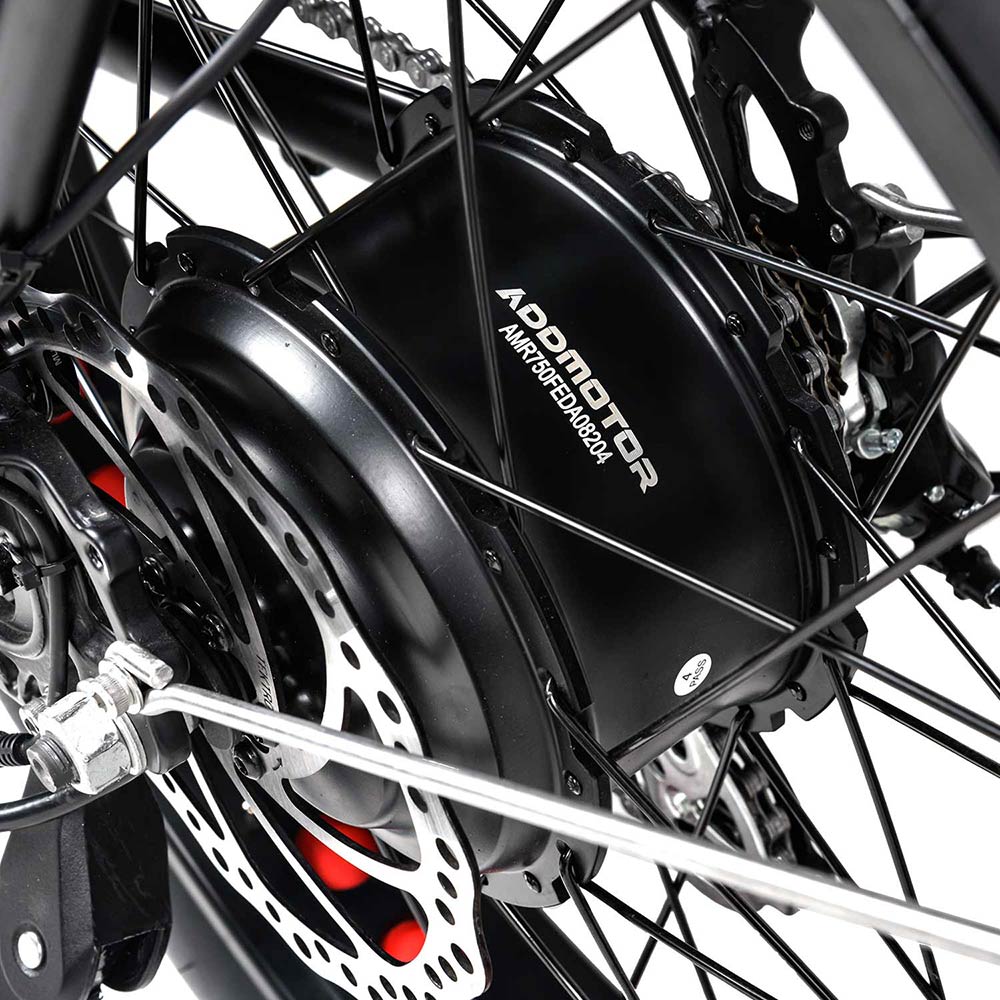

750w Brushless Rear-Mounted Motor
With 750w at your disposal, the high-speed brushless rear-mounted hub motor can help you conquer the most rugged terrains easily.
80MM Travel Addshox Front Fork
With preload-adjustable, the front fork gives you a more smoother and comfortable riding experience.
Adjustable U Style Curved Handlebar
An adjustable stem allows you to adjust to the right angle and heights for a comfortable upright position
Integrated Headlight
Powered using the main battery pack and controlled by the display.
Integrated Brake Taillight
Powered using the main battery pack and features brake light functionality that is activated any time the brakes are applied.
7-Speed, Cassette 14-28 Tooth
7 Speed Shimano Altus Derailleur, A wider range of gearing at your disposal means more torque for treacherous uphill climbs and maintaining pedal authority at top speed.
Detachable Rear Rack, Full-Cover Fenders
Let's you carry cargo, or cruising with your puppy. Full-cover fenders keep your pants dry and clean.
Technical specs
+Electronics
Battery

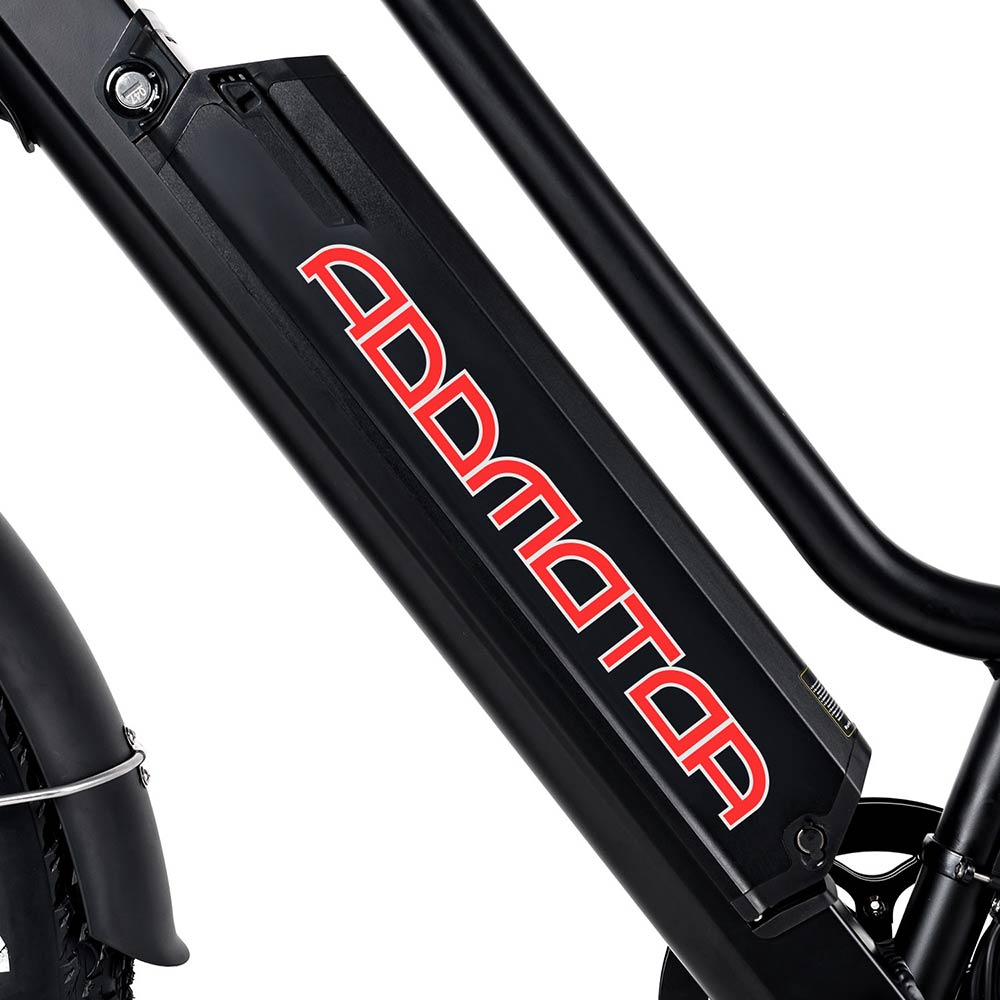

48V*16Ah Panasonic Lithium-Ion Cell Battery Removable Pack Charging time 6-7 hours Rated for 800 Charge Cycles
Motor
Addmotor 48V*750W Rear-Mounted Hub Brushless Motor
Display
Addmotor 5 Inch LCD Display with USB Port
Throttle
Variable Speed Control -- 1/2 Twist Throttle
Charger
2.5A US Standard DC Smart Charger
Controller
Addmotor 25A Controller
Integrated Light
Integrated Headlight and Tailight Powered by The Main Battery and Controlled by Display
Integrated Wiring
Water-Resistant Connectors And Wiring Harness
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Spring Suspension Fork with 80mm Travel, Preload Adjustable, and Lockout
Brake Lever
Mechanical Disc Brake, Aluminum Alloy Grip Lever with Motor Cutoff Switch Integrated Bell
Brake Calipers
Tektro Aries
Brake Rotors
Tektro 180mm F/R
Shifter
Shimano Right Thrum Shifter
Derailleur
Shimano Altus 7-Speed
Handlebar
Aluminum Alloy, Adjustable Angle, 26''
Grip
Durable Leather Ergonomic Grips
Fenders
Front and Rear Fenders Included, Full Coverage
Wheel
24 x 4.0'' Fat Tire
Saddle
Addmotor Comfortable Saddle
Seat Post
Promax Quick Release 32cm

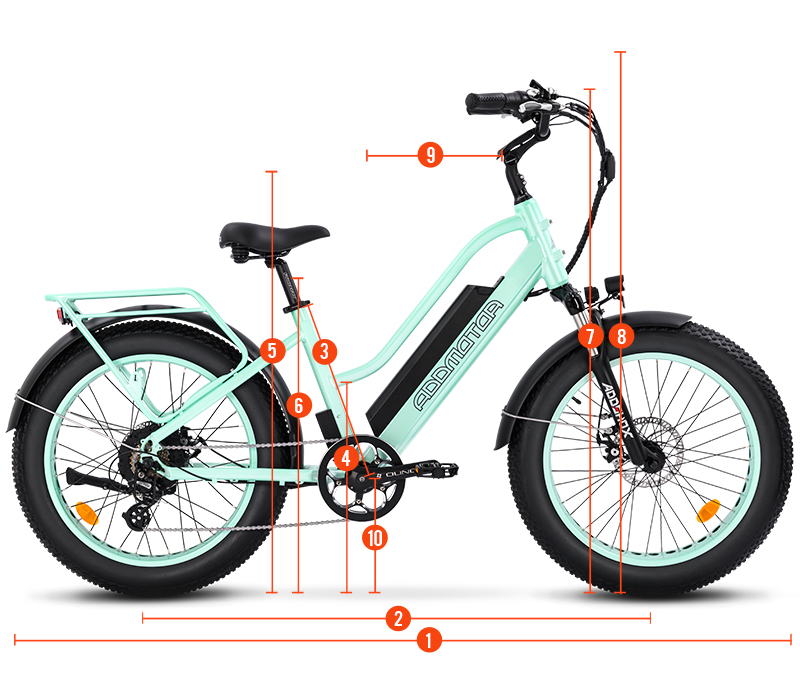

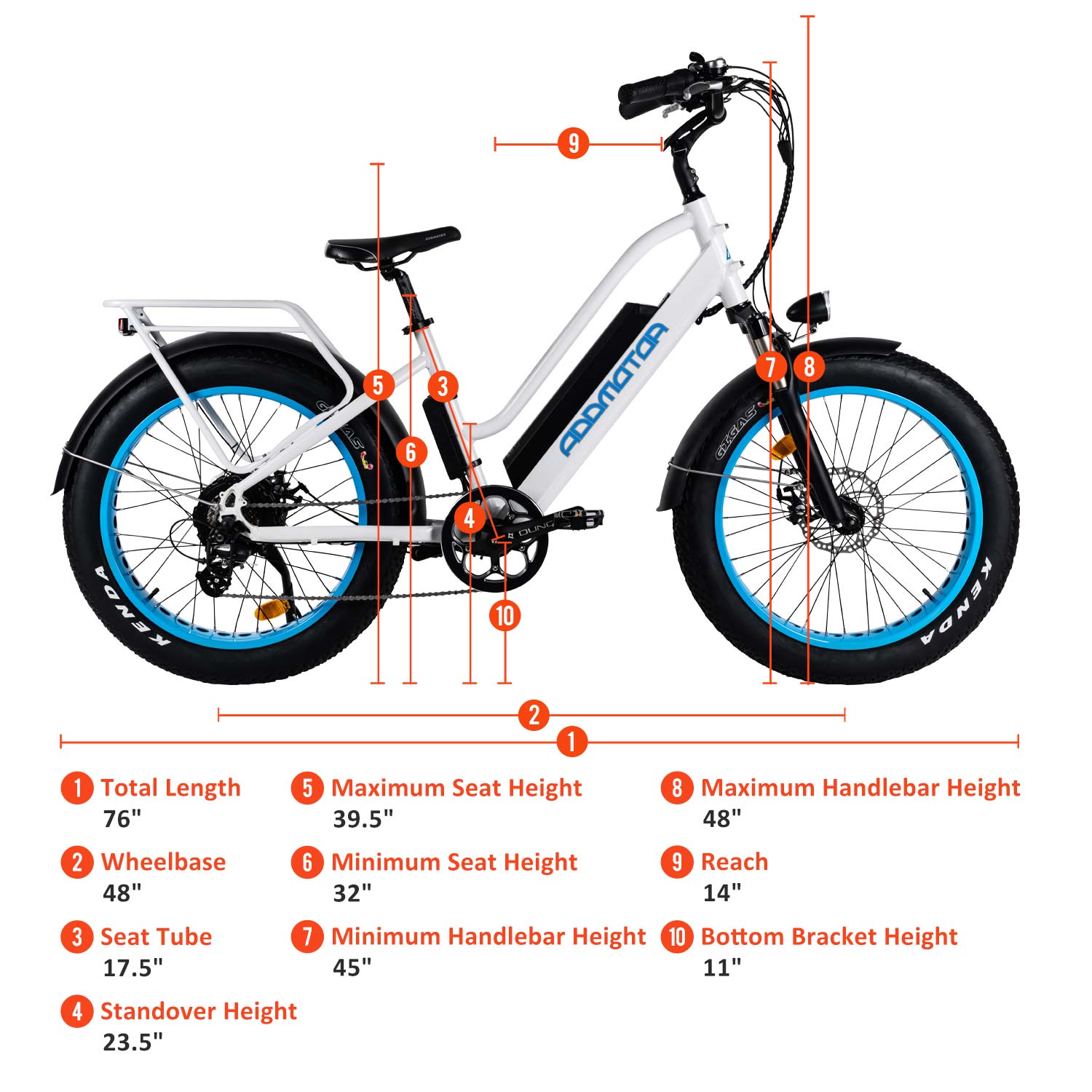

Measurement
M-430 is suitable for riders of height 5'2"-6" and max load capacity is 300 lbs
⑤Maximum Seat Height
39.5''
⑥Minimum Seat Height
32''
④Stand Over Height
23.5''
⑦Minimum Handlebar Height
45''
⑧Maximum Handlebar Height
48''
Bike Weight(Include Battery)
73lbs
Lowest Seat to Lowest Pedal
27.2"
