Addmotor M-560 Motan ebike all terrain in blue
rear-drive-motor-icon

Rear-Mounted Motor

48V*750W
rear-drive-motor-icon

Miles per Charge (Estimate, PAS1)

Up to 75+
rear-drive-motor-icon

Samsung Lithium-ion Battery

48V*20Ah
rear-drive-motor-icon

Payload Capacity

300lbs+55lbs

MOTAN M-560

All-Terrain Ebike
Price:
$1,699.00

Starting at $106/mo or 0% APR with . See if you qualify

    Please select the information you wantX
  • Color:
    Black
    Orange
    Khaki
    Army Green
    Blue
    Grey
Quantity:
-
+

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Video Review Video Review
Video Review

Six Fashion Color Options

Enjoy the electric bikes in six different stylish options. Ride in style this year with the M-560 P7.

560-olive-green
560-white
560-blue
560-black
560-orange
560-grey
560-olive-green
560-white
560-blue
560-black
560-orange
560-grey
Six Fashion Color Options
20.0 AH
Samsung Lithium-ion Battery
75+ Miles (PAS 1)
Miles Per Charge (Estimate)
48V * 750W
Rear-mounted Hub Motor
Integrated Headlight
Powered By The Main Battery Pack
Durable Frame
Stronger & Safer Frame Design
26 X 4" Fat Tires
All-Terrain Electric bike
All Terrain Fat
Tire Electric Bike

The M-560 P7 All Terrain Electric
Bike is a great fat tire e-bike
whether for daily commuting or
for exploring the woods for
hunting and adventuring.

750W Powerful And
Strong Motor Help
You Climb Uphills
Smoothly And Easily

The 750W high-speed brushless rear-mounted hub motor on the electric bicycle can assist you in traveling across even the most difficult terrains.

26 x 4.0" Fat
Tires Electric Bike

The 26 x 4" tires are incredibly popular
as they can allow you to ride in many
different conditions and environments.

20.0Ah
Samsung Battery

The 48v 20.0ah battery has strong
capacity & excellent longevity.

750W
Rear-Mounted Motor

Using a 750W rear hub motor,
the rider can easily shift gears
without putting too much strain
on the drive train, extending
the life of the components.

Enjoy Many Different
Types Of Adventures
Riding Range Of
Up To 75 Miles

Ride longer and farther on your next adventure.

Addmotor 5 Inch LCD
Display With USB Port

Includes many different functions
to assist you when riding the ebike.

Tektro 180mm
Disc Brakes

Easy to maintain and
provides great force for stopping.

Integrated Headlight

Powered using the main battery
pack and controlled by the display.

Details of Motan M-560 ebike Details of Motan M-560 bicycle
100MM Travel Addshox Front Fork

The preload-adjustable front fork gives you a smooth and comfortable riding experience.

20.0Ah Samsung Battery Pack

Rechargeable and removable 20.0Ah long-lasting Samsung lithium battery will give you enough juice to go long distances.

Detachable Rear Rack, Full-Cover Fenders

Carry cargo, mount a child seat, and take your kids along for the ride.

Tektro 180mm Disc Brakes

Easy to maintain and provides great force for stopping.

Comfortable Saddle

Ergonomic, high-quality, and relaxed with foam

Addmotor 25A Controller

25A

26'' x 4.0'' Fat Tires

Kenda 26'' x 4.0'' Fat Tires, 30TPI

750w Brushless Hub Motor

With 750w at your disposal, the high-speed brushless rear-mounted hub motor can easily help you conquer the most rugged terrains.

Integrated Headlight

Powered using the main battery pack and controlled by the display

7-Speed, Cassette 14-28 Tooth

A wider range of gearing at your disposal means more torque for treacherous uphill climbs and maintaining pedal authority at top speed.

Technical specs
+Electronics
Battery
48V*20.0Ah Lithium Battery Samsung Cells, Charging Time 5-6 Hours Rated For 800 Charge Cycles
Motor
Bafang 48V*750W Rear-Mounted Geared Hub Motor, 80N·M Torque
Display
Addmotor 5 Inch LCD Display with USB Port
Throttle
Variable Speed Control - 1/2 Twist Throttle
Controller
Addmotor 25A Controller
Headlight
Powered by Main Battery and Controlled by Display
Integrated Wiring
Water-Resistant Connectors and Wiring Harness
Charger
2.5A US Standard Smart Charger
Pedal Assist
5 Level Pedal Assist, Cadence Sensor
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Addshox Spring Suspension Fork, 100mm of Travel, Preload Adjustment, ABS+
Brake lever
Tektro Mechanical EL555-RT / EL550-RS
Rotors
Tektro MD-M300 180mm F/R
Chain
KMC Rust Resistant Chain
Tires
Kenda 26'' x 4.0'' Fat Tires, 30TPI
Derailleur
Shimano Altus 7 Speeds
Handlebar
Black Aluminum Handlebar
Pedal
Aluminum Black Pedal
Saddle
Addmotor Padded Comfortable Saddle
Seat Post
PROMAX Quick Release 30CM
Rear Rack
Detachable Sturdy Alloy Rack
Grips
Ergonomic, Silica Gel
Stem
Aluminum Alloy Stem
Freewheel
Shimano 7 Speeds
Fenders
Front and Rear
Measurement

Suits riders in the height range of 5'10"-6'6"

Max load capacity is 300 lbs

Measurement of Motan M-560 ebike

1Total Length 77"

2Wheelbase 48"

3Mini/Maxi Seat Height 33.5"/42"

4Seat Tube 19"

5Standover Height 32"

6Handlebar Height 43.5"

7Reach 18"

8Rear Rack 24.8*6.3"

9Bike Weight (Include Battery) 74 Lbs

10Lowest Seat to Lowest Pedal 28.3"

Video Review

x

0
votes
Answer:
Yes, the max speed can be changed in the dashboard (LCD Display). More detail information can be found in the page 32 of the maunal. Hope this helps.
By Manage on May 05, 2023
0
votes
1
votes
Answer:
On my bike the handlebar height cannot be adjusted. However, you can purchase a stem riser and then the handlebar height can be raised.
By Addmotor Customer on September 22, 2022
0
votes
Answer:
Hi, this M-560 P7 is rate 750W (1200W peak).
By Manage on September 06, 2021
2
votes
Question:
Answer:
What's top speed?
By Addmotor Customer on August 19, 2021

Post your question

Your question might be answered by sellers,manufacturers,or customers who bought this product.

Customer Reviews
Average rating: 4.9 based on 44 reviews
Share your thoughts with other customers
Write a review

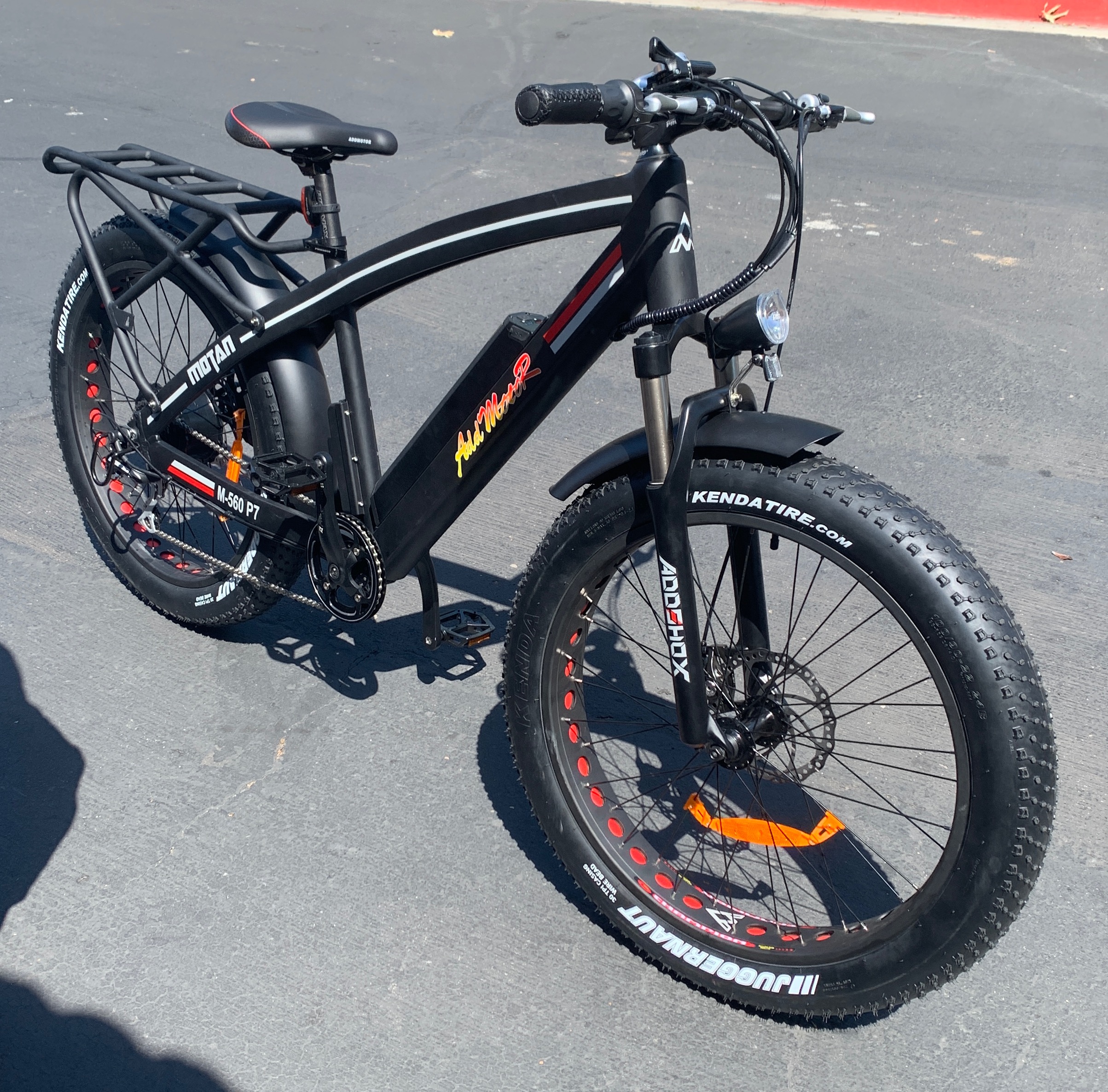

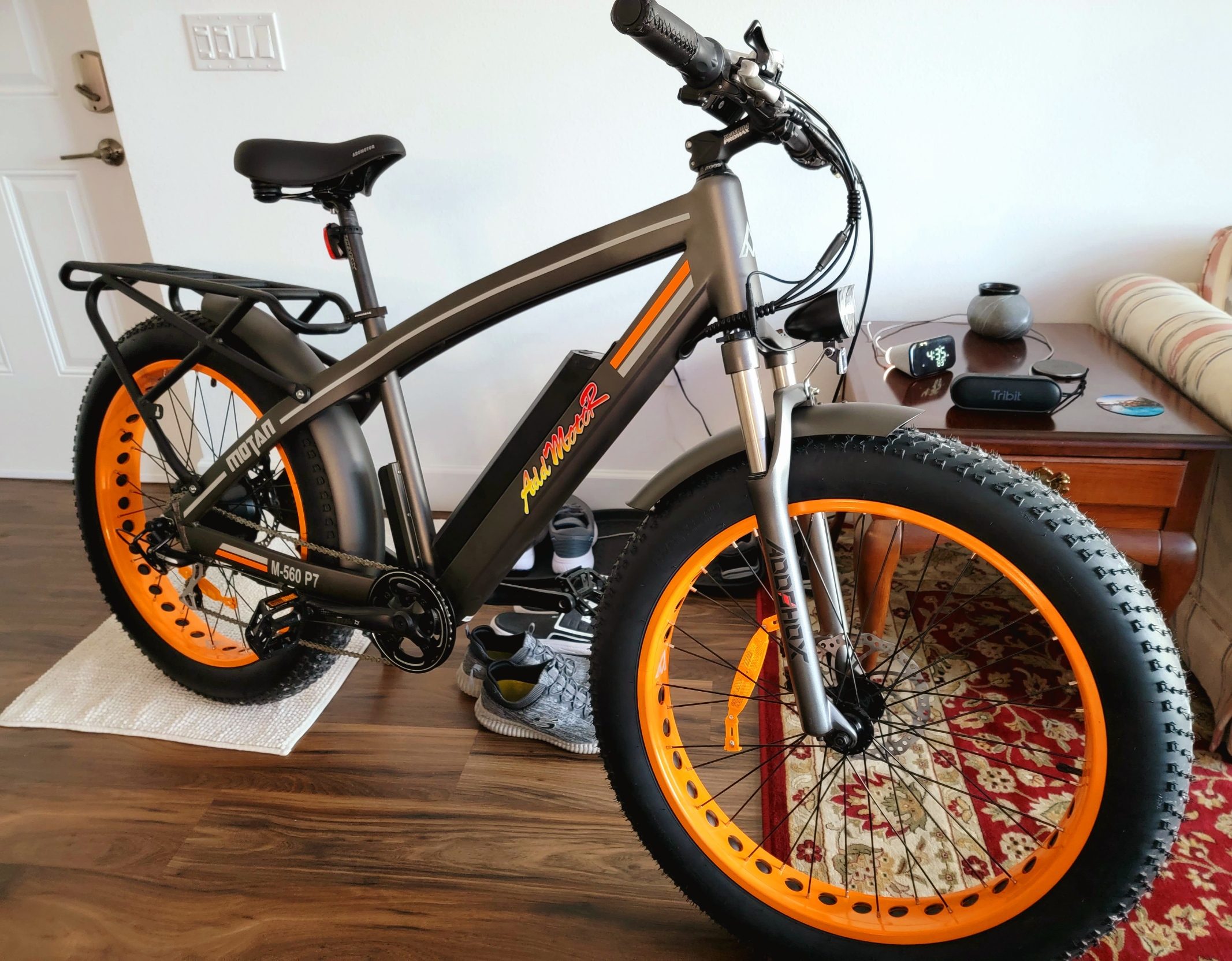

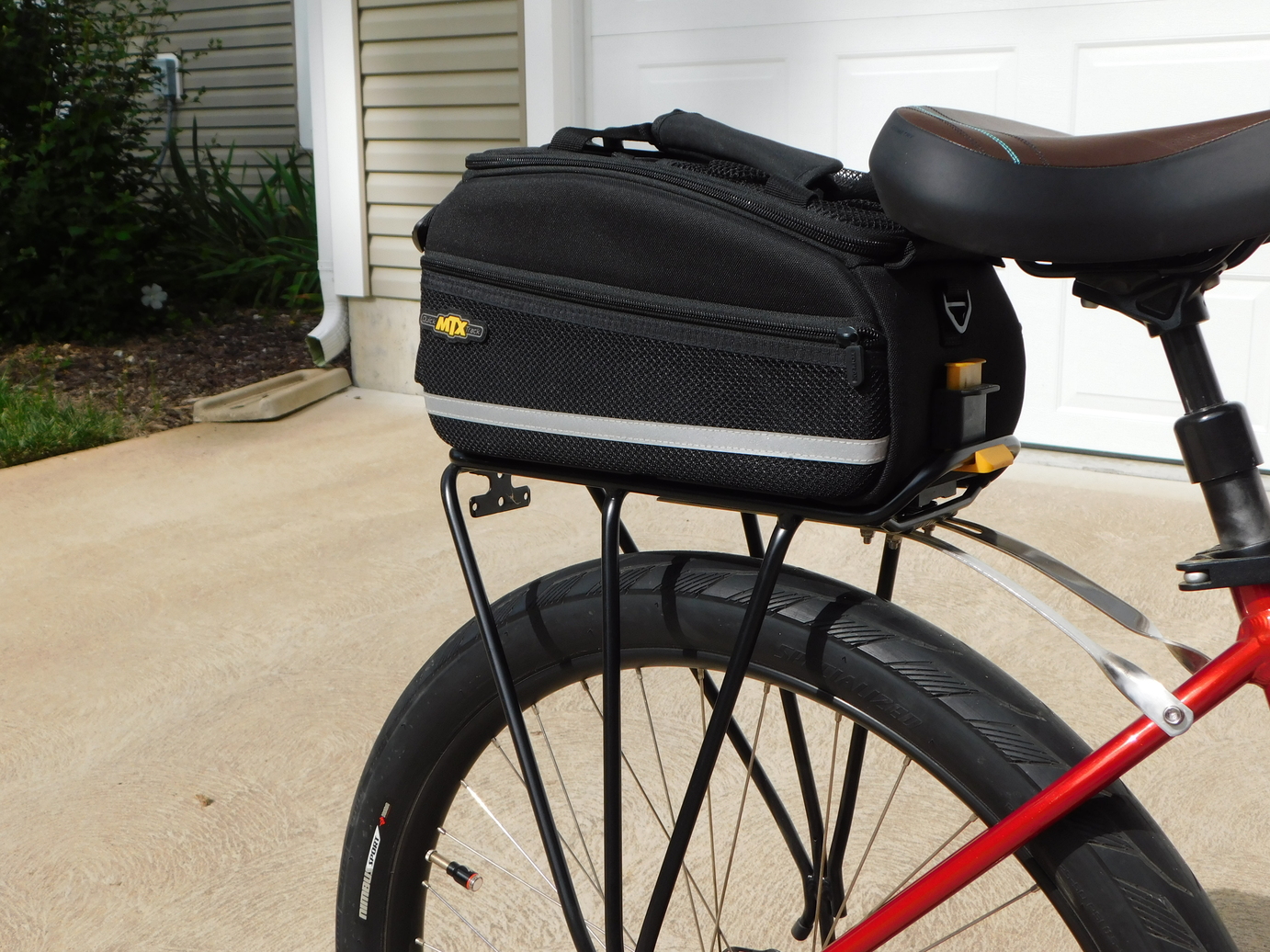

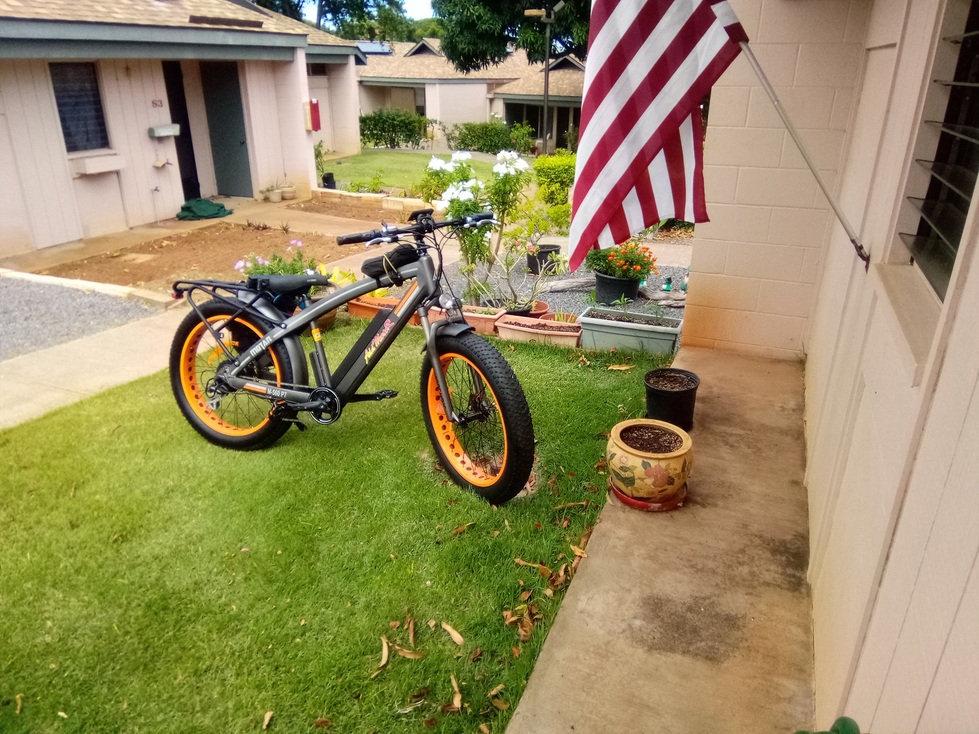

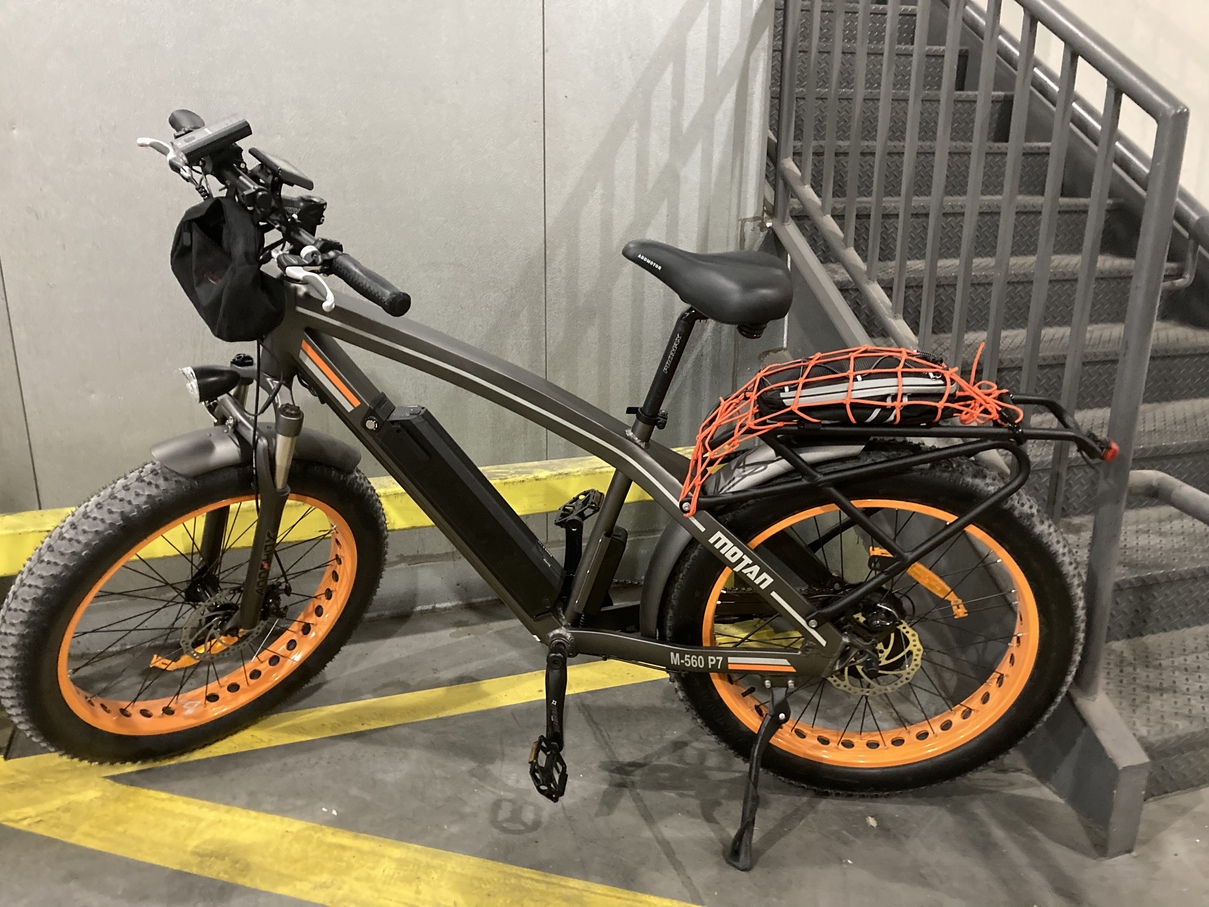

Reviews with images

Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
Real photos from customer reviews
  • Head Portrait
  • Jim***
  • Dec 22, 2022
One of the biggest challenges in shopping for an electric bicycle is understanding how far it will take you on a charge. The mileage advertised for this model is very conservative: it will likely take you much farther. This all depends on the level of the road, the rider's weight, the rider's strength, and the pedal assist level of the motor.  Here are two examples of how far I have stressed a battery charge.

I rode the bike 18 miles in a moraine (a mix of hills and flat land). At a full pedal assist level, the battery indicator lost only one or two bars.

Another route is on level ground (an old railroad converted to a bike path). I rode one direction 35 miles on pedal assist level 2 or 3. The motor was barely activated and I hit the midway point with all bars still visible on the battery indicator. I turned around to ride another 35 miles back home on level 4 and 5.

This bike is very capable.
  • By Man***
    Hi Jim, Thank you so much for sharing the riding experience with us. The M-560 is perfect to handle different terrain, no matter mountains, sand, snow, or grass. We are more than happy to know that you love it and brings you joy. Enjoy your ride:)Sincerely, Addmotor Tech
    Jan 02,2023 17:55:41

  • Head Portrait
  • Mic***
  • Sep 22, 2022
I'm giving this four stars because I have a few complaints. But first let me say the good stuff. This bike is a beast (I mean that in a good way). I haven't had it too long but the battery life seems great. The ride is smooth as silk, and it really eats up hills in battery assist mode. Construction of the bike is solid. It was a breeze to assemble (with the one caveat below).

Okay now the complaints. The bike was damaged in transit. The derailleur hanger was badly bent. I contacted Addmotor and they sent me a new hanger for no charge. I ended up taking the bike to a bike shop to replace the hanger, and also to have them check out the derailleur itself (which was okay). Addmotor credited me the $45 the bike shop charged. So all that ended okay but it took way too long, and with way too many emails going back and forth between me and Addmotor. It should have worked like this: Addmotor should have delivered a replacement bike fully assembled, and hauled away the damaged bike. But companies don't work that way anymore, which is too bad.

Another complaint. The handlebars are set too low (I am exactly six feet tall). I ordered a stem riser to raise the handlebars and that took care of the problem. Addmotor should either include a stem riser with every bike, or build a bike with adjustable handlebar heights. This is a design flaw in my opinion.

Another complaint. The seat can be adjusted up and down, and it can be moved a bit forward and backward. But it cannot be tilted forward or backward. I would like to adjust the seat angle just a bit but it's not possible. I even had the bike shop check me on that, and they verified the design of the seat doesn't allow for the angle to be adjusted. That is a significant design flaw in my opinion. Addmotor doesn't sell seatposts on their website. I could buy an aftermarket seatpost but Addmotor uses some weird, nonstandard diameter posts and so the aftermarket seatposts that would work for this bike are kind of expensive.

One more complaint, although it's a small one. There's no place to secure a water bottle holder. That's another design flaw.

Finally, a recommendation for Addmotor. They should sell a rear rack with locking trunk bag, the kind where the bag slides into a track on the rack and locks in place. I've included a picture of a Topeak Explorer Rear Rack and matching Topeak Explorer Trunk Bag as an example. I had one on my last bike and I loved it. You can quickly and easily remove it and take it with you. Instead, I got a bag that attaches to the rear rack with velcro straps.
  • By ***
    The Seatpost diameter is 28.6mm.
    Apr 24,2023 17:35:48
  • By ***
    What is the seat post diameter?  I am trying to find an alternative seat post for offset.

    Thanks
    Jan 25,2023 16:44:42

  • Head Portrait
  • Mar***
  • Sep 06, 2022
M-560 P7 Excellent Bike!
Great performance at a really nice price.
37 miles, 5000 ft of climbing, 1 battery load!
This is my first e-bike after decades of riding regular hardtail mountain bikes. I needed such a bike to handle the extremely rugged/steep/narrow backcountry gravel/dirt roads in the National Forest area around the VA/WV state line where I now live.
After several break-in rides totaling about 70 miles to get accustomed to this HEAVY DUTY bike, I took this on my first "real" ride just yesterday. It was a 37-mile loop up and over the mountains separating VA and WV (and up and over again coming back, of course) which includes 5000 feet of total climbing. It performed wonderfully!
I decided from my break-in rides that it might be possible to do it only using Pedal Assist Level 2 (PAS 2) the entire time - and it was! As I rode, I also decided to not go below 2nd gear on the climbs if possible. It totally worked! This let me get an awesome workout while pedaling up the 2 longest continuous climbs of about 1500 ft and 2000 ft. I got those 2 climbs in during the first 20 miles of the ride and it took 80% of the  first battery - at which point I swapped in the spare. I then had a LOT of downhill for the rest of the ride, and the 2nd battery never did drop down from it's full charge (5 bars) reading.
Absolutely exceeded my expectations.
There are other bikes from other manufacturers that appear to be very similar to the M-560, but they were all significantly more expensive from what I recall. So, I chose Addmotor. I am very glad I did!
  • By Man***
    Thanks for your review, Mark!  We can see from your comments that you are a cycling enthusiast.  Thanks for choosing our E-bike, your evaluation is the greatest encouragement to us and the motivation for us to continue to strive to improve the quality of our products and services!  Please enjoy with your lovely M-560 electric bike.  Sincerely, Addmotor Tech
    Jan 03,2023 11:18:54

  • Head Portrait
  • Jam***
  • Aug 17, 2022
I received my M-560 P7 bike a couple of weeks ago. I was waiting to get some use before writing a review. I now have about 250 kms on it and this bike is fantastic. I live in a city with big hills and it gets me to work and back, in a suit, with hardly a sweat. Fun to ride when not commuting and on the trails as well. Lots of power, great battery life and tons of comments on it wherever I go. The bike looks great in the product photos but the pictures don't do it justice. Very solid, smooth and enjoyable ride. Thinking of getting one for my wife too.

Only complaint was the shipping. I know this isn't Addmotors fault but FedEx messed up the shipping from start to finish. Delays, not showing up on days they said they tried to deliver etc. The bike came with a free gift, which was returned to the shipper by FedEx, and never resent. I will now be looking for a replacement saddle bag, the gift.

From a nearly 100% satisfied customer, would buy again. Thanks,
James
  • By ***
    Hi James,

    Thanks so much for your kind support and love to Addmotor.
    Hope you could enjoy the riding.

    And we will listen to your feedback and improve our shipping service.

    Thanks again,
    Addmotor Team
    Sep 08,2022 17:10:37
