M-150 R7 16AH

Integrated Wheel Folding Electric Bike
(0 Review)
Price:
USD
$1799.00

    Please select the information you wantX
  • Color:
    Black
    Orange
Quantity:
-
+
48V*750w
Rear-Mounted Motor
Up to 65+
Miles per Charge(Estimate)
48V*16Ah
Panasonic Lithium-ion Battery
280lbs
Payload Capacity

Fun Features Fun Features
Fun Features

Measurements Measurements
Measurements

Opening up a greater variety of fun lifestyle

Easy folding and space-saving. The M-150 R7 built up with a folding top-tube, a foldable mainframe, and folding pedals for a very low-profile folded design that you can fold easily within 10 seconds. Its compact size means that you can keep by your feet at your desk, rather than risking leaving it outside. It also means a lot if you like to take your bike on a long-distance holiday, cus you can be able to collapse the bike into a manageable size making you store it portable in a truck or SUV and save space.

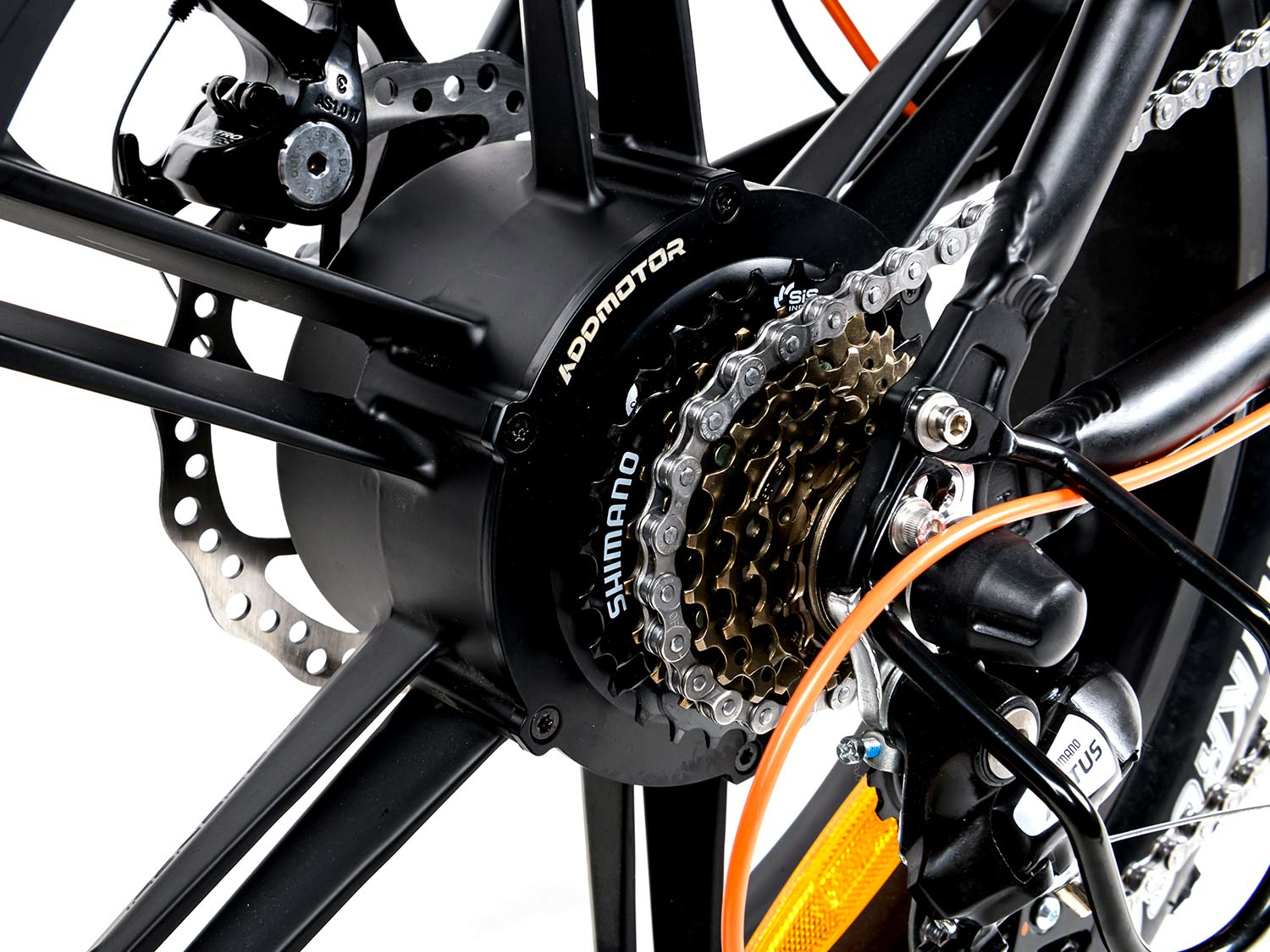

750w Integrated Wheel Motor

With 750w at your disposal, the high-speed brushless rear-mounted hub motor can help you conquer the most rugged terrains easily.

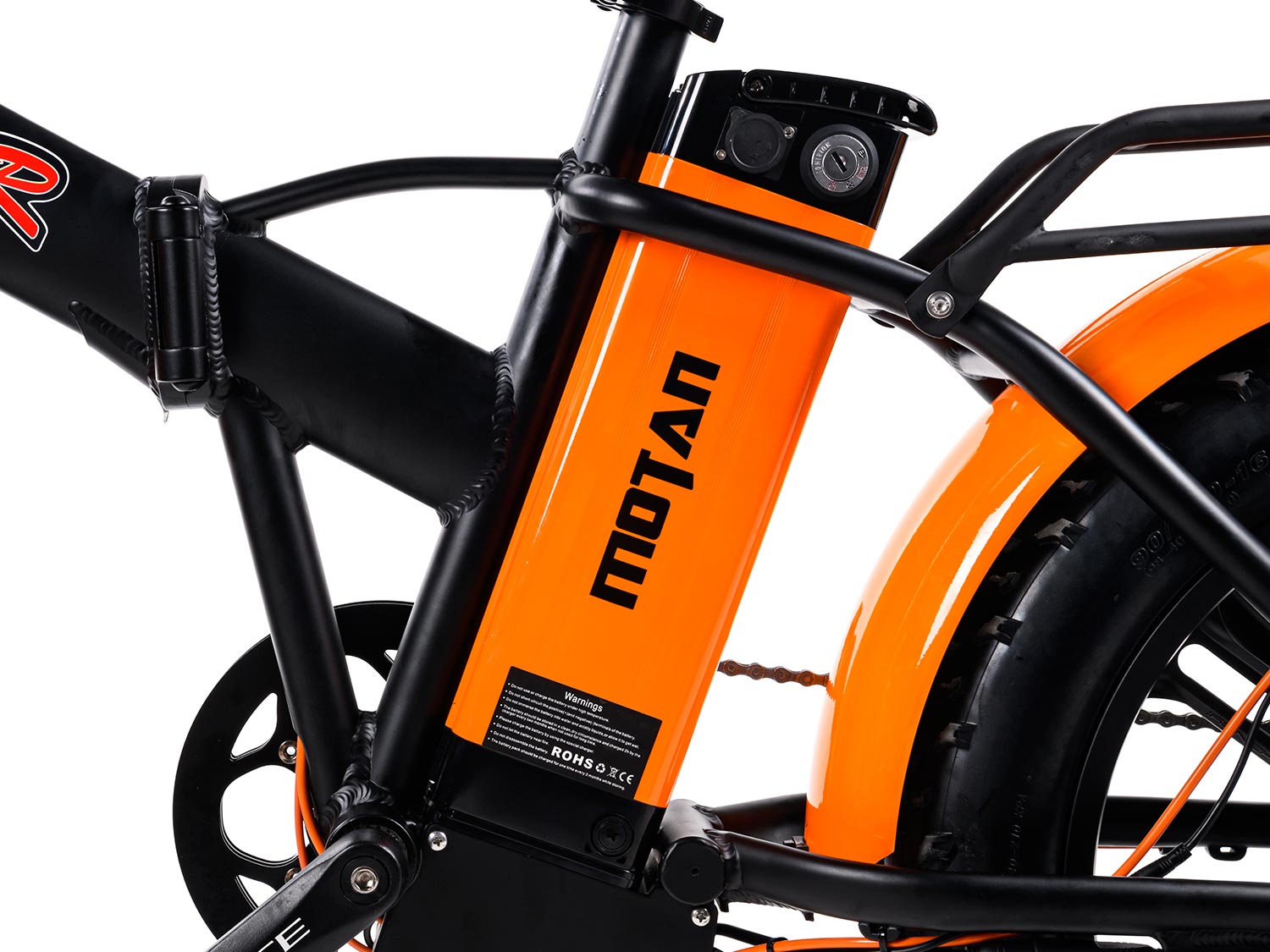

Panasonic Battery Pack

Rechargeable and removable long-lasting Panasonic lithium battery will give you enough juice to go long distances.

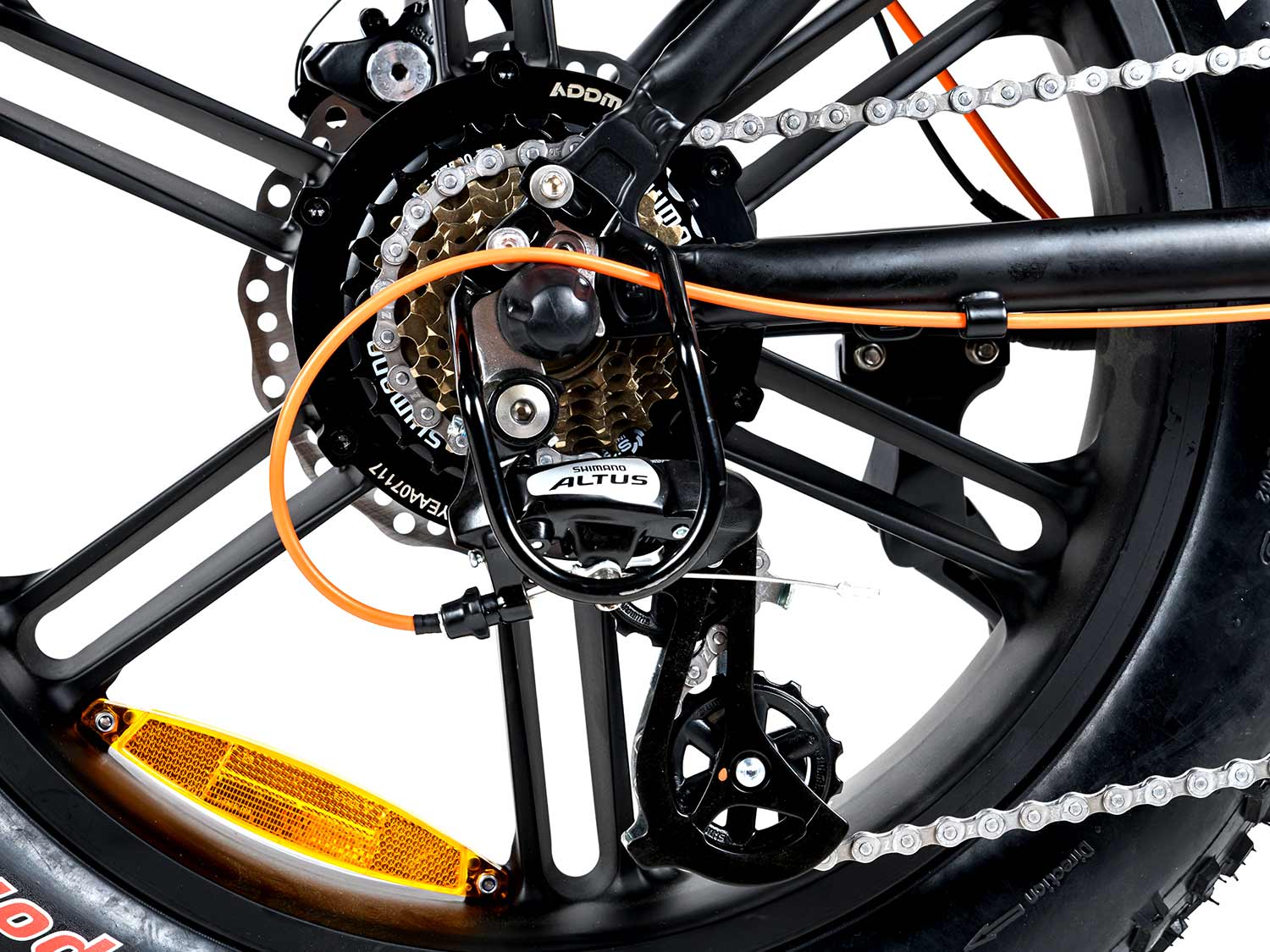

7-Speed, Cassette 14-28 Tooth

7 Speed Shimano Altus Derailleur, A wider range of gearing at your disposal means more torque for treacherous uphill climbs and maintain pedal authority at top speed.

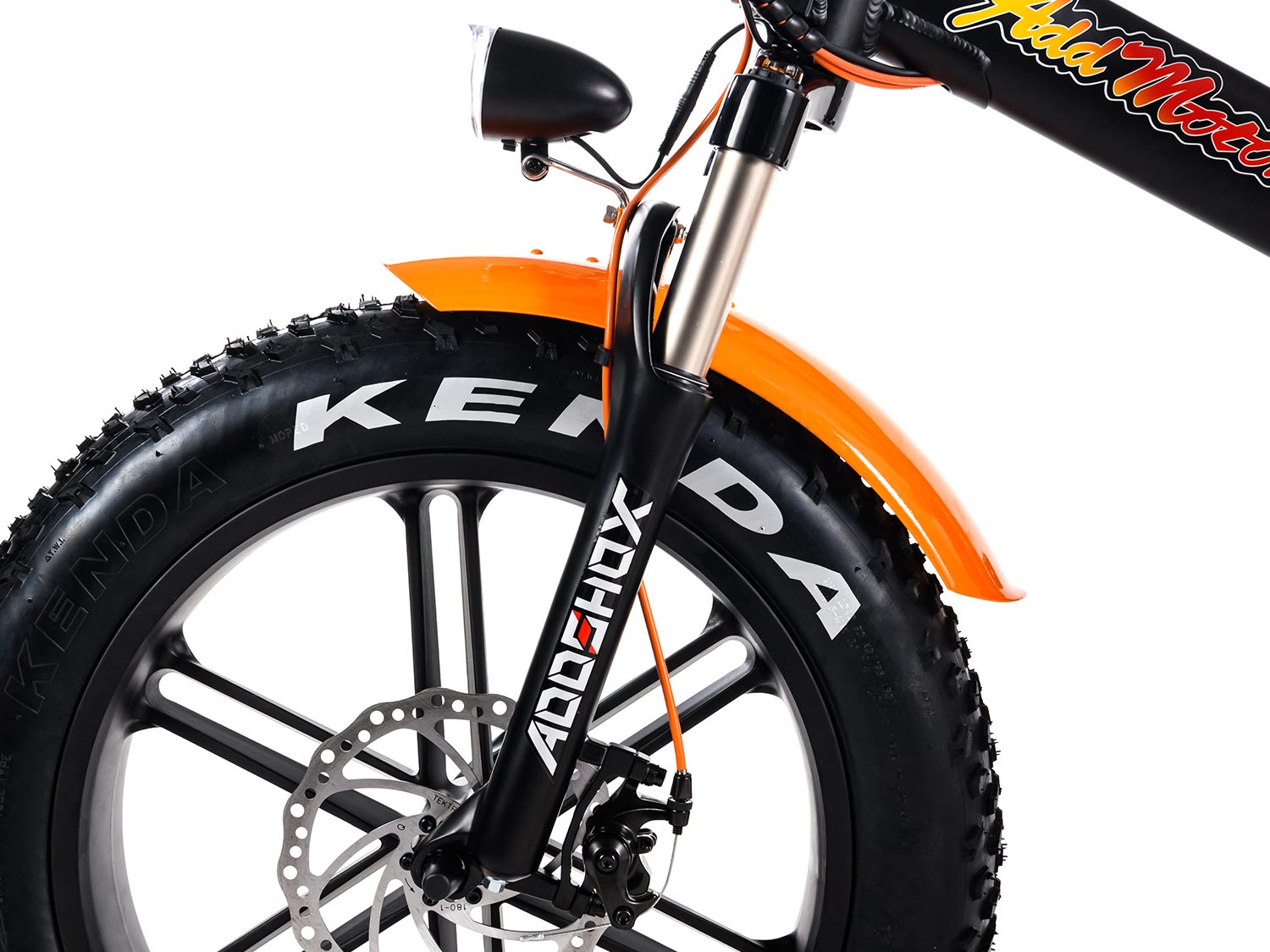

70MM Travel Addshox Front Fork

With preload-adjustable, the front fork gives you a more smoother and comfortable riding experience.

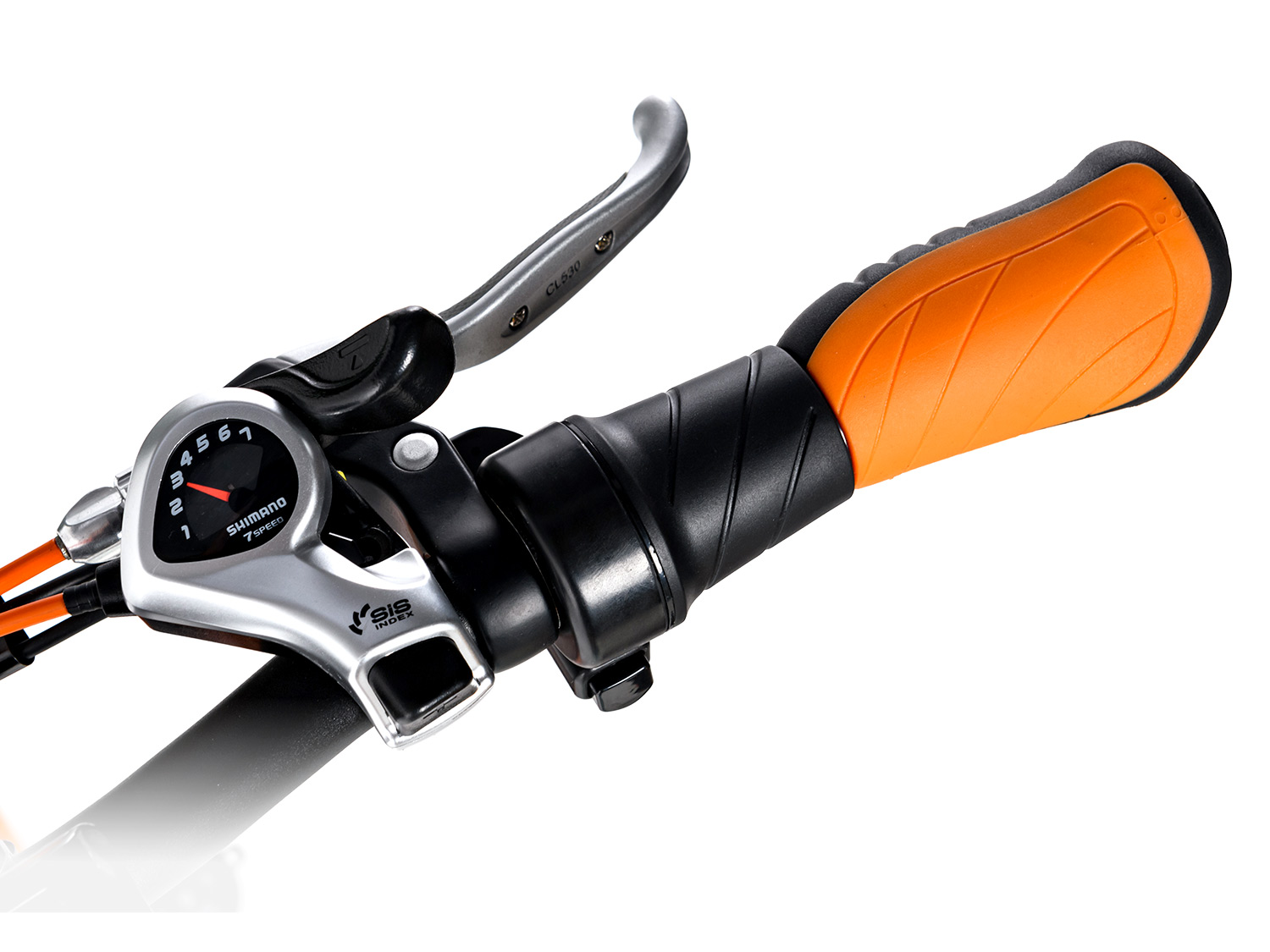

Twist Grip Throttle with Power-Cut Button

750W of power-on-demand

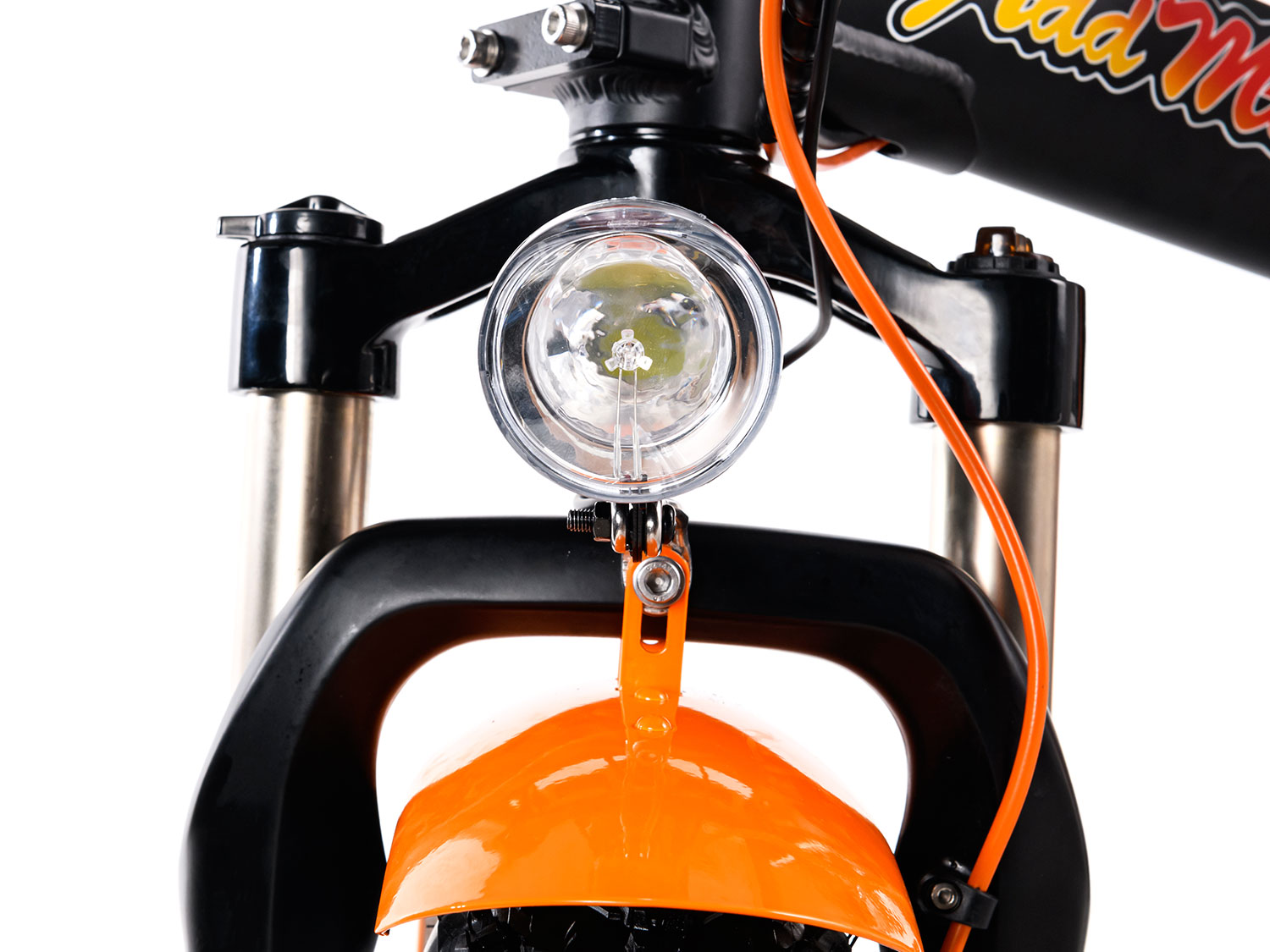

Integrated Headlight

Powered using the main battery pack and controlled by the display.

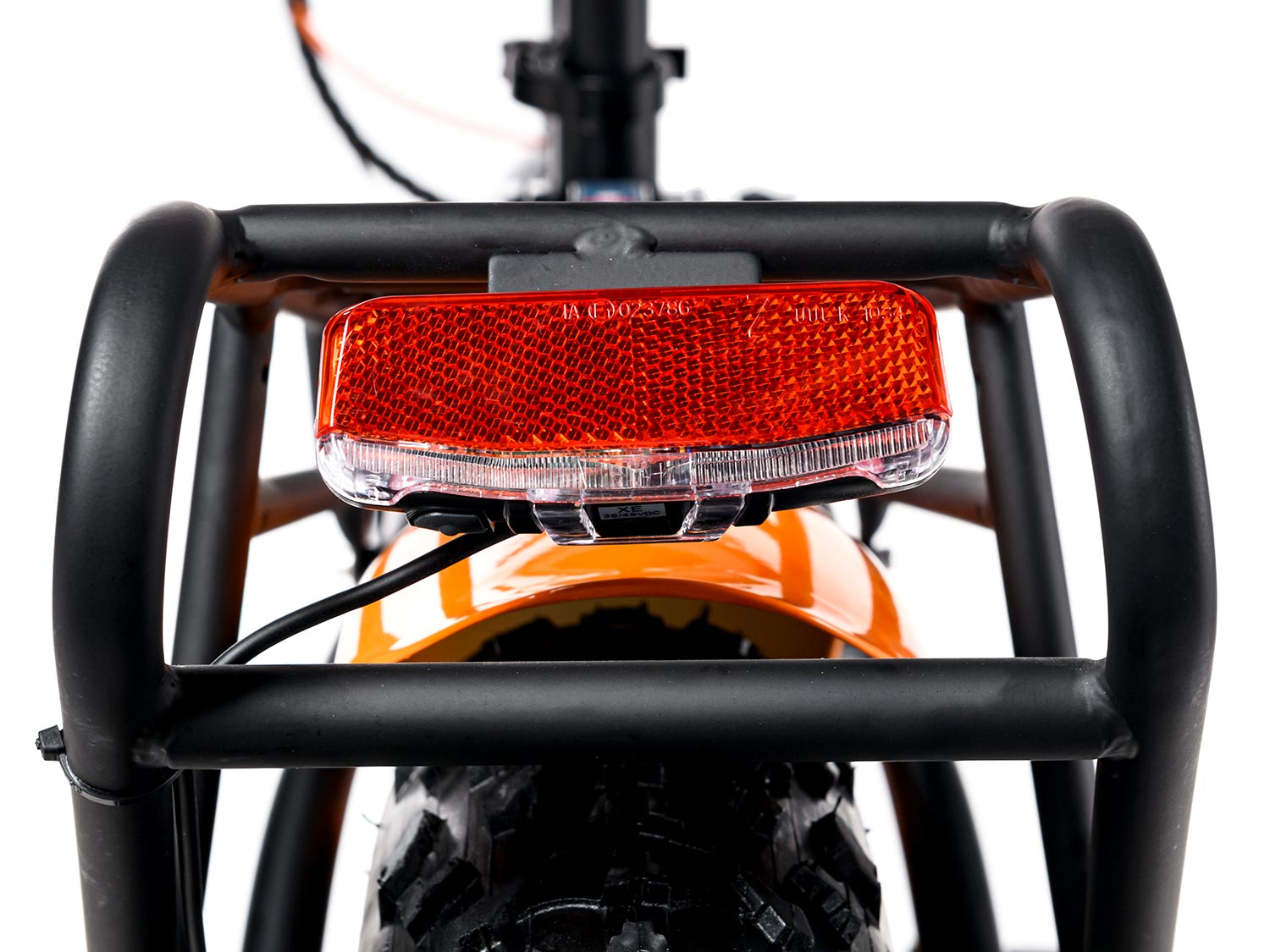

Integrated Brake Taillight

Powered using the main battery pack and features brake light functionality that is activated any time the brakes are applied.

Folding, Telescoping Handlebar Stem

Raise or lower the handlebar stem to your desired comfort level and take advantage of the folding hinge to make the m150r7 as small as possible for storage.

Technical specs
+Electronics
Battery
48V*16Ah Lithium Battery Panasonic Cells, Charging Time 6-7 Hours Rated For 800 Charge Cycles
Motor
Bafang 48V*750W Integrated Wheel Motor (Rear-Mounted Geared Hub), 80N·M Torque
Display
Addmotor 5 Inch LCD Display with USB Port
Throttle
Variable Speed Control - 1/2 Twist Throttle
Controller
Addmotor 25A Controller
Headlight/Taillight
Powered by Main Battery and Controlled by Display
Integrated Wiring
Water-Resistant Connectors and Wiring Harness
Charger
2.5A US Standard Smart Charger
Pedal Assist
5 Level Pedal Assist, Cadence Sensor
+Components
Flame
6061 Aluminum Alloy Frame
Front Fork
Addshox Spring Suspension Fork, 70mm of Travel, Adjustment and Lockout
Brake lever
Tektro Mechanical EL530-RT / EL530-RS
Rotors
Tektro MD-M300 180mm F/R
Chain
KMC Rust Resistant Chain
Tires
Kenda 20'' x 4.0'' Fat Tires
Derailleur
Shimano Altus 7 Speeds
Handlebar
Black Aluminum Folding Handlebar
Pedal
Aluminum Black Folding Pedal
Saddle
Addmotor Padded Comfortable Saddle
Seat Post
Quick Release 30CM
Rear Rack
Detachable Sturdy Alloy Rack
Grips
Ergonomic, Silica Gel
Stem
High-Rise Foldable Stem with 4'' Vertical Adjustment, Quick Release Handlebar Clamp
Rear Rack
Detachable, Aluminium-Alloy
Fenders
Front and Rear

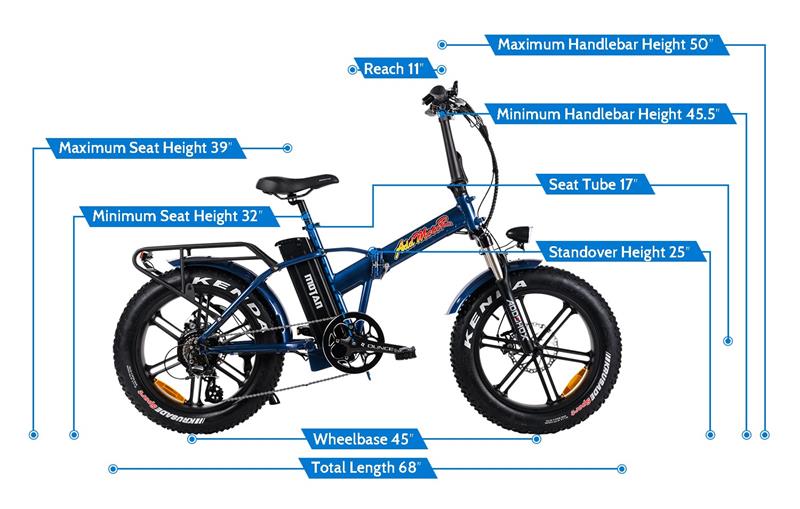

Measurement
The powerful rear-mounted motor strong enough to carry a rider whose height range of 5'4"-6'4" and weigh 280lbs
Total Length
68 ''
Wheelbase
45''
Maximum Seat Height
39''
Minimum Seat Height
32''
Stand Over Height
25''
Minimum Handlebar Height
45.5''
Maximum Handlebar Height
50''
Seat Tube
17''
Reach
11''
Folded Up
44*21*29''
Rear Rack
15*6.5''
