Wildtan M-5600 Mid-Drive Electric Bike 1000W

1000W Mid-drive Bafang Motor Fat Tire Electric Bike
(1 Review)
Price:
$2799.00
$3299.00

    Please select the information you wantX
Quantity:
-
+
48V*1000W
Mid-Drive Motor
Up to 60+
Miles per Charge(Estimate)
48V*17.5Ah
Samsung Lithium-ion Battery
350lbs
Payload Capacity
NOTE: We are currently NOT selling this product to customers with New York City shipping and billing addresses due to Local Law 39.

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Video Review Video Review
Video Review

Addmotor Wildtan M-5600 Mid-Drive Electric Bike 1000W

Conquer The Terrains

Wildtan 100w fat tire mid-drive electric bike is built to be taken up hills, down log roads, and through wooded areas where regular city electric bikes would not be equipped to handle. A 1000W Bafang Mid-drive motor hidden in the frame, coupled with a long-lasting 17.5Ah Samsung battery, allows you to freely shuttle through various terrains and enjoy the fun of exploration.

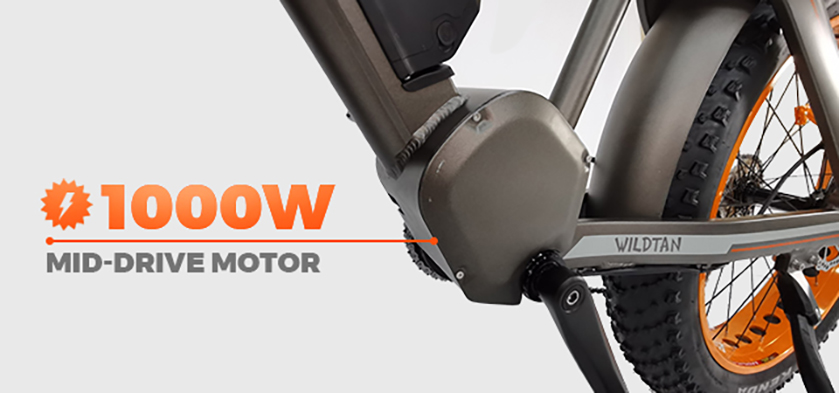

Bafang Mid-Drive Motor

BBSHD Bafang Mid-Drive Motor

Rated power at 1000w, the mid-drive motor provides strong power constantly enough in continuous steepest hills. Sit encased in the frame between the pedals and offer a more balanced, the mid-drive motor has a variable speed cutoff sensor that makes the shift smoother. The minimum ratio 1.125:1 helps the bike own a 160N·M super high torque, any tough terrains never be a big deal.

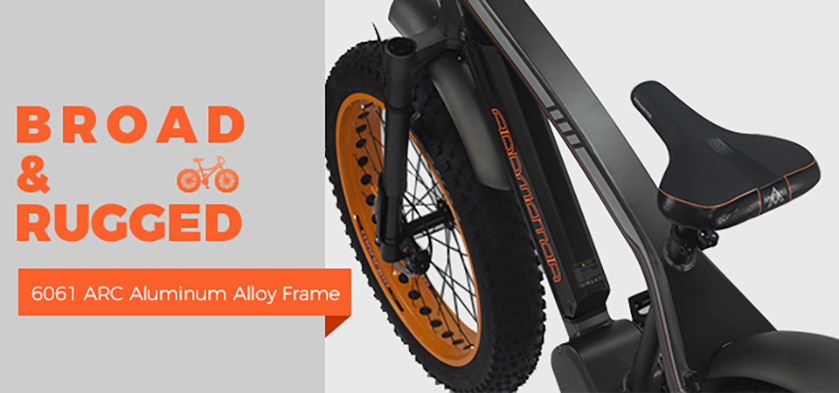

6061 Aluminum Alloy Frame

6061 Aluminum Alloy Frame

Designed with a high-quality 6061 aluminum alloy frame, the WILDTAN mid-drive electric bike is super solid and durable to carry a lot including you and your gears. With a professional flat welding process, the extra bold frame shows up a simple but strong, as well as a unique look.

17.5Ah Samsung Battery

17.5Ah Samsung Battery

Ultra-large capacity 17.5Ah Samsung battery allows this mid-drive electric bike to go deep into the wood, and you won’t worry about running out of juice while in a 65 miles long-distance adventure. After a whole day hunting or fishing far away, just using the throttle home with your spoils in ease.

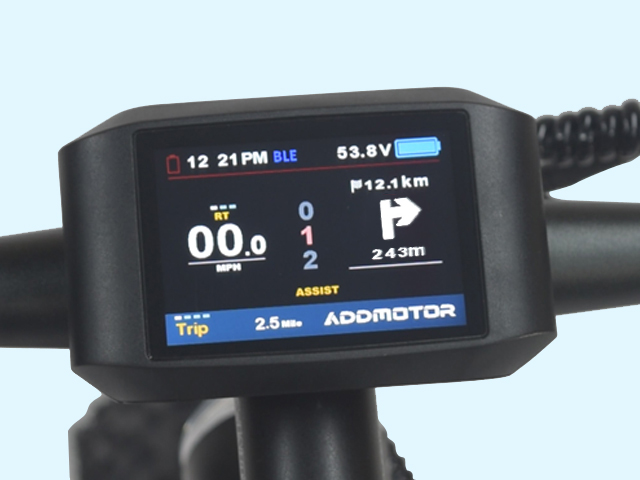

5 Inch LCD Smart Color Display

5 Inch LCD Smart Color Display

The mid-drive electric bike uses a smart color display the has a Bluetooth connection & Google map direction functionality. Full-Color LCD Display for easier viewing, clearly legible and intuitive to use.

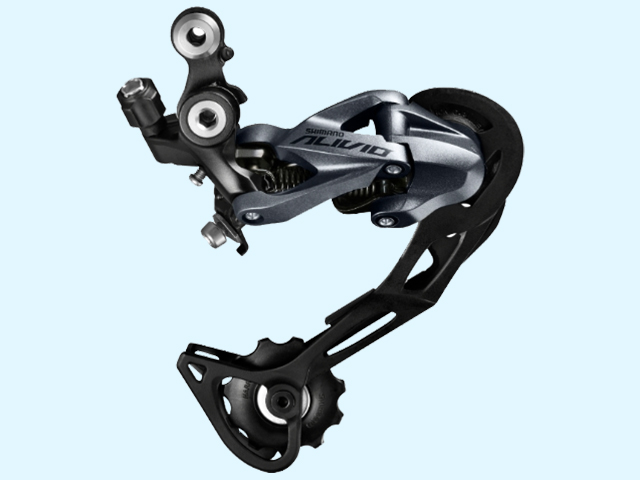

Derailleur

Derailleur

Unlike other Addmotor bikes, the WILDTAN mid-drive electric bike features SHIMANO ALIVIO 9 Speed that provides responsive rear shifting for bike drivetrains. Technology keeps the derailleur safe from trail obstacles.

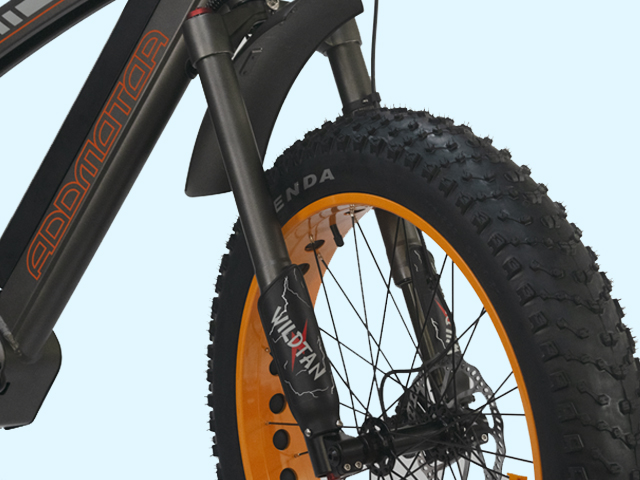

Air Fork

Air Fork

·  Air Spring Inverted Fork with 120 mm of travel
·  Rebound / Air Pressure Adjustable
·  Manual Lock-out Adjustments
·  Best used for cross country, trail and all-mountain riding

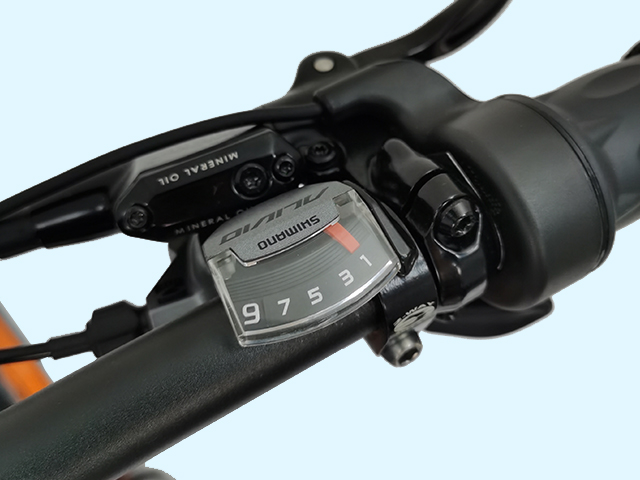

Right Shift

Right Shift

·  SHIMANO ALIVIO Right Shift Lever with Shifting Sensor
·  Suited to quick shifting
·  Able to downshift three gears in one stroke

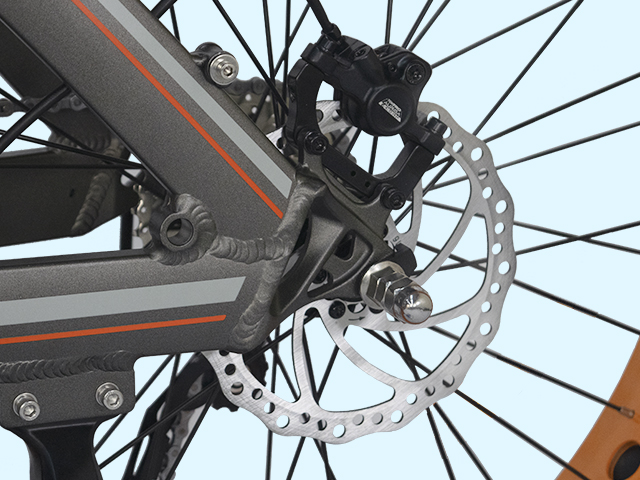

Disc Brake

Disc Brake

·  Tektro Hydraulic Disc Brake HD-E500 With Motor Cutoff Sensor
·  Easier, requires retinal tension braking
·  More suitable for braking in any weather conditions

Technical specs
+Electronics
Battery
48V*17.5Ah (840Wh) With Lithium Samsung 35GA Cells, rated for 800 charge cycles
Motor
1000W Bafang BBSHD Mid Drive Motor With 160 Nm of torque
Display
Addmotor 5 Inch LCD Smart Color Display with Bluetooth
Throttle
Right Hand Half Twist Throttle
Controller
Integrated Bafang 30A Controller
Lights
Front: Electric headlight TRENDO by Spanninga
Rear: Battery taillight by Spanninga
Integrated Wiring
Water Resistant Connectors And Wiring Harness
Charger
48V, 2.5 Amp smart charger
Pedal Assist
Intelligent 5 level pedal assist with an integrated speed sensor
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Air Inverted Fork with 120 mm of travel, Rebound / Air Pressure Adjustable / Manual Lock-out Adjustments
Brakes
Tektro Hydraulic Disc Brake HD-E500 With Motor Cutoff Sensor
Brake Rotors
Tektro 180 mm front and rear
Chain
KMC X9 Rust Resistant Chain
Tires
Kenda Juggernaut Pro 26" x 4.5" Fat Tires
Derailleur
SHIMANO ALIVIO 9-speed
Handlebar
Promax Aluminum, 700mm wide, 5° Angle Sweep Back
Pedal
Wellgo aluminum with reflectors, standard 9/16" x 20 TPI threading
Saddle
Exclusive Addmotor Well Padded Saddle
Seat Post
Promax Aluminum 320 mm x 28.6 mm
Seatpost Clamp
Promax Quick release
Stem
Promax Aluminum 100mm + Adjustable Angle (±60°)
Rims
26" Aluminum Double Wall, 36H, With Front Thru-axle Hub
Grips
Durable Imitation leather ergonomic grips
Spokes
12-gauge stainless steel
Freewheel
Exclusive Addmotor Stainless Steel 9-speed Freewheel, 11-32T
Kickstand
Side-mounted, adjustable lean angle
Crankset
36T Chainwheel, 170mm Bafang Forged Alloy
Shifter
SHIMANO ALIVIO Right Shift Lever with Shifting Sensor

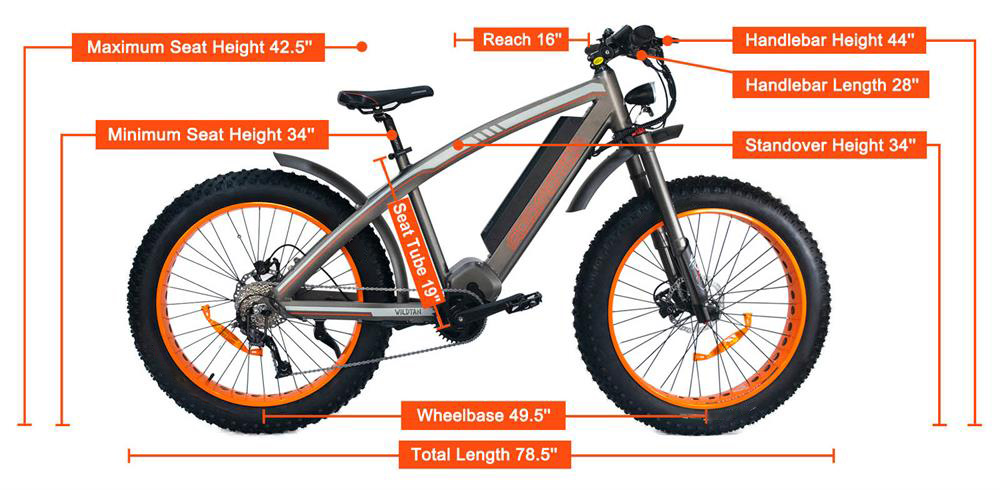

Measurement

Suits riders in the height range of 5'10"-6 '5"

Max load capacity is 350 lbs

Addmotor Wildtan M-5600 Mid-Drive Electric Bike 1000W
Total Length
78.5''
Wheelbase
49.5''
Mini/Maxi Seat Height
34''/42.5''
Seat Tube
19''
Stand Over Height
34''
Handlebar Height
44''
Reach
16''
Handlebar Width
28''
Lowest Seat to Lowest Pedal
28.3''
