Your position: Home / ELECTRIC BIKES / MOTAN

M-550

All Terrain Electric Fat Bike
Price:
$1699.00

    Please select the information you wantX
  • Color:
    Khaki
    Pearl White
    Estate Blue
    Army Green
    Black
    Grey
Quantity:
-
+
48V*750W
Rear-Mounted Motor
Up to 85+
Miles per Charge (Estimate)
48V*20.0Ah
Samsung Lithium-ion Battery
300lbs
Payload Capacity
NOTE: We are currently NOT selling this product to customers with New York City shipping and billing addresses due to Local Law 39.

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Video Review Video Review
Video Review

6 Unique Color Options

M-550 P7 electric fat bikes will be available in 6 colors, each color comes with its own flair. Enjoy the different options of khaki, army green, pearl white, estate blue, black, or grey and ride in style.

Addmotor M-550 All Terrain Fat Tire Electric Bike in white
Addmotor M-550 All Terrain Fat Tire Electric Bike in khaki
Addmotor M-550 All Terrain Fat Tire Electric Bike in Army green
Addmotor M-550 All Terrain Fat Tire Electric Bike in blue
Addmotor M-550 All Terrain Fat Tire Electric Bike in Grey
Addmotor M-550 All Terrain Fat Tire Electric Bike in Black

M-550 6 Unique Color Options
Lithium Battery Samsung Cells icon
48V*20.0 AH
Lithium Battery Samsung Cells
Miles Per Charge icon
85+ MILES (PAS 1)
Miles Per Charge (Estimate)
750W POWERFUL MOTOR icon
750W POWERFUL MOTOR
Brushless Rear-mounted hub Motor
FRONT & REAR LIGHTS icon
FRONT & REAR LIGHTS
Powered by Main Battery and Controlled by Display
STRONG & DURABLE FRAME icon
STRONG & DURABLE FRAME
6061 Aluminum Alloy Frame
26
26" 4.0" TIRES
All Terrain Is Accessible

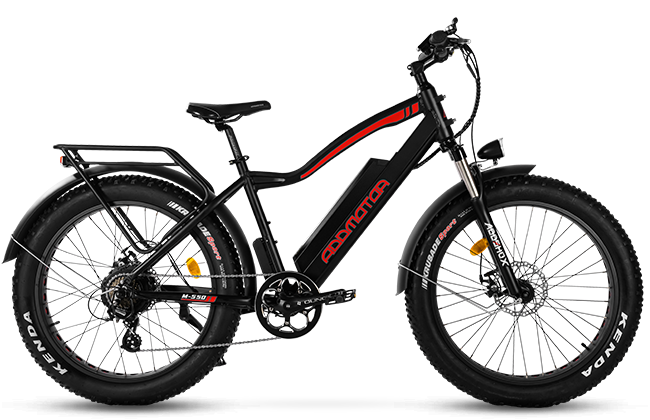

Addmotor M-550 All Terrain Fat Tire Electric Bike
All Terrain
Fat Tire Electric Bike

An excellent ebike for daily commuting
or for exploring in the woods. Don't
worry about being slowed down by
the muddy, sandy, snowy, or uphill
climbs with this all terrain electric bike.

750W High Speed Motor 20.0Ah Long-lasting Battery
Endless Riding
Possibilities 750W High
Speed Motor 20.0Ah
Long-lasting Battery

The M-550 P7 is the ideal electric fat bike for exploring your surroundings.

Addmotor M-550 All Terrain 26x4 Fat Tire Electric Bike
26" 4.0" Fat Tires
Electric Bike

This 26 x 4.0" fat tire electric bike
can take you anywhere you want
to go. Enjoy traversing over
mud, sand, hills, or snow.

20.0Ah Samsung Battery
20.0Ah
Samsung Battery

The rechargeable and removable
20.0Ah long-lasting Samsung
lithium battery will keep
you going for a long time.

750W Rear-Mounted Motor
750W
Rear-Mounted

Using a 750W rear hub motor,
the rider can easily shift gears
without putting too much strain
on the drive train, extending
the life of the components.

Up To 85 Miles Longer Range
Riding Range Of
Up To 85 Miles
Longer Range,
Farther Adventures

The M-550 P7 has a study-built frame and extra 4" wide tires. It is fully prepped for forests, deep sand, beaches, snow, and anything in between.

Addmotor 5 Inch LCD Display With USB Port
Addmotor 5 Inch
LCD Display
With USB Port

Includes many different functions
to assist you while riding it.

Front & Rear Light
Front & Rear Light

Powered using the main battery pack
and controlled by the display.

Tektro 180MM Disc Brake
Tektro 180MM
Disc Brake

Easy to maintain and provides
great force for stopping.

Addmotor M-550 All Terrain Fat Tire Electric Bike Addmotor M-550 All Terrain Fat Tire Electric bicycle
80MM Travel Addshox Front Fork
80MM Travel Addshox Front Fork

The preload-adjustable front fork gives you a smooth and comfortable riding experience.

20.0Ah Samsung Battery Pack
20.0Ah Samsung Battery Pack

Rechargeable and removable 20.0Ah long-lasting Samsung lithium battery will give you enough power to enjoy long distances.

Detachable Rear Rack and Full-Cover Fenders
Detachable Rear Rack, Full-Cover Fenders

Carry cargo, mount a child seat, and take your kids along for the ride.

Kenda Fat Tires 26x4
26'' x 4.0'' Fat Tires

Kenda 26'' x 4.0'' Fat Tires for all terrain riding

Tektro 180mm Disc Brakesh
Tektro 180mm Disc Brakesh

Easy to maintain and provides great force for stopping.

7-Speed, Cassette 14-28 Tooth
7-Speed, Cassette 14-28 Tooth

7 Speed Shimano Altus Derailleur. A wide range of gearing at your disposal.

750W Brushless Hub Motor
750W Brushless Hub Motor

With 750w at your disposal, the high-speed brushless rear-mounted hub motor can easily help you conquer the most rugged terrains.

Integrated Headlight
Integrated Headlight

Powered using the main battery pack and controlled by the display.

Integrated Brake Taillight
Integrated Brake Taillight

Powered by the main battery pack. Features brake light functionality that is activated any time the brakes are applied.

2.5A US Standard Smart Charger
2.5A US Standard Smart Charger

Charging Time 6-7 Hours Rated For 800 Charge Cycles

Technical specs
+Electronics
Battery
48V*20.0Ah Lithium Battery Samsung Cells, Charging Time 6-7 Hours Rated For 800 Charge Cycles
Motor
Addmotor 48V*750W Rear-Mounted Geared Hub Motor, 80N·M Torque for all-terrain electric mountain bikes
Display
Addmotor 5 Inch LCD Display with USB Port
Throttle
Variable Speed Control - 1/2 Twist Throttle
Controller
Addmotor 25A Controller
Headlight/Taillight
Powered by Main Battery and Controlled by Display
Integrated Wiring
Water-Resistant Connectors and Wiring Harness
Charger
2.5A US Standard Smart Charger
Pedal Assist
5 Level Pedal Assist, Cadence Sensor
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Addshox Spring Suspension Fork, 80mm of Travel, Preload Adjustment, ABS+
Brake lever
Tektro Mechanical EL530-RT / EL530-RS
Rotors
Tektro MD-M300 180mm F/R
Chain
KMC Rust Resistant Chain
Tires
Kenda 26'' x 4.0'' Fat Tires
Derailleur
Shimano Altus 7 Speeds
Handlebar
Black Aluminum Handlebar
Pedal
Alloy Black Pedals with Pins
Saddle
Addmotor, Relax with Foam
Seat Post
Quick Release 30CM
Rear Rack
Detachable Sturdy Alloy Rack
Grips
Ergonomic, Silica Gel
Stem
Promax, Alloy, 100mm Length
Freewheel
Shimano 7 Speeds
Fenders
Front and Rear
Measurement

Suits riders in the height range of 5'10"-6'5"

Max load capacity is 300 lbs

Addmotor M-550 All Terrain Fat Tire Electric Bike Measurements

1Total Length 77.1"

2Wheelbase 50"

3Bottom Bracket Height 13"

4Standover Height 29.1"

5MaximumSeat Height 42.1"

6Minimum Seat Height 34.2"

7Seat Tube 19"

8Handlebar Height 43.7"

9Handlebar Width 27.3"

10Reach 16"

11Rear Rack 14.5"

12Lowest Seat to Lowest Pedal 29.5"

Video Review

x

0
votes
Answer:
Hi! The M-550 P7 is a Class 2 electric bike.
By Manage on September 07, 2021
0
votes
Answer:
Hi! The weight of M-550 P7 is 98 lb. ( assembled product weight )
By Manage on August 05, 2021
