M-66 R7 Cruiser E-Bike

Moped-Style Step-thru Electric Bike Cruiser
(27 Reviews)
Price:
USD
$2099.00
$2599.00

    Please select the information you wantX
  • Color:
    Orange - 20AH
    Pearl White - 20AH
    Black - 20AH
    Yellow - 20AH
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*750W
Rear-Mounted Motor
Up to 80+
Miles per Charge (Estimate)
48V*20 AH
EB 2.0 Samsung (21700-5000mah)
300lbs
Payload Capacity

Popular Accessories for Your Crusier E-Bike

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Video Review Video Review
Video Review

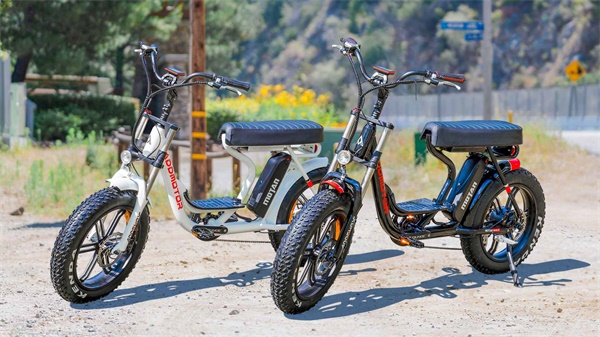

THE M-66 R7 IS HERE TO CHANGE YOUR LIFE

Unique different style of electric bike you've never seen.

Combined with a 1970's retro impressive look and step-thru frame, the M-66 R7 is the most distinctive e-bike on the market. Strong, solid, practical. The bike is everything YOU thought it would be. You can ride the bike as a commuter to work daily, cruising through the city, uphill, conquering uneven roads, beaches, snow, etc. Pedal-assist or just cruise using juice, it's up to you.

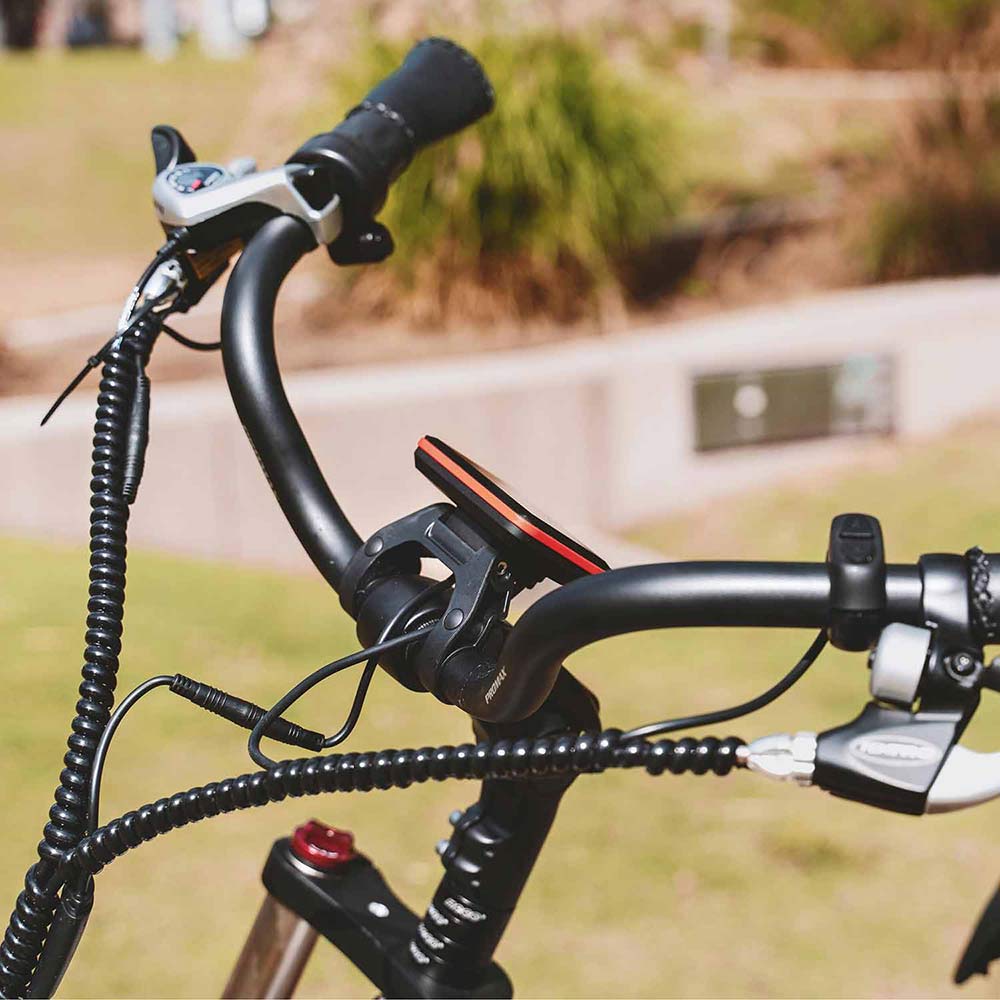

Adjustable U Style Curved Handlebar

An adjustable stem allows you to adjust to the right angle for a comfortable upright position, adjustable handlebar angle and height.

Banana Seat

A long padded seat gives you plenty of room to move around to find your most comfortable riding position, allows you to carry two.

750W Rear-Mounted Motor

Bafang 48V*750W Rear-Mounted Geared Integrated Wheel Hub Brushless Motor with 80N·M Torque

Steel Rear Footpegs

Comes with foldable passenger footpegs, a breeze for riding two people

Front Foot Platform

A small platform pedal that offers you multiple uses such as a moped, placing a box package, using as a footboard, or whatever you can think of.

Custom Electric Horn

Drawing on the design of car horns, we designed a customized electric horn, which can overcome the small decibel characteristics of traditional horns which can be transmitted about 500 Feet away.

20AH EB 2.0 Samsung Battery

The bike is powered by a 48-volt system and a 20Ah (960WH) battery, with a range of up to 80+ miles (PAS1). It can reach 5000mah by utilizing Samsung's most recent high-capacity 21700 battery cell combination.


Waterproof Wide-Angle LED Headlight

The new waterproof standard IPX5 design headlight from Addmotor is powered by a MUC chip and has a brightness of 40 lumens, a visible distance of 200m, and a 180° side view.

Taillight with Various Modes Combos

Equipped with the newly added button that allows the riders to use the light combo such as turning left and right signals, braking signals, light flashing and other functions to make riding safer and more convenient.

Uneven Patented New Add Button

The uneven design between the buttons allows you to distinguish each one with a single touch. You can easily switch the front and rear light modes without having to look at your screen while riding the ebike.




Technical specs
+Electronics
Motor
Bafang 48V*750W Rear Brushless Gear Motor.
Battery
Samsung 20AH (21700-5000mah), 8-10 Hours Fully Charged Time, Rated For 1000-1500 Cycles

Display
Addmotor EB 2.0 Multiple Function LCD Display (Increase to 7 PAS)

Controller
Addmotor EB 2.0 25A Controller, Upgraded to A Chip Type
Throttle
Variable Speed Control - 1/2 Twist Throttle With Power-Cut Switch
Headlight
Supplies a brightness of 40 lumens, a visible distance of 200m, and a 180° side view.

Taillight
UL certificate, With driving light, left and right turn signals, danger light, flashlight, brake light

Charger
48V*2.0AH 5 Pins US Standard DC Charger, 7-shaped Head Design
Pedal Assist
Intelligent 7 Levels Pedal Assist, Speed Sensor (7 PAS)
Charger Port
5 Pins With Auto Magnetic Suction Customized Snap Lock
Range
Up to 80+ Miles Per Charge with PAS 1 (Estimate Miles)



Wiring
Water-Resistant Connectors and Wiring
Harness
+Components
Frame
6061 Aluminum Alloy Step-Thru Frame
Front Fork
Addshox Spring Suspension Fork, Triple Clamp, 32.5mm Steel Stanchions, 80 mm Travel, Preload Adjust, Boost 135 mm Hub Spacing, 9 mm Skewer with Bolts
Brake Rotors
Tektro Aries Mechanical Disc with 180 mm Rotors, Tektro Four-Finger Levers with Rubberized Edge and Motor Inhibitors
Gearing
7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 Cassette 14-28 Tooth
Derailleur
Shimano 7 Speeds / ALTUS M310
Cranks
Ounce, Alloy, 170 mm Length, 42 Tooth Chainring with Double-Sided Alloy Chain Guard
Pedals
Wellgo Alloy Platform with Pins
Headset
Neco, Threadless Internal Cups, Straight 1-1/8”
Stem
Promax, Alloy, Adjustable Angle (-10º to 100º), Alloy, 110 mm Length, Four 10 mm Spacers
Grips
Ergonomic, Stitched Faux Leather, Black
Saddle
Banana Seat (23” x 8.5”), Faux Leather, Black
Rims
Cast Alloy, Double Walled
Brake
Tektro Aries Mechanical Disc with 180mm Rotors, Four-Finger Levers with Rubberized Edge, Motor Inhibitors, and Bell on Left
Brake Disc
180MM
Tires
Kenda GIGAS Puncture-resistant 20" X 4.0" Inches Durable Tires

Handlebar
Adjustable U Style Curved Handlebar, Adjust The Angle and Height

Front Wheel
Quick Release

Spokes
12-Gauge High-Strength Spokes
Fenders
Aluminum, Front Fender and Rear Fender Included

Horn
Included Electric Horn, 108 Maximum Decibel, 492 Foot away transmitted
Shifter
SHIMANO Right Thumb Shifter 7-Speed, SIS Index System

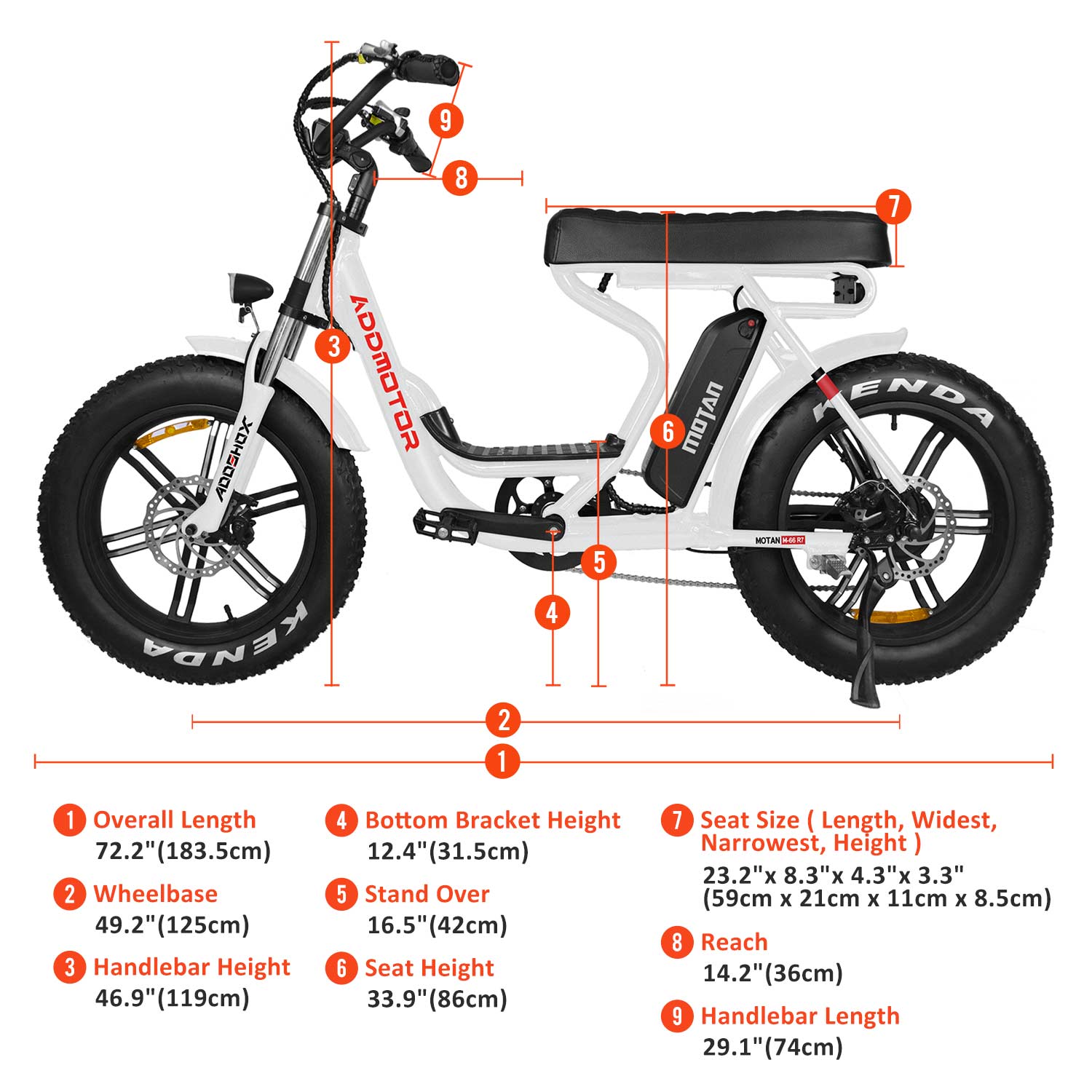

Measurement
Benefit from the adjustable stem and low-step-through frame, the bike fits a wide range of riders whose height is between 5'2'' and 6'2''.
①Total Length
72''
②Wheelbase
48''
③Min/MaxHandlebar Height
42.5'' / 48''
④Bottom Bracket Height
12.4''
⑤Stand Over
17''
⑥Seat Height
32.5''
⑦Saddle Size
23.5'' x 8.5''
⑧Reach
13.5''
⑨Handlebar Width
30''
Lowest Seat to Lowest Pedal
27.2''
