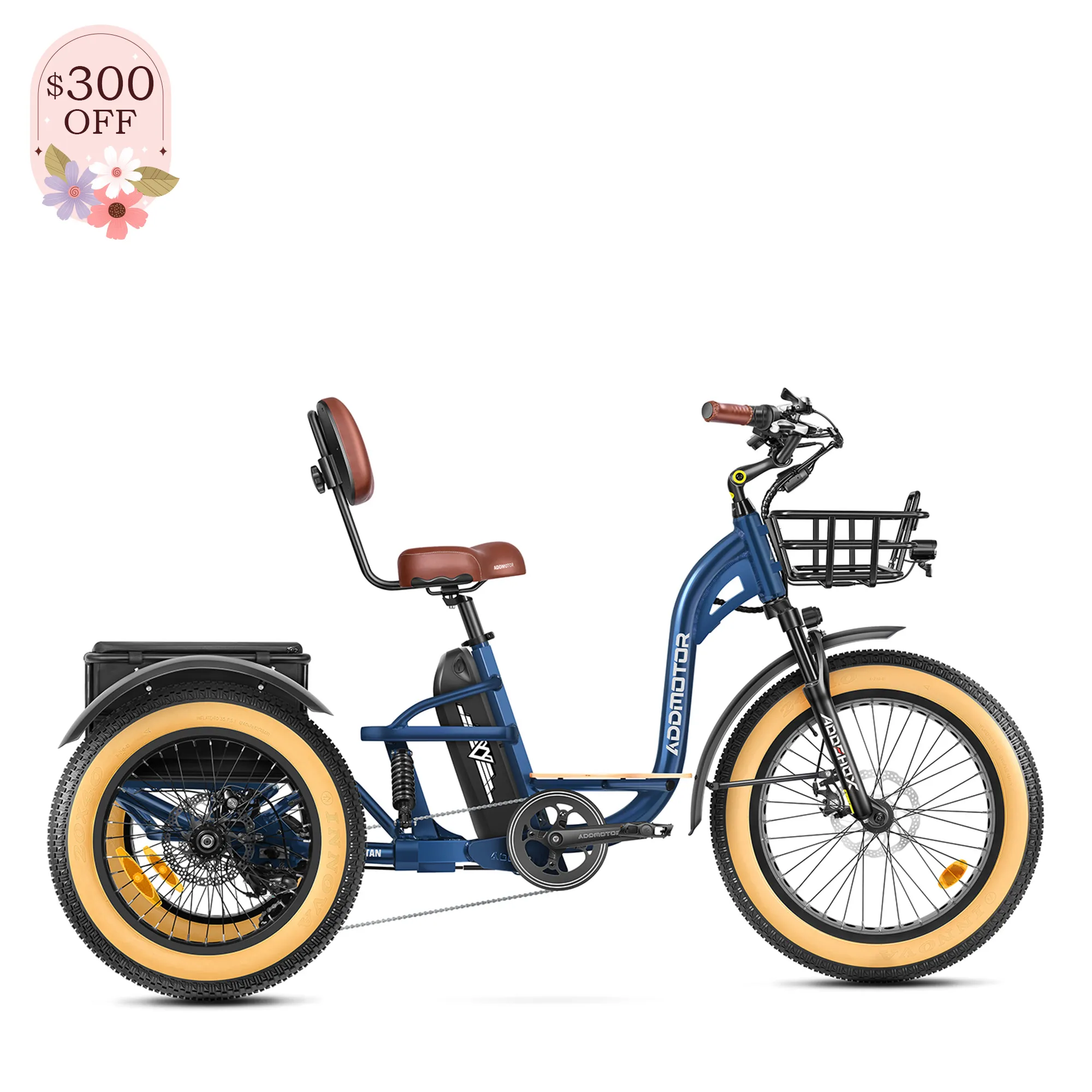

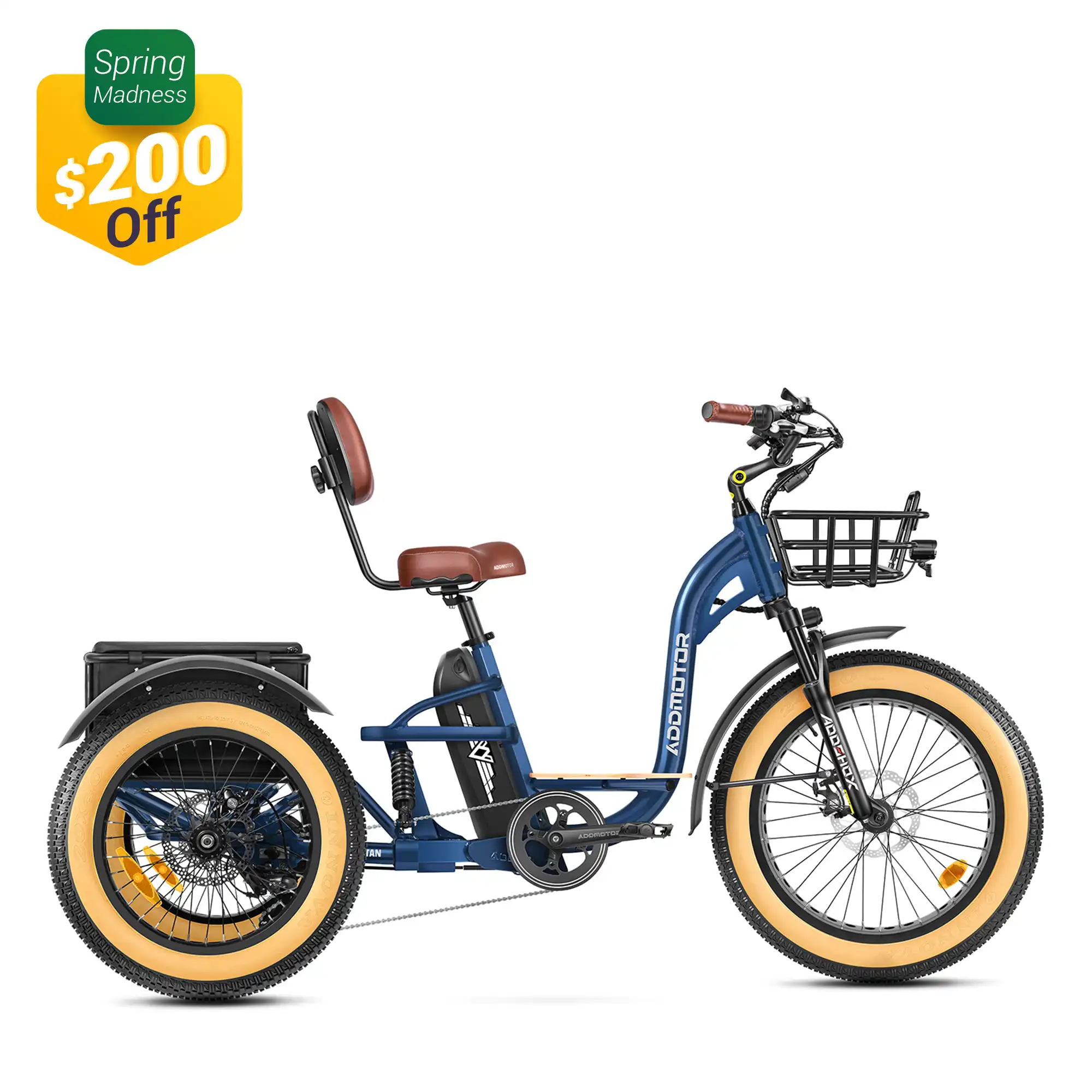

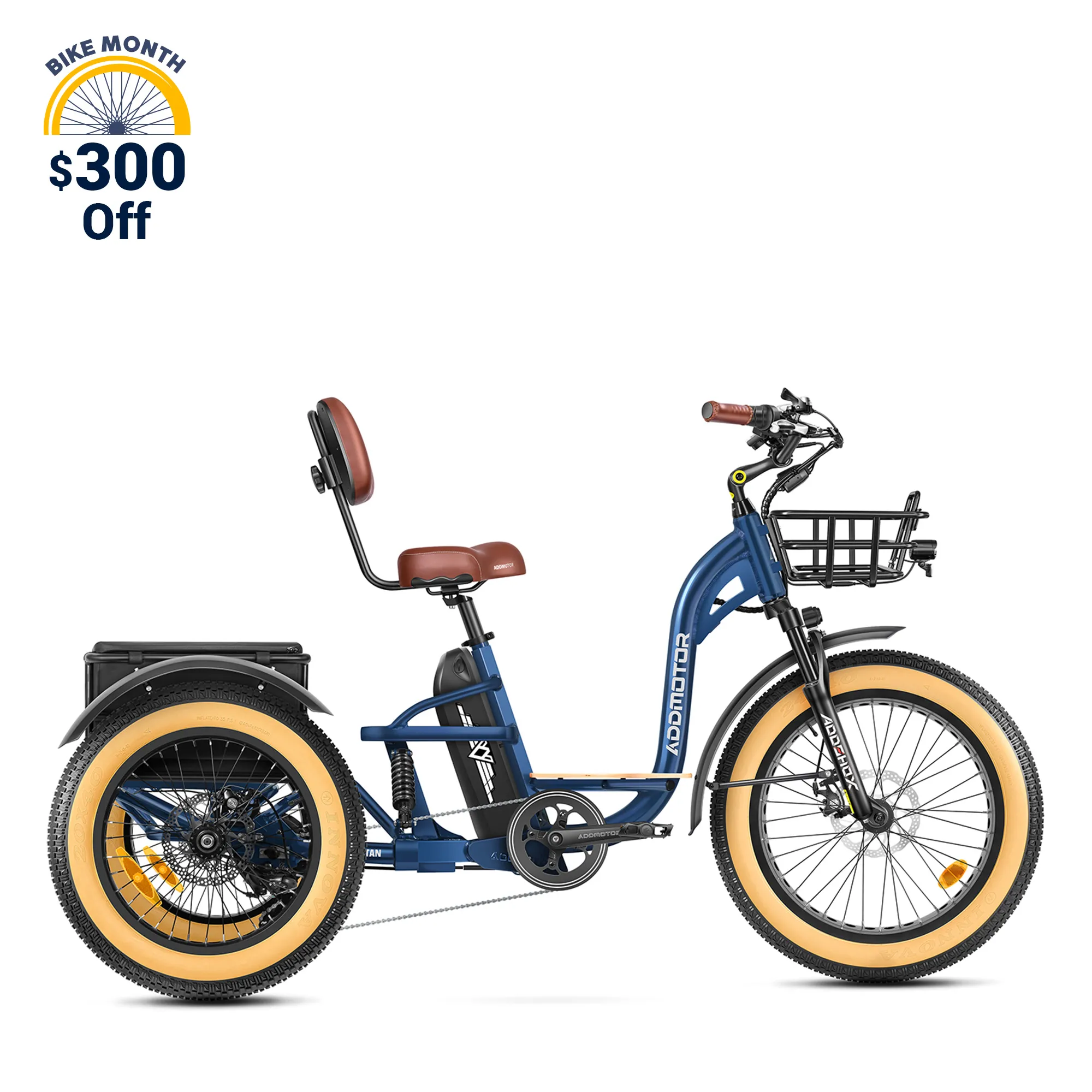

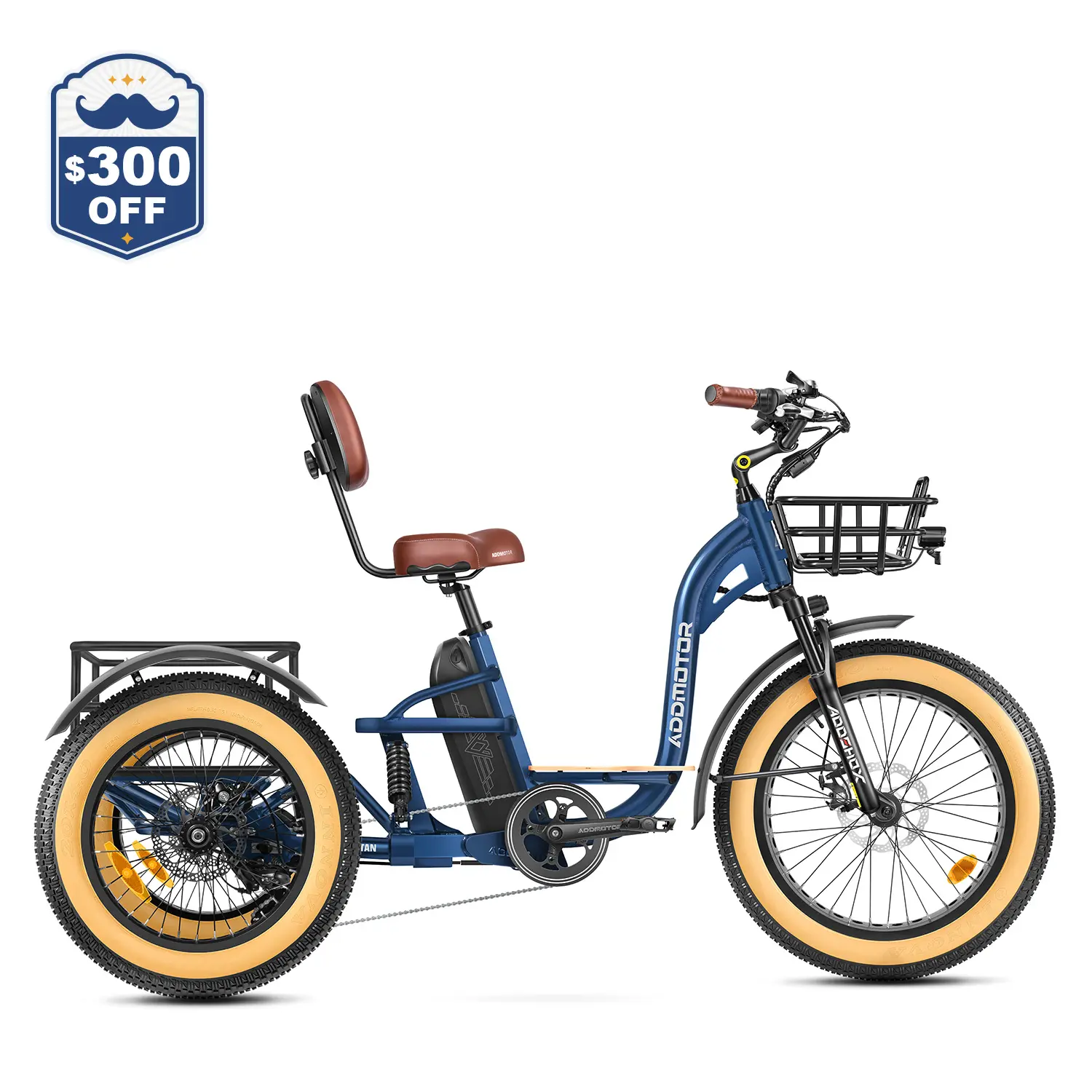

750W Rear Motor Electric Trike with Full Suspensions
(0 Review)

    Please select the information you wantX
  • Color:
    Army Green
    Neptune Blue
I agree to the AddMotor terms of purchase
Rear Mounted Motor
40-85 Miles
Extended Riding Range
UL-2271 Battery
UL Standard for Safety
Payload Capacity
NOTE: We are currently NOT selling this product to customers with New York City shipping and billing addresses due to Local Law 39.

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications

Measurements Measurements

grandtan x e-trike with dual suspension system
GREATTAN L E Trike for fun riding with your loved ones
Enjoy the Great Outdoors

Discover the joy of outdoor exploration with the GRANDTAN X electric tricycle.

trike battery icon
EB 2.0 Battery w/ Samsung Cells
trike Maximum speed Icon
20 MPH
Maximum Default Speed
PAS icon for e-trike
Pedal Assist Mode
throttle icon
½ Half Twist
Throttle Control Mode
gears icon
7 Gears
Easier Climbs & Speeds
electric trike tires' icon
4-Inch Fat Tires
More Stable & Balance
benifits of full suspension electric trike
750W Rear-Mounted Motor for grandtan X electric trike
Upgraded 750W Rear Motor

The rear-mounted motor makes the GRANDTAN X much more stable and helps maintain a better balanced ride when climbing hills.

Max Motor Torque: 90 Nm

Peak Motor Watts: 1,400W

GREATTAN L E Trike for fun riding with your loved ones
Delight in the Ride

Whether it's a tranquil journey through the forest or a smooth cruise along the paved pathways, the GRANDTAN X ensures a ride that's both comfortable and exhilarating.

feature of rear speed diferential of Grandtan e trike
Rear Differential: Turn Better

The differential allows the rear wheels to adjust to different speeds and terrains, helping you reduce slippage and hopping on turns. It better ensures you smooth and safe trike riding.

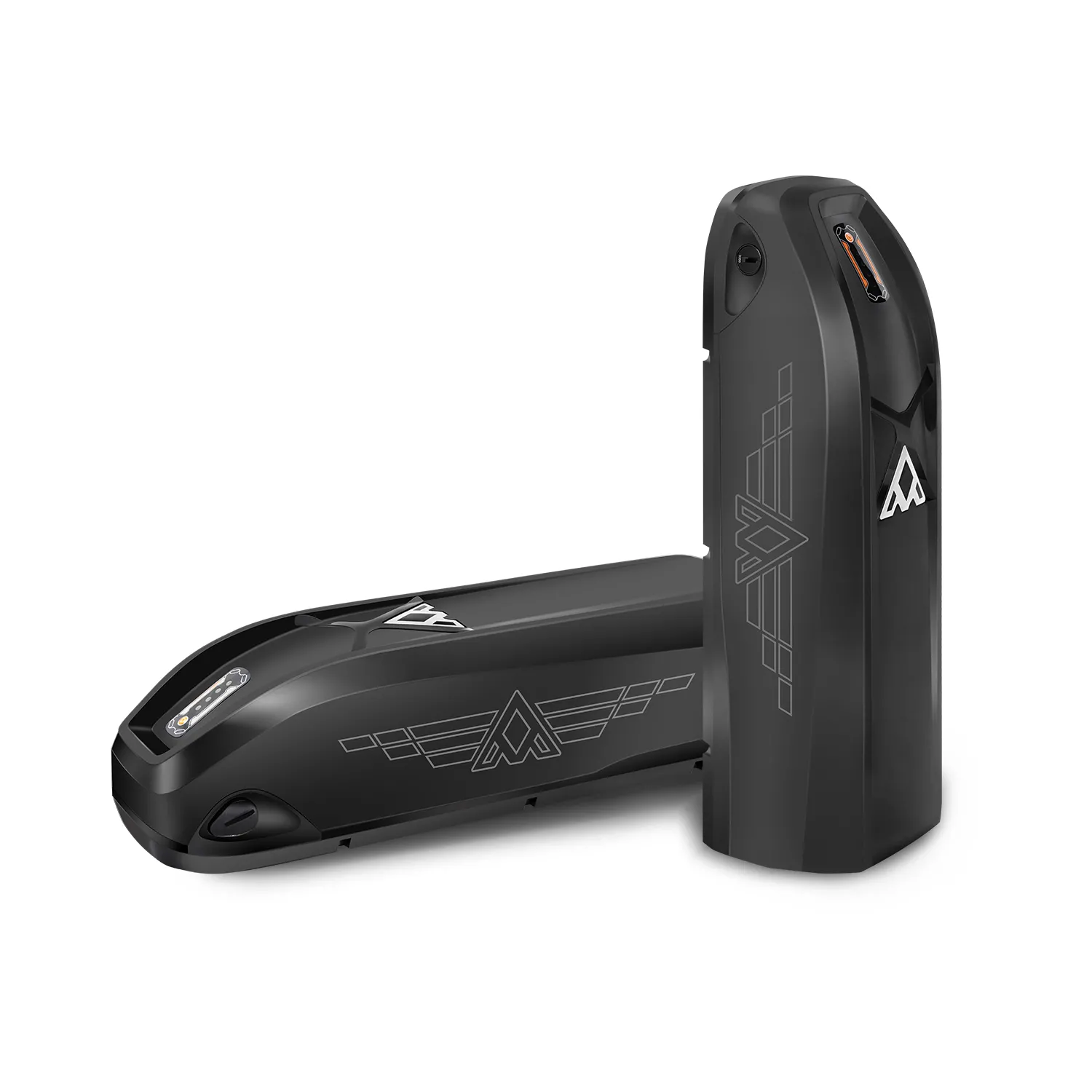

20Ah High Capacity Battery for grandtan x electric trike
EB 2.0 Samsung Cell Battery

World’s first 48V*20Ah UL Recognized battery built w/ Samsung latest 50E 21700 cells. It offers a stable 30A output current capability and IPX6 water resistance to withstand heavy rain and showers for your safety.

Charging Time: 8-10 hrs

In Accordance with UL-2271

feature of rear speed diferential of arisetan II M-360 etrike
No Roll, No Slip

The new parking brake system can lock the wheels in place when activated. So you can stop or park anywhere with confidence.

PAS 1 8 mph 85 miles
PAS 2 10 mph 75 miles
PAS 3 12 mph 65 miles
PAS 4 14 mph 55 miles
PAS 5 16 mph 50 miles
PAS 6 18 mph 45 miles
PAS 7 20 mph 40 miles

*Please note that these numbers are based on several different factors. The factors involved are: riding at a constant speed with no wind on smooth cement or asphalt roads and the rider's weight being approximately 165LBS.

  5 Inch LCD Display for grandtan x
EB 2.0 LCD Display

Provides key ride info with battery usage, mileage, speed, lights, PAS level, current motor wattage, and turning to improve your safety and control on the road.

feature of trailer tube of grandtan X electric trike 2024
Strong Trailer Tube for Extra Cargo

GRANDTAN X has an enhanced tube for effortless attachment of a trailer, significantly increasing the trike's cargo capacity. Just connect the trailer to the tube, and you're ready to carry larger loads with ease.

EB 2.0 LIGHT SYSTEM for grandtan X e trike 2024
EB 2.0 Versatile Taillight

GRANDTAN X has a 5-in-1 tail light, giving signals for driving mode, danger, flashing, braking, and turning directions. The braking signal lights up automatically when you use the brakes.

feature of torque sensor of grandtan x e trike 2024
Smooth, Responsive Pedaling

With the mid-axis torque sensor, the GRANDTAN X can better match your pedaling effort, boosting your efficiency and comfort for a more natural and responsive ride.

Mechanical Disc Brake system with 3 rotors of grandtan X electric trike 2024
Mechanical Disc Brake With Motor Cutoff Sensor

Full-wheel Tektro mechanical disc brake
system with an automatic motor cutoff
sensor allows you to slow or stop quickly.

180mm F / 2*180mm Rear Brake Rotors

grandtan X m-340 e trike 2024 wooden footrest board
Eco-friendly & Carefully Crafted Footrest Wood Board

Rest your feet on the board comfortably while using throttle mode or waiting for a green light.

grandtan X m-340 e trike 2024 step through frame
Swan-Inspired Step Through Frame

Swan style design makes the Grandtan more stylish, good-looking, and easier to get off and on.

grandtan X 2024 adjustable saddle and backrest
Adjustable Backrest & Extra Wide Saddle for Comfort

The padded saddle stablizes your ride,and the backrest height can be customized to maximize your comfort.

grandtan X m-340 e trike 2024 front suspension fork
Oil Spring Fork with Lockout: 80mm of Travel

Helps ensure a smoother and more effective shock absorption when rolling over the tough terrains.

Grandtan X E-trike Rotatable U-shaped Handlebar
Rotatable U-shaped Handlebar

An rotatable stem allows you to adjust to the right angle for a comfortable upright position.

Addmotor Grandtan X New Upgraded Differential
Upgraded Rear Differential

Improves the trike's balance and stability, making the ride safer and more enjoyable.

Curved fenders for Grandtan X electric trike
3D Fenders Keep Dirt and Sand Away

Addmotor unqiue 3D fenders can protect your body and e-trike from mud, sand and more.

Dual Rear Brake Rotors for grandtan X etrike
Three Wheel Rear Brake Rotors

The brakes system ensures safe braking at high speeds, meanwhile triggering the automatic motor cutoff and rear brake light.

Grandtan X Waterproof Storage Bag
20.5"X16"X9.5" Waterproof Storage Bag with Refective Liner Stripe

Grandtan comes with a waterproof bag freebie to store your item and safeguard your nocturnal ride.

Addmotor grandtan X eb 2.0 headlight
Integrated EB 2.0 Headlight


Technical specs
48V*750W Rear-Mounted Brushless Motor: 90 Nm Torque; 1400 Watts Peak Power
Addmotor EB 2.0 48V*20Ah (960Wh) Battery w/ Samsung Lithium-Ion Cells | Charging Time: 8-10 Hrs; Rated For 1,000-1,500 Charge Cycles
Addmotor EB 2.0 LCD Display
Addmotor 25A Controller
Right Hand Half Twist Throttle with Switch
Latest EB 2.0 front light and 5-in-1 taillight
USB Port
Integrated in Display, 5V, 1Amp
Water-Resistant Connectors and Wiring Harness
Pedal Assist
Intelligent 7 Level Pedal Assist, Upgraded Torque Sensor
48V*2A 5 Pins, US Standard DC Charger, 5 Pins With Auto Magnetic Suction
Max Range
Up to 85 Miles Per Charge with PAS 1(Estimated)
6061 Aluminum Alloy Frame
Oil Spring Front Suspension with 80mm of Travel & Rear Shock Absorber
Tektro Mechanical Disc Brake with Motor Cutoff Sensor
Brake Rotors
180mm Front / 2*180mm Rear Rotors on 3 Wheels
Aluminum 100mm + Adjustable Angle (90°)
24" X 4.0" Front & 20" X 4.0" Rear Fat Tires
Durable Ergonomic Design
Black Aluminum, Sweep Back
Seat Post
Aluminum 270mm x 31.6mm
Addmotor Exclusive Well Padded Saddle with Backrest
Seatpost Clamp
Quick Release
Aluminum Double Wall, 36H
Stainless Steel, F: 12-Gauge, R: 13-Gauge
Wellgo Aluminum with Reflectors, Standard 9/16'' x 20 TPI Threading
Aluminum Fenders, Front & Rear Included
Front: Removable, Aluminum
Rear: Removable, Aluminum, 100lbs Carrying Capacity
Prowheel Ounce, 48T Chainring, 170mm Crank Length
SHIMANO TOURNEY TY300 Rear Derailleur, 7-Speed
SHIMANO TOURNEY Right Thumb Shifter 7-Speed, SIS Index System
SHIMANO SIS Index 7-Speed, 14-32T
KMC Rust Resistant Chain

Grandtan X Trike for Riders: 5'2"-6 '4"

Max load capacity is 450 lbs.

1Total Length 77.6"

2Total Width 32.3"

3Wheelbase 53.1"

4Handlebar Height 46.5"

5Standover Height 17.5"

6Seat Tube 17.3"

7Minimum Seat Height 32.5"

8Maximum Seat Height 39"

9Seat to Handlebars 13"

10Rear Basket 48L, 20.5" x 16" x 9.5"

11Battery 9.5LBS/4.3KG

12Bike Weight 127.9LBS/58KG (including battery)
