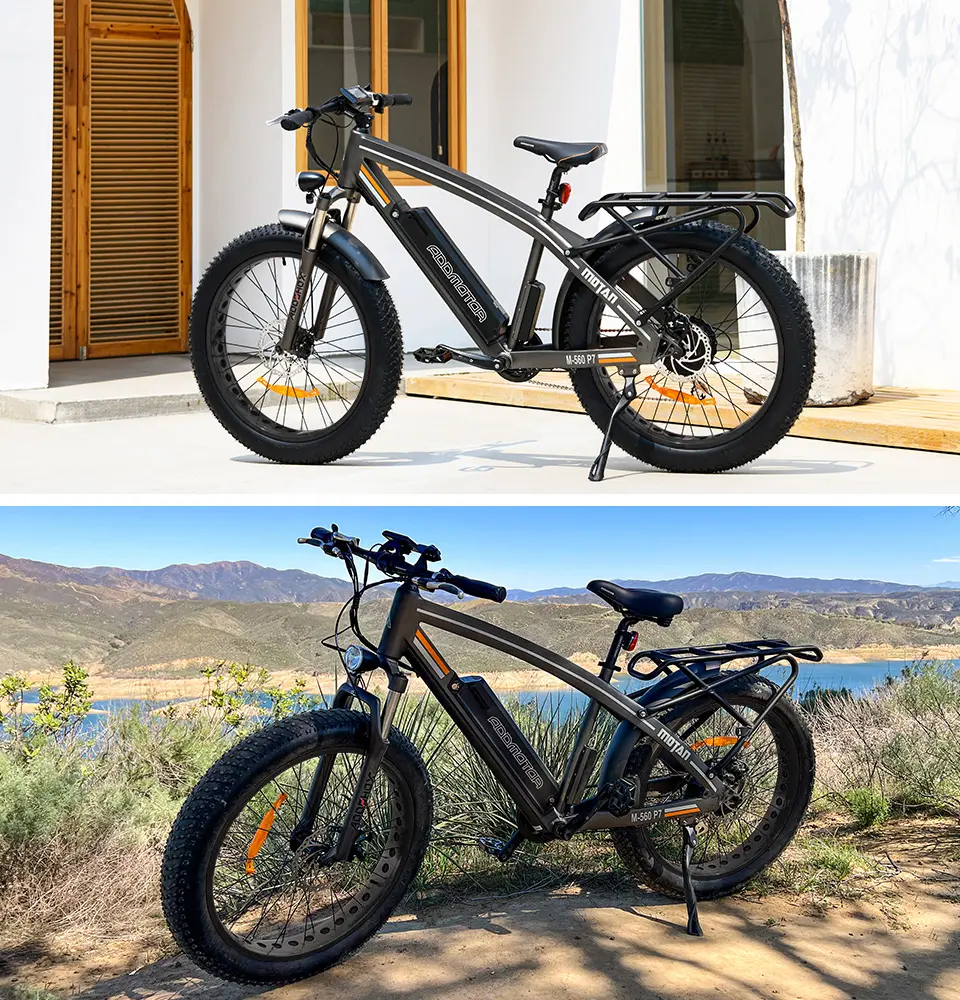

MOTAN M-560

All-Terrain Ebike
Price:
USD
$1699.00

    Please select the information you wantX
  • Color:
    Black
    Orange
    Khaki
    Army Green
    Blue
    Grey
Quantity:
-
+
48V*750W
Rear-Mounted Motor
Up to 75+
Miles per Charge (Estimate, PAS1)
48V*20Ah
Samsung Lithium-ion Battery
300lbs+55lbs
Payload Capacity

You May Also Like

Fun Features Fun Features
Fun Features

Specifications Specifications
Specifications

Measurements Measurements
Measurements

Video Review Video Review
Video Review

Six Fashion Color Options

Enjoy the electric bikes in six different stylish options. Ride in style this year with the M-560 P7.

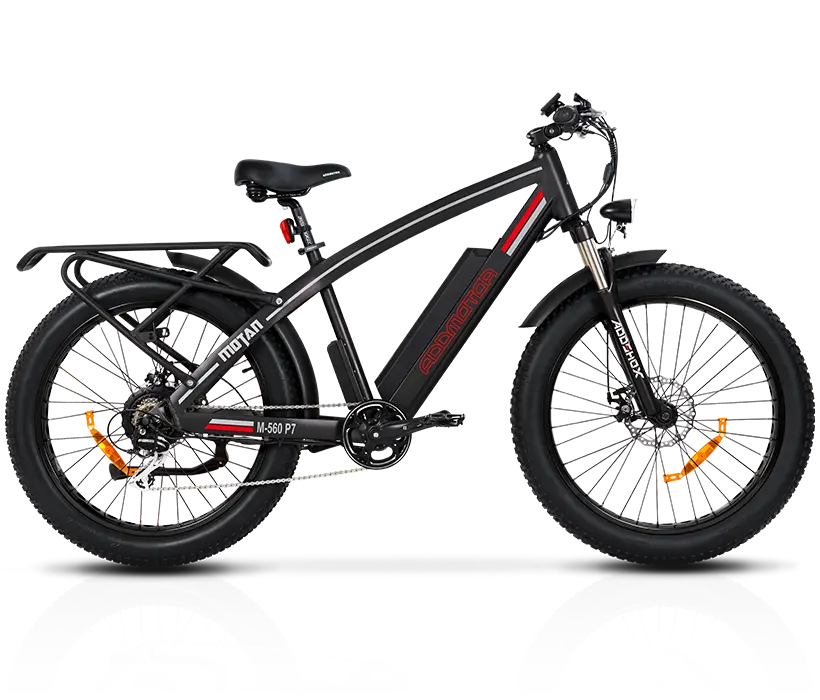

560-black

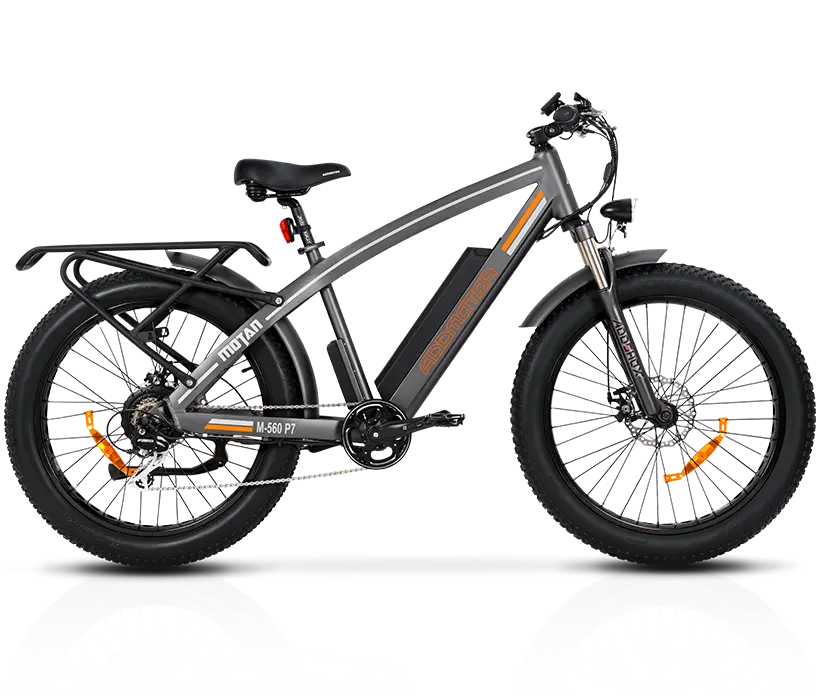

560-orange

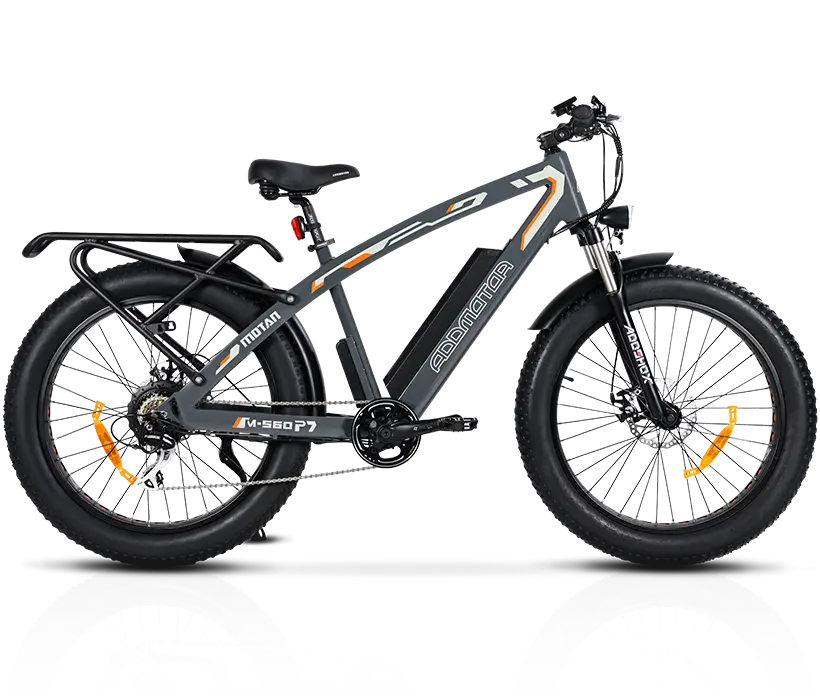

560-grey

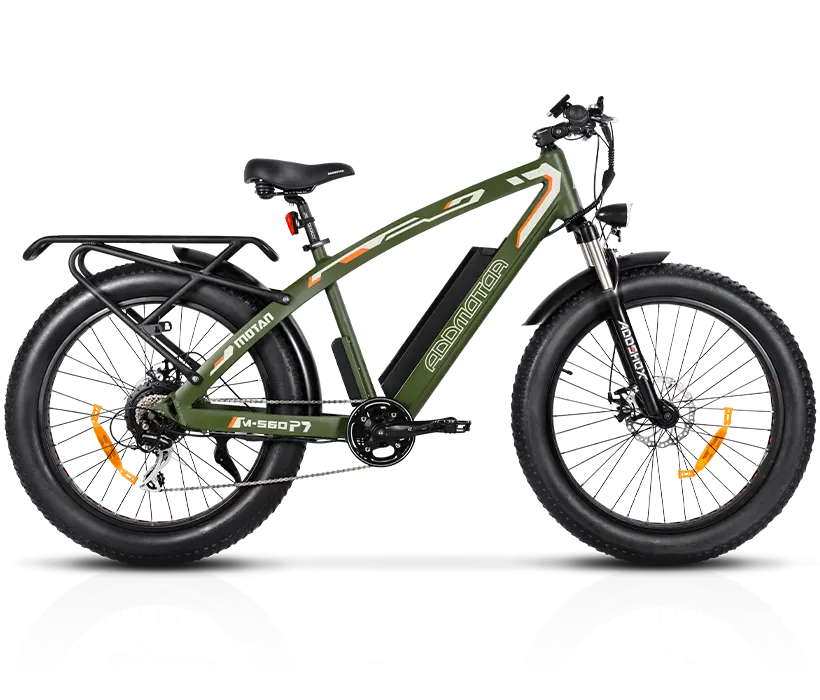

560-olive-green

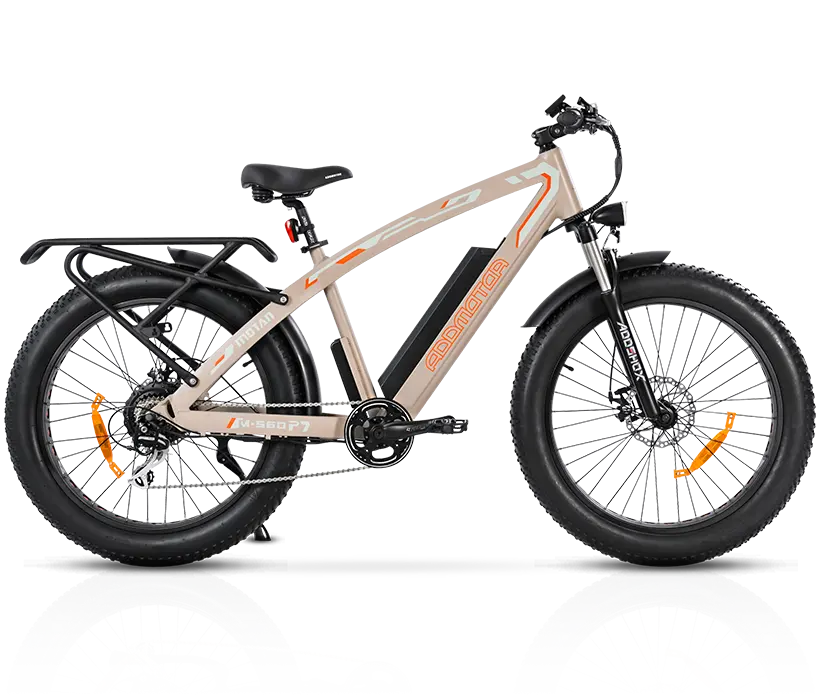

560-white

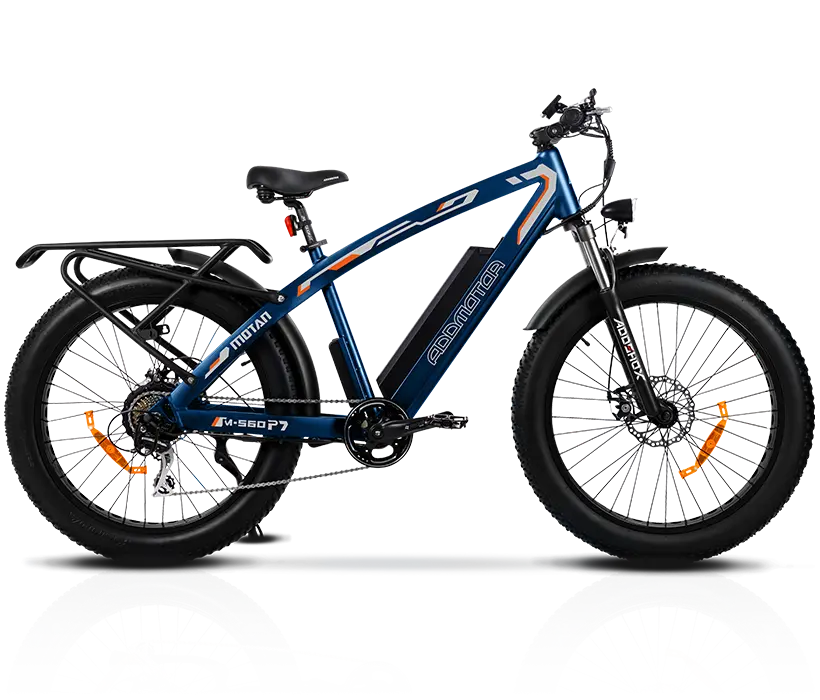

560-blue

Six Fashion Color Options
20.0 AH
Samsung Lithium-ion Battery
75+ Miles (PAS 1)
Miles Per Charge (Estimate)
48V * 750W
Rear-mounted Hub Motor
Integrated Headlight
Powered By The Main Battery Pack
Durable Frame
Stronger & Safer Frame Design
26 X 4" Fat Tires
All-Terrain Electric bike
All Terrain Fat
Tire Electric Bike

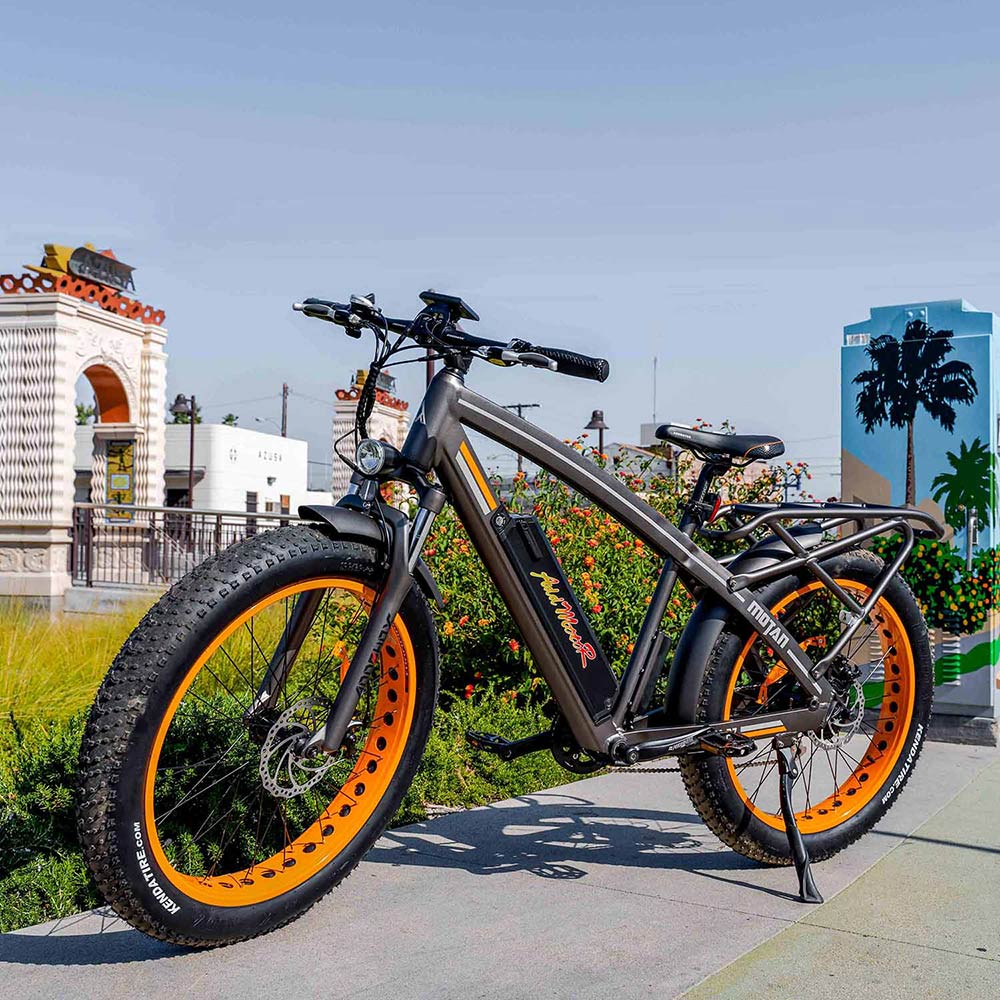

The M-560 P7 All Terrain Electric
Bike is a great fat tire e-bike
whether for daily commuting or
for exploring the woods for
hunting and adventuring.

750W Powerful And
Strong Motor Help
You Climb Uphills
Smoothly And Easily

The 750W high-speed brushless rear-mounted hub motor on the electric bicycle can assist you in traveling across even the most difficult terrains.

26 x 4.0" Fat
Tires Electric Bike

The 26 x 4" tires are incredibly popular
as they can allow you to ride in many
different conditions and environments.

20.0Ah
Samsung Battery

The 48v 20.0ah battery has strong
capacity & excellent longevity.

750W
Rear-Mounted Motor

Using a 750W rear hub motor,
the rider can easily shift gears
without putting too much strain
on the drive train, extending
the life of the components.

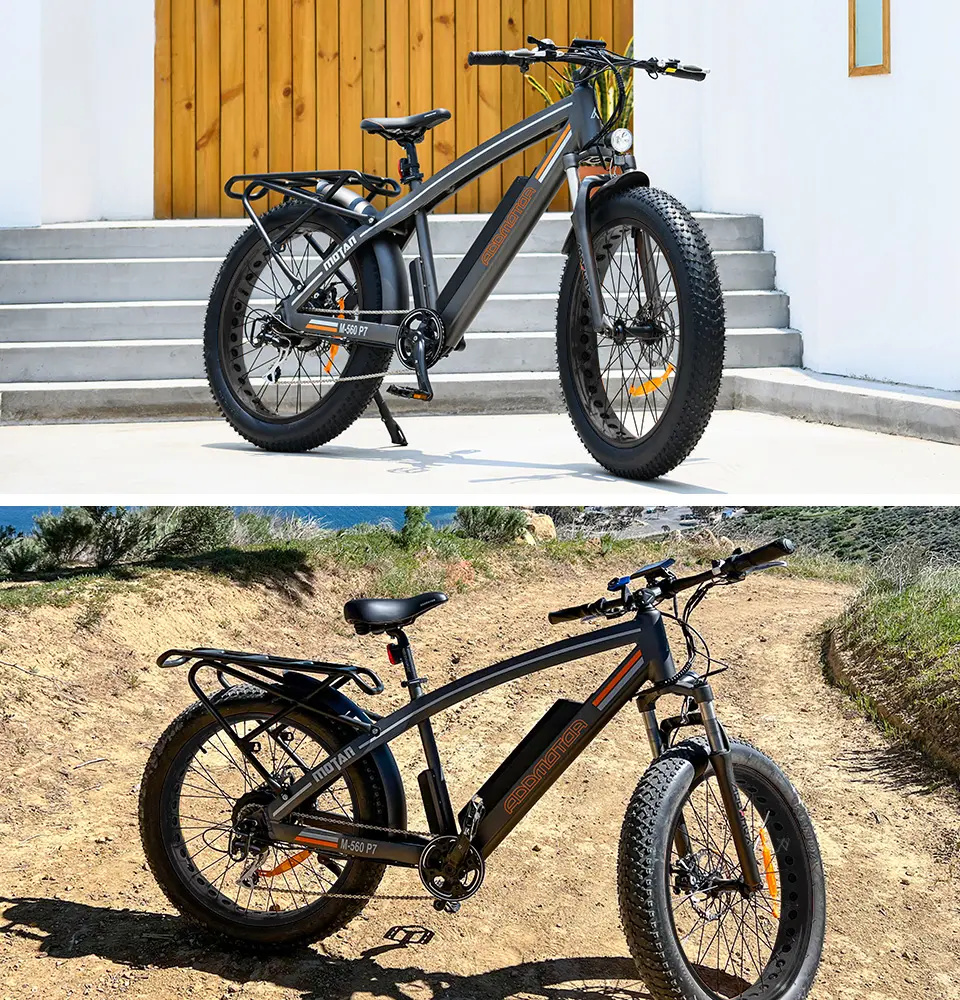

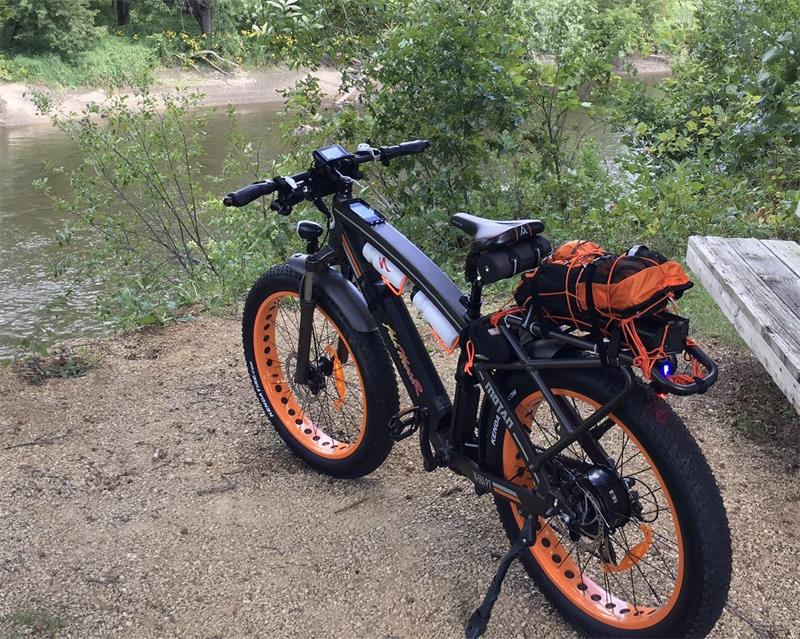

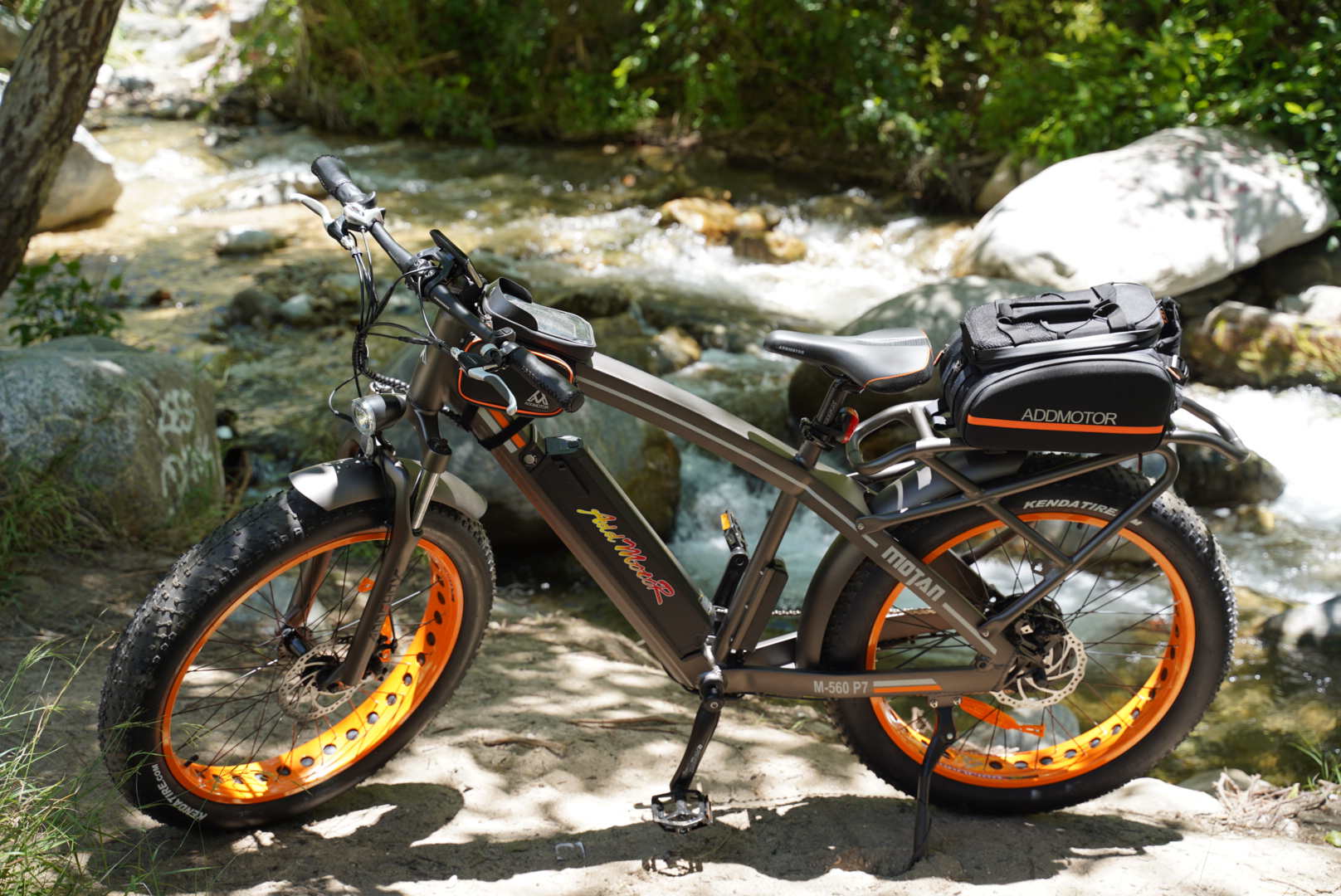

Enjoy Many Different
Types Of Adventures
Riding Range Of
Up To 75 Miles

Ride longer and farther on your next adventure.

Addmotor 5 Inch LCD
Display With USB Port

Includes many different functions
to assist you when riding the ebike.

Tektro 180mm
Disc Brakes

Easy to maintain and
provides great force for stopping.

Integrated Headlight

Powered using the main battery
pack and controlled by the display.

Details of Motan M-560 ebike Details of Motan M-560 bicycle
100MM Travel Addshox Front Fork

The preload-adjustable front fork gives you a smooth and comfortable riding experience.

20.0Ah Samsung Battery Pack

Rechargeable and removable 20.0Ah long-lasting Samsung lithium battery will give you enough juice to go long distances.

Detachable Rear Rack, Full-Cover Fenders

Carry cargo, mount a child seat, and take your kids along for the ride.

Tektro 180mm Disc Brakes

Easy to maintain and provides great force for stopping.

Comfortable Saddle

Ergonomic, high-quality, and relaxed with foam

Addmotor 25A Controller

25A

26'' x 4.0'' Fat Tires

Kenda 26'' x 4.0'' Fat Tires, 30TPI

750w Brushless Hub Motor

With 750w at your disposal, the high-speed brushless rear-mounted hub motor can easily help you conquer the most rugged terrains.

Integrated Headlight

Powered using the main battery pack and controlled by the display

7-Speed, Cassette 14-28 Tooth

A wider range of gearing at your disposal means more torque for treacherous uphill climbs and maintaining pedal authority at top speed.

Technical specs
+Electronics
Battery
48V*20.0Ah Lithium Battery Samsung Cells, Charging Time 5-6 Hours Rated For 800 Charge Cycles
Motor
Bafang 48V*750W Rear-Mounted Geared Hub Motor, 80N·M Torque
Display
Addmotor 5 Inch LCD Display with USB Port
Throttle
Variable Speed Control - 1/2 Twist Throttle
Controller
Addmotor 25A Controller
Headlight
Powered by Main Battery and Controlled by Display
Integrated Wiring
Water-Resistant Connectors and Wiring Harness
Charger
2.5A US Standard Smart Charger
Pedal Assist
5 Level Pedal Assist, Cadence Sensor
+Components
Frame
6061 Aluminum Alloy Frame
Front Fork
Addshox Spring Suspension Fork, 100mm of Travel, Preload Adjustment, ABS+
Brake lever
Tektro Mechanical EL555-RT / EL550-RS
Rotors
Tektro MD-M300 180mm F/R
Chain
KMC Rust Resistant Chain
Tires
Kenda 26'' x 4.0'' Fat Tires, 30TPI
Derailleur
Shimano Altus 7 Speeds
Handlebar
Black Aluminum Handlebar
Pedal
Aluminum Black Pedal
Saddle
Addmotor Padded Comfortable Saddle
Seat Post
PROMAX Quick Release 30CM
Rear Rack
Detachable Sturdy Alloy Rack
Grips
Ergonomic, Silica Gel
Stem
Aluminum Alloy Stem
Freewheel
Shimano 7 Speeds
Fenders
Front and Rear
Measurement

Suits riders in the height range of 5'10"-6'6"

Max load capacity is 300 lbs

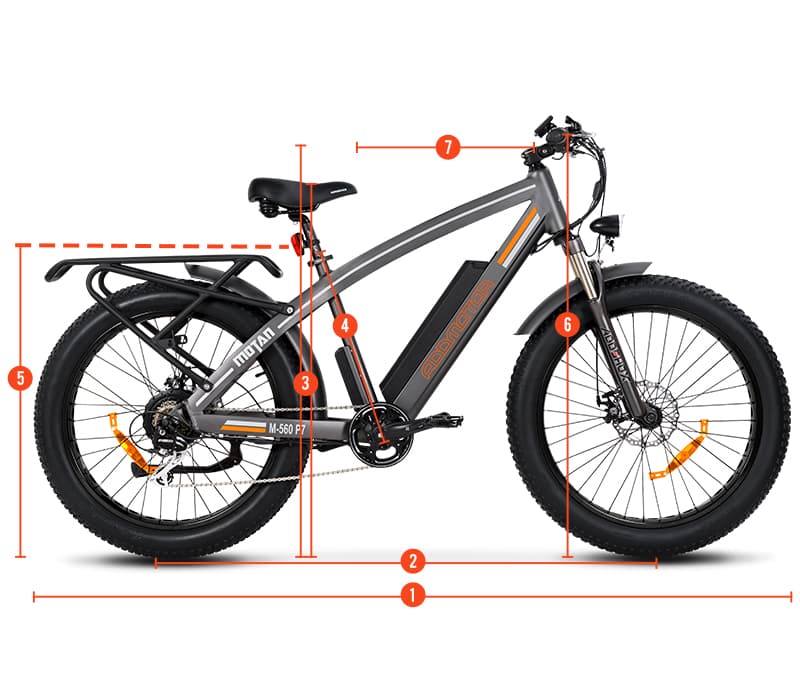

Measurement of Motan M-560 ebike

1Total Length 77"

2Wheelbase 48"

3Mini/Maxi Seat Height 33.5"/42"

4Seat Tube 19"

5Standover Height 32"

6Handlebar Height 43.5"

7Reach 18"

8Rear Rack 24.8*6.3"

9Bike Weight (Include Battery) 74 Lbs

10Lowest Seat to Lowest Pedal 28.3"

Video Review

x

0
votes
Answer:
Yes, the max speed can be changed in the dashboard (LCD Display). More detail information can be found in the page 32 of the maunal. Hope this helps.
By Manage on May 05, 2023
0
votes
1
votes
Answer:
On my bike the handlebar height cannot be adjusted. However, you can purchase a stem riser and then the handlebar height can be raised.
By Addmotor Customer on September 22, 2022
0
votes
Answer:
Hi, this M-560 P7 is rate 750W (1200W peak).
By Manage on September 06, 2021
0
votes
Question:
2
votes
Question:
Answer:
What's top speed?
By Addmotor Customer on August 19, 2021
