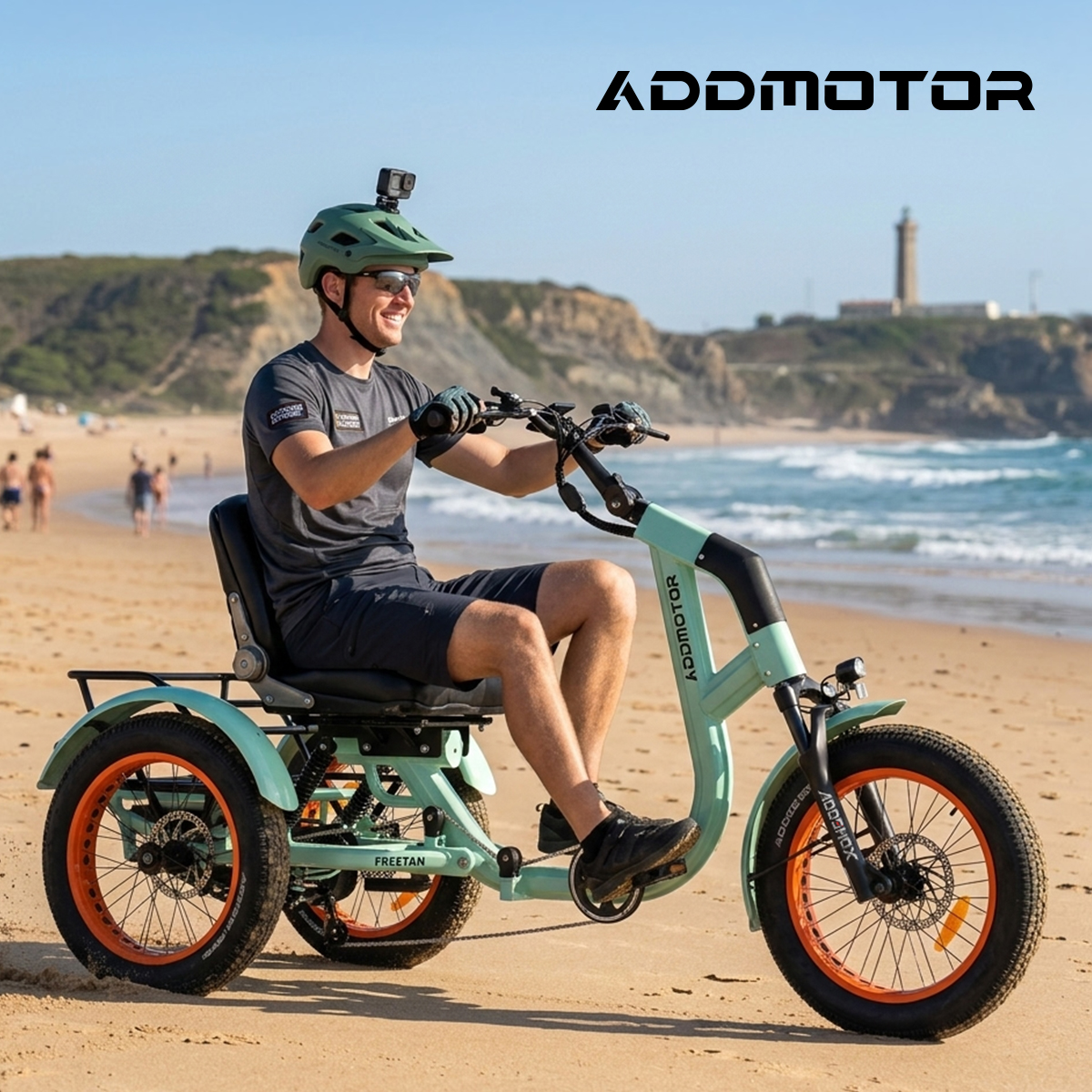

Addmotor Freetan M‑368X: The Next‑Gen Recumbent Electric Trike for Unmatched Comfort & Control
Addmotor Freetan M‑368X
The Next‑Gen Recumbent Electric Trike for Unmatched Comfort
The story of how the Addmotor Freetan M‑368X came to be—its early concepts, its challenges, and the decisions that shaped its direction—has already been shared in our previous article: Read the Story Here.
This article continues from that point. Here, the focus shifts from the development journey to the product itself. We examine the Addmotor Freetan M‑368X as a finished platform—its structural architecture, integrated systems, and performance‑defining engineering. Each major subsystem is analyzed in detail, showing how the universal‑joint steering mechanism, full‑suspension system, speed differential, torque‑sensor power delivery, internal cable routing, the 48V20Ah Full‑Potting Battery with Aluminum Cooling & Thermal Management Upgrade, and Addmotor’s EB2.0 and EC3.0 electronic control platforms to deliver a stable, comfortable, and highly reliable semi‑recumbent riding experience.
Core Engineering Innovations & Manufacturing Breakthroughs
The Addmotor FREETAN introduces a new engineering benchmark for adult electric tricycles, combining a one‑piece aluminum frame, precision steering architecture, and a full‑suspension system tuned for real‑world adult riders. This section outlines the structural, mechanical, and system‑level decisions that enable the FREETAN to deliver consistent stability, comfort, and long‑term reliability across diverse riding environments.
1. Building a Stronger Structural Platform
One‑piece 6061 aluminum frame
The FREETAN’s frame is formed from a single 6061 aluminum alloy tube bent over 90 degrees in one continuous operation. This eliminates weld points — the most common failure locations in traditional tricycle bikes for adults — and ensures uniform load distribution across the frame.
This approach provides measurable benefits. The frame resists torsional flex under the torque of a 750W motor, maintains alignment under heavy rider weight, and reduces long‑term fatigue.
Steel Gear‑Mesh Universal Joint
Addmotor addressed steering stability by developing a steel, gear‑mesh universal joint with CNC‑cut square interfaces and custom locking hardware. This architecture eliminates micro‑movement and maintains a consistent steering response throughout the trike’s service life.
Minimum turning radius: ≈2 m for precise low‑speed control. It enables a full 180° turn within a single car lane.

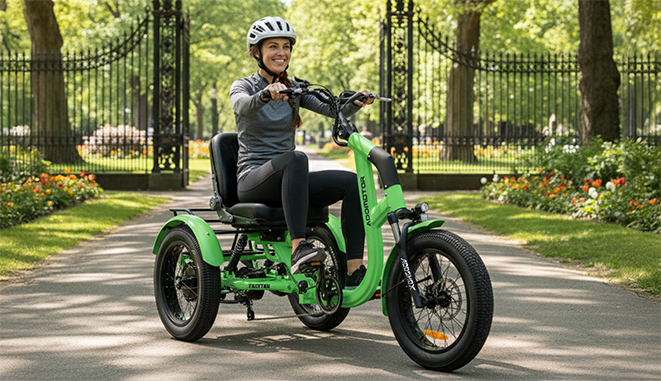

Full‑suspension system tuned for adults
The FREETAN’s suspension is engineered for adults in the 200–250 lb range. The Addshox triple‑clamp fork provides 80 mm of controlled travel using 32.5 mm steel stanchions. The rear shock underwent extensive testing across 300–1000 lb spring rates before final calibration.
Low‑step through frame geometry designed for accessibility and safety
The FREETAN’s ultra‑low step-through frame supports easy mounting and dismounting. This design is particularly beneficial for seniors, mobility‑limited riders, and heavier adults. The low‑step geometry is made possible by the one‑piece frame, which maintains structural integrity without requiring additional welds or reinforcements. This accessibility advantage is a key differentiator in the adult electric tricycle category and expands the range of riders who can use the trike confidently.
2. Advancing Manufacturing Precision
Industrial Large‑Radius Tube Bending
Large‑radius bending of thick aluminum tubing is a capability uncommon in the e‑trike industry, yet essential for achieving the FREETAN’s seamless frame geometry. This process preserves wall thickness, prevents wrinkling, and ensures consistent structural integrity across the frame. By investing in this manufacturing expertise, Addmotor delivers a frame with improved stability, reduced vibration, and longer service life compared with conventional welded constructions.
Internal Cable Routing
All brake lines, shift cables, and electrical harnesses are routed internally through the frame — a process that requires additional machining and assembly but provides clear functional gains. Internal routing protects components from weather, reduces wear, supports seamless integration with the EB2.0 lighting system, and delivers a cleaner, more premium appearance, enhancing both durability and aesthetics for riders seeking a high‑end electric trike.
Structural Reinforcement
The FREETAN M-368X frame uses reinforced sections to manage the torque produced by its 750W motor and differential, preventing twisting, maintaining alignment under load, and reducing long‑term fatigue. This structural strength allows the trike to function reliably as a motorized cargo tricycle, fat‑tire electric trike, or passenger‑capable electric trike, ensuring consistent performance for commuting, hauling, and touring across varied terrain and load conditions.
High‑precision assembly requirements
Internal wiring, custom brackets, and precision‑machined components require a more advanced assembly process than typical electric tricycles. Addmotor provides installation tools for early production units to ensure proper setup and long‑term reliability. This assembly complexity reflects the engineering standards behind the FREETAN and contributes to its premium performance profile.
3. Delivering Consistent Power and Safety

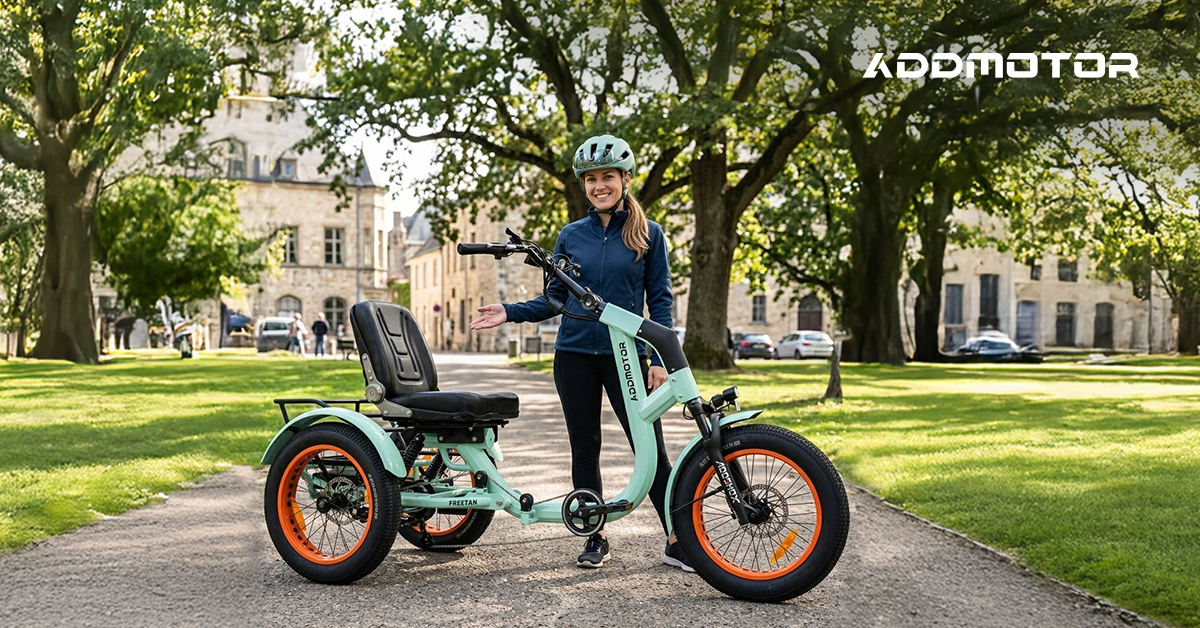

Addmotor EB 2.0 Control Platform
The Freetan M-368X propulsion system is built on the Addmotor EB 2.0 control platform, combining a 750W rear‑drive motor, 25A controller, and high‑resolution torque sensor to deliver real‑time proportional assist with smooth, predictable torque across varied terrain, inclines, and load conditions. Its multi‑stage current‑modulation algorithm stabilizes acceleration through seven PAS levels, while the linear half‑twist throttle ensures surge‑free response; together, these elements enhance low‑speed control, maintain performance under cargo, reduce drivetrain stress, and form a cohesive, durable propulsion architecture engineered for daily transportation.
EB2.0 lighting system for enhanced visibility
The integrated EB 2.0 lighting suite features a 40 LUX, ISO‑compliant headlight paired with Addmotor’s patented 5‑in‑1 rear safety module, which consolidates brake, turn, hazard, and running‑light functions into a single high‑visibility unit. Engineered for real‑world traffic environments, this system delivers enhanced forward illumination and 180‑degree rear signaling performance, meeting the safety expectations associated with premium‑class electric trikes. Powered directly by the main battery, the lighting suite maintains consistent brightness and operational reliability without the need for separate charging or auxiliary power sources.
Enhanced Battery Safety
Potting + Aluminum Cooling + Thermal Management Upgrade. Addmotor uses a full‑potting process for both Kirin and Xuanwu models, filling the battery pack with thermally conductive silicone to improve heat dissipation, safety, waterproofing, and vibration resistance, while the Xuanwu version adds a mid‑section aluminum‑alloy housing to expand cooling surface area and help prevent thermal runaway. Built on this foundation, the 48V20Ah pack benefits from the EB2.0 full‑potting architecture for stable output, longer service life, and enhanced safety, with an optional aluminum‑core configuration providing even stronger thermal performance for riders in hot climates or those traveling long distances.
Speed Differential
The FREETAN uses a precision‑tuned rear speed differential to balance the left and right wheel speeds, preventing tire scrub, rear‑end hop, and frame twist that rigid‑axle trikes often experience. It lets the outside wheel rotate faster in turns, stabilizes the frame at higher speeds through even torque distribution, and enables an exceptionally tight ≈2 m turning radius at low speeds by allowing the inside wheel to slow nearly to a stop. Working together with Addmotor’s steel gear‑mesh universal joint and EB2.0 power delivery, the system delivers smooth, predictable, and confidence‑inspiring handling across all riding conditions.
Torque Sensor
The FREETAN uses a high‑precision torque sensor that measures pedaling force in real time and adjusts motor output proportionally, delivering instant, natural‑feeling assistance instead of the delayed or abrupt engagement common in cadence‑based systems. This produces smoother starts, better low‑speed control, and a more intuitive riding rhythm. Working with the EB2.0 controller, 750W rear drive motor, and differential‑assisted rear axle, the system creates a seamless power curve that reduces fatigue, eliminates power spikes, and enhances stability during climbs, cruising, and stop‑and‑go urban riding.
Motorcycle‑grade secondary chain for high‑torque applications
A motorcycle‑grade chain connects the motor to the differential, preventing chain failure under high torque — a common issue in lower‑cost motorized trikes. This upgrade significantly improves drivetrain reliability and reduces maintenance requirements. For riders who use their trike for hauling or frequent throttle‑based riding, this chain system provides a measurable durability advantage.
4. Designing for Rider Fit and Comfort
Multi‑adjustable Fit System for Riders 5'1"–6'7"
The FREETAN M-368X features a multi‑adjustable fit system designed to accommodate riders from 5'1" to 6'7". The handlebar offers height and angle adjustability with multiple riding positions, including an “ape‑hanger” setup. A sliding footrest module uses an automotive‑inspired mechanism to match different leg lengths, while the wide seat and reclining backrest adjust from 90° to 170°, providing strong support for riders with lumbar, hip, or rehabilitation needs. Together, these components create one of the most adaptable rider‑fit systems available on an adult electric trike.
Ergonomic seat system for long‑distance comfort
The Freetan M-368X ergonomic seat system combines firm lumbar support, a wide recline range, and optional side bolsters to maintain comfort and stability over long rides. Its coordinated handlebar and seat‑back adjustments enable relaxed semi‑reclined or fully reclined postures, while the broad seat base and supportive backrest reduce pressure and fatigue, delivering far greater comfort and load distribution than traditional bicycle saddles.
5. A Modern Visual Identity
New Signature Colors Within an Established Design Language
The FREETAN builds on Addmotor’s established visual identity—retaining the classic Neptune Blue, Orange model and the existing green frame option—while introducing two new signature colors: Avocado Green and Bay Blue, both paired with Addmotor’s signature bright orange dual‑layer rims. This expanded palette preserves brand recognition while refreshing the overall design language, creating a contemporary and highly recognizable presence within the fat‑tire adult tricycle category.
Bay Blue
A lighter, more refreshing blue tone that visually reduces the perceived mass of the large frame. Bay Blue pairs naturally with the bright orange dual‑layer rims, producing a clean, high‑contrast appearance that enhances visibility and brand recognition.
Avocado Green
A modern, softer green that complements Addmotor’s existing green family. When combined with the signature bright orange dual‑layer rims, it delivers a bold yet approachable visual identity that feels both fresh and familiar.
6. Built for Daily Use and Ultimate Comfort
A Complete Riding Experience Engineered for Adults
Daily Mobility & Urban Commuting
The FREETAN M-368X semi-recumbent posture and EB2.0 lighting system reduce fatigue and improve visibility in stop-and-go traffic. With a ≈2 m turning radius and torque-sensor PAS, navigating bike lanes, parking garages, and narrow urban corridors becomes precise and effortless, even when wearing work attire.

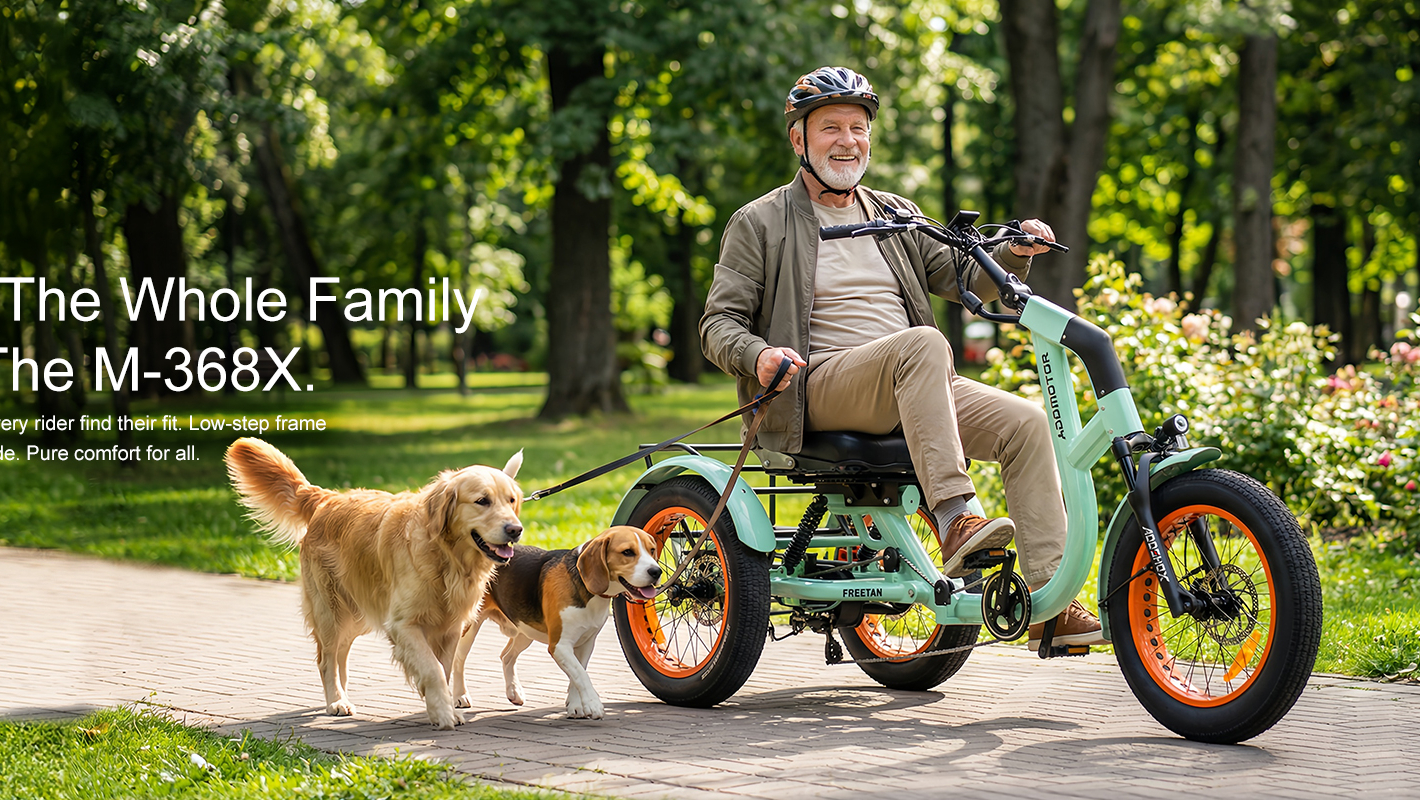

Rehabilitation & Recovery
For riders recovering from hip or back conditions, the low-step frame and adjustable seat provide a secure, low-strain mounting experience. The full-suspension system and differential-assisted steering reduce joint impact, while the 48V 20Ah full-potting battery ensures consistent power for therapeutic sessions.
Fitness & Low-Impact Exercise
The semi-recumbent design supports extended cardio workouts without saddle discomfort. Riders can use the torque sensor to maintain a steady cadence for interval training, supported by a 750W motor and motorcycle-grade secondary chain that withstands high-torque pedaling on any terrain.
Camping & Outdoor Leisure
Ideal for campground loops and gravel paths, the FREETAN features fat-tire stability and a 170° recline that transforms the trike into a comfortable lounge seat. The precision steering joint allows easy maneuvering around RVs, while the long-range battery supports multi-day outdoor adventures.

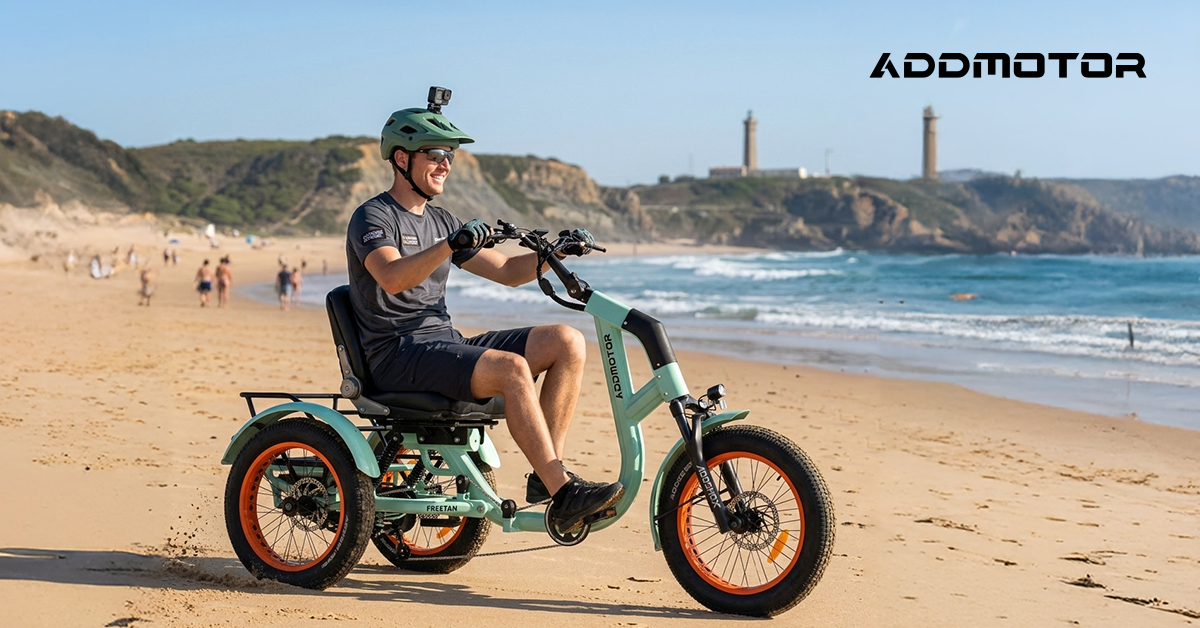

Beach & Coastal Riding
Built for the coast, the sealed full-potting battery and corrosion-resistant frame thrive in salty environments. Fat tires and the differential system maintain predictable handling on sand-dusted boardwalks, ensuring smooth and controlled acceleration during scenic beachfront cruises.
Cruising & Long-Distance Touring
On extended recreational tours, the ergonomic seat and full suspension maintain comfort for hours by reducing pressure points. The motorcycle-grade chain and stable 48V output ensure drivetrain reliability, making low-speed sightseeing and long-range path navigation smooth and effortless.
Experience Universal-Joint Recumbent E-Trike
As the first semi-recumbent electric tricycle in the U.S. with a true universal-joint steering system, the FREETAN M-368X represents a breakthrough in adult mobility.
Combining EB2.0 technology, full-suspension comfort, and a precision speed differential, it delivers a ride unmatched in stability and smoothness.
With internal routing and a 48V 20Ah full-potting battery, this trike is engineered for long-term reliability.
