Decoding XuanWu Batteries: The "Potting + Aluminum Case" Tech
When an E-Trike struggles on a steep hill or loses power on a hot day, the root cause is thermal throttling. To protect itself from severe overheating, the battery management system automatically limits current output—leaving you underpowered even with a full charge.
During heavy starts, continuous climbing, or high-current fast charging, the battery cells under the seat generate intense thermal loads. Concurrently, persistent road vibrations exert massive, unseen mechanical strain on the pack's internal connections.
Conventional plastic-shell batteries suffer from two fatal flaws:
- Poor Heat Dissipation: Plastic is a terrible conductor of heat, trapping it inside like a heavy "down jacket" for the battery cells.
- Poor Shock Resistance: Prolonged vibration can easily wear down or snap internal connections, causing your riding range to "collapse" prematurely and even creating hidden safety hazards.
A truly reliable E-Trike battery must solve three major challenges at once: heat dissipation, shock resistance, and safety. Modern high-safety battery packs are increasingly adopting the XuanWu technology architecture—a golden engineering combination of full potting thermal gel + an integrated aluminum case.
This cutting-edge technology delivers both outstanding cost-effectiveness and top-tier protection. The XuanWu battery design is now widely deployed in practical, E-Trike models, including the Addmotor Freetan M-368X (48V 20Ah) and the Addmotor Citytan M-315 (48V 13.5Ah).

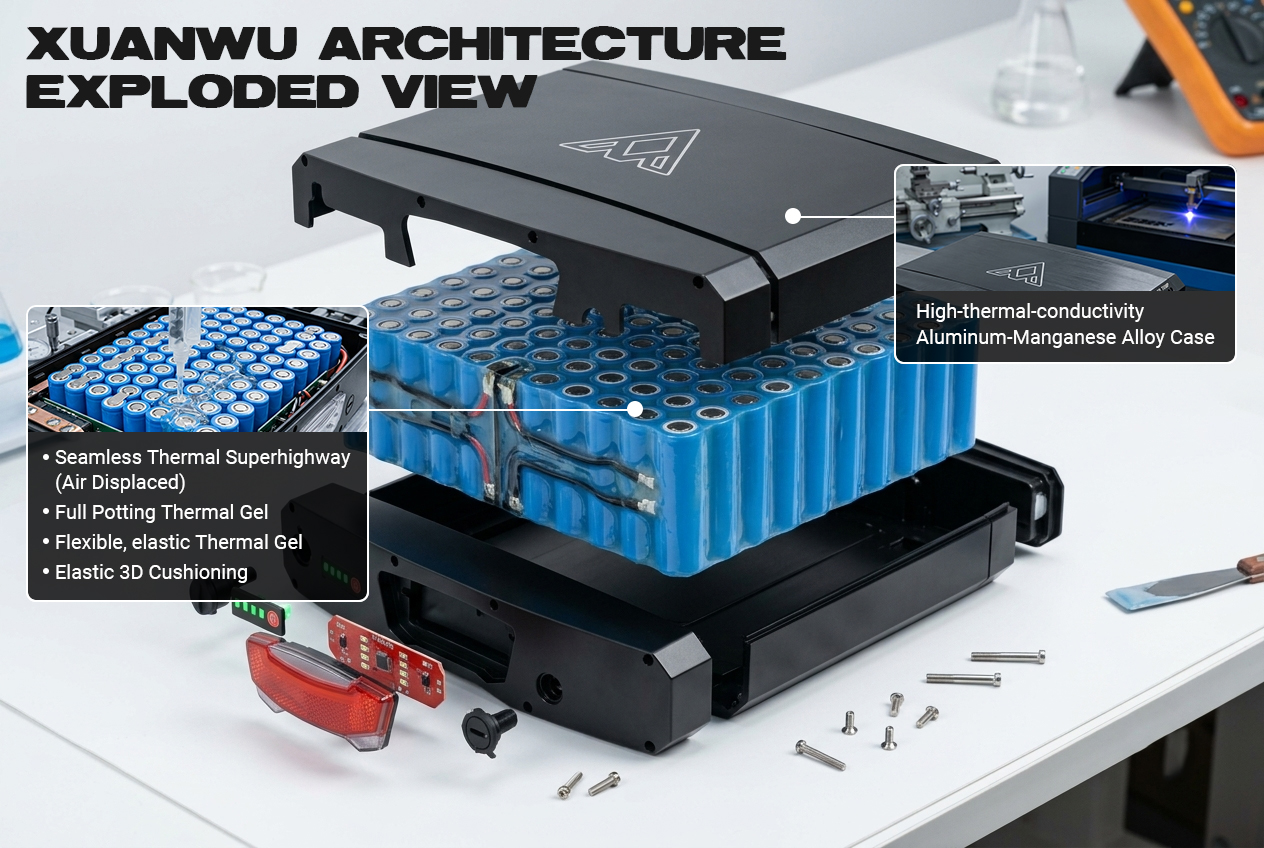

I. Core Principle: The "Rigid-Flexible" Seamless Structure
1. Integrated Aluminum Case – The Iron Armor
The XuanWu battery completely abandons fragile, poorly-conductive engineering plastics in favor of a high-thermal-conductivity aluminum-manganese alloy (3003/3005 series) case. Aluminum alloy has a thermal conductivity of about 200 W/(m·K) —nearly a thousand times that of ordinary plastic. The case itself acts as a giant "3D heat sink," instantly transferring internal heat to the outside air.
Furthermore, aluminum alloy offers excellent impact and deformation resistance, forming a solid first line of defense for the internal cells. What's more, the XuanWu battery adopts a rear-placed battery layout, effectively lowering the vehicle's center of mass. During riding, especially when cornering, this provides superior balance and handling stability—making cargo hauling and everyday errands much smoother, even with a full load.
2. Full Potting Thermal Gel – The Flexible Energy-Absorbing Core
During production, a two-component addition-cure silicone gel is precisely injected in a liquid state, seamlessly penetrating into gaps as small as 1–2 mm between the cells. This completely displaces air (which is an incredibly poor conductor of heat) and builds a seamless "thermal superhighway" from the inside out.
After curing, the gel transforms into an elastic, "jelly-like" material, acting as a 3D cushioning airbag. When an E-Trike takes a heavy turn, passes over speed bumps, or rides on muddy gravel roads, the battery's internal structure is subjected to multi-directional stresses. This high-elasticity gel effectively absorbs shocks from all X, Y, and Z axes, ensuring that internal solder joints and circuits remain intact and secure over years of heavy use.
II. What Does This Technology Mean for Your Riding Experience?
We've put this system through rigorous testing—and here's exactly what it means for your daily rides, in plain numbers and real-world results.
1. Rapid All-Round Heat Dissipation – No Thermal Throttling on Hot Climbs
The aluminum case and thermal gel work together effectively. In our testing, under extreme conditions such as continuous high-current fast charging and heavy-load hill climbing, internal hotspot temperatures are reduced by 8–12°C. This temperature difference is more than enough to prevent thermal throttling—so you get full, uninterrupted power when you need it most, even on scorching summer days with a fully loaded bike.
2. Slower Capacity Degradation – Battery Life Extended by ~20%
Heat is the silent killer of lithium batteries. Based on accelerated aging tests, prolonged exposure to high temperatures degrades the internal chemistry, slowly robbing you of your overall riding range over time. By keeping the core temperature consistently lower, this advanced thermal system extends the battery's usable life by roughly 20%. This translates directly to hundreds of extra charge cycles and years of reliable service, saving you money on a replacement battery down the road.
3. Double Insulation + Suffocation-Grade Flame Retardancy – The Safety Baseline
The fully potted gel itself offers extremely high electrical insulation strength (dielectric strength exceeding 10 kV/mm), and together with the anodized insulating layer on the aluminum case, it forms a double insulation barrier that effectively eliminates leakage and short-circuit risks.
Additionally, the potting compound meets the UL94 V-0 highest flame-retardant rating. In the rare event of a single cell anomaly, the gel releases water of crystallization upon heating, rapidly absorbing heat and cutting off oxygen—effectively smothering the fire inside the battery and helping prevent it from spreading to the rest of the vehicle.
4. Convenient Pull-Out – Charge Anywhere, Anytime
The XuanWu battery features a highly user-friendly pull-out design. No special or complex tools are needed—just pull it out and easily bring it home or to the garage for convenient storage or charging. Whether you're storing it indoors during freezing winter months or topping off the charge in your workshop, you have complete control over where and how you charge, offering both everyday convenience and true peace of mind.

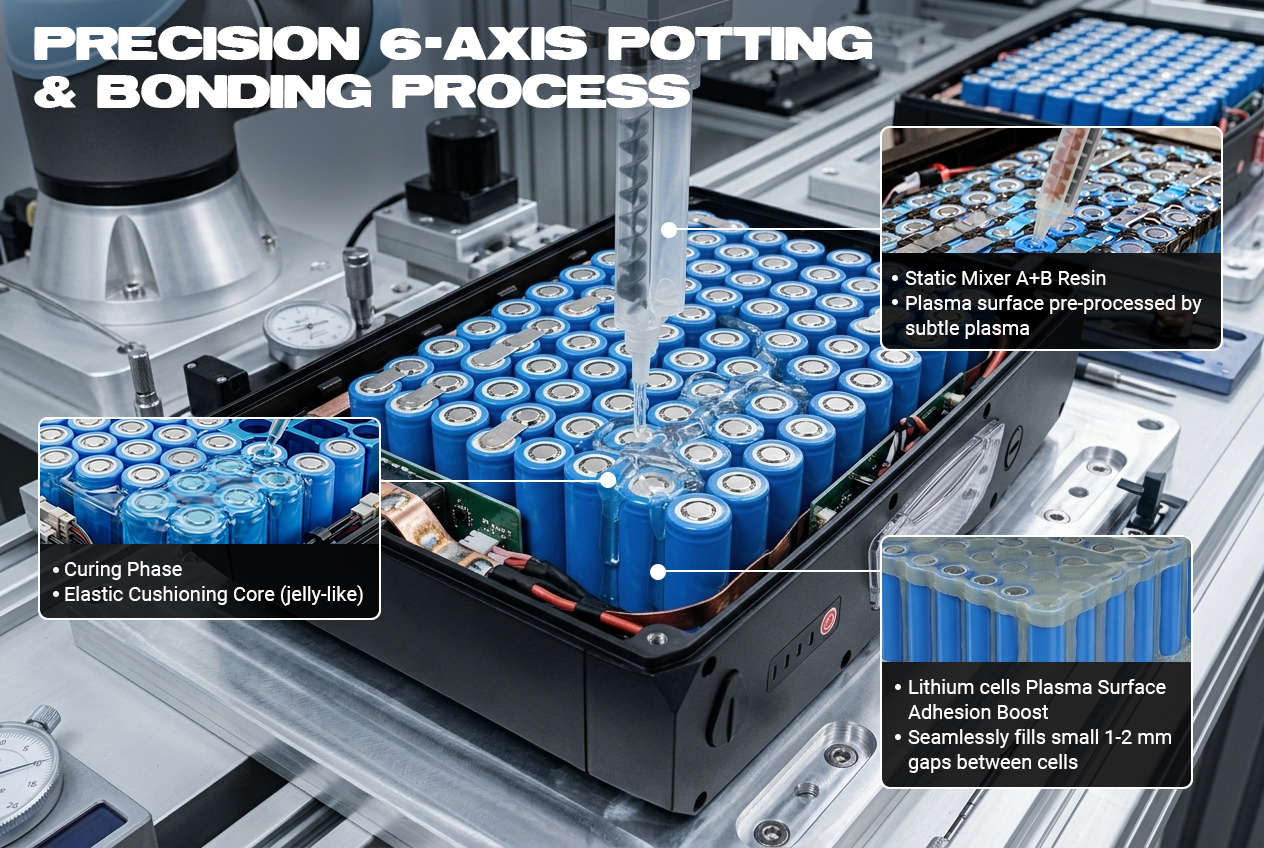

III. Under the Microscope: Modern Automated Manufacturing Behind the Cutting-Edge Tech
Plasma Cleaning – Boosting Adhesion by Multiple Times
Before potting, advanced plasma sparks bombard the cell surfaces, thoroughly removing microscopic oil residues and modifying surface energy. This increases the adhesion reliability of the thermal gel several to tens of times, achieving molecular-level bonding that ensures no delamination or peeling over years of use.
Axis Robotic Precision Potting – Millimeter-Level Full Encapsulation
Rejecting low-end manual dispensing, a high-precision 6-axis robot with a dynamic mixing system precisely injects the two-component resin according to a 3D digital model of the case interior. The A and B components are perfectly mixed in a static mixer, guaranteeing a bubble-free, dead-angle-free complete encapsulation—creating a flawless protective "cocoon" for every single cell.
Stress-Free Curing – Zero Internal Damage
Using advanced addition-cure silicone chemistry, the curing process releases no harmful or corrosive by-products, ensuring zero stress or structural damage to internal electrical components.
IV. All-Weather Versatility: The Ultimate Companion for Every E-Trike Mission
Daily Commuting & Heavy Cargo: During heavy starts and steep climbs, motor current surges instantly. This system immediately dissipates that sudden spike in heat, ensuring stable, uncompromised power output no matter how much you're carrying.
Rough Roads & Gravel Trails: The XYZ 3D shock-absorbing design effectively absorbs high-frequency vibrations from unpaved or rugged surfaces, so you can ride with confidence, never worrying about hidden "internal injuries" to your electrical system.
Rain, Wet Conditions & Coastal Salt Spray: The high-grade physical sealing achieved by full potting effectively repels moisture. Rain, mud, and heavy humidity are all effectively kept out, keeping the battery compartment clean, oxidation-resistant, and corrosion-free for the long term.
Conclusion: Investing in What You Can't See Is True Value
The integrated aluminum case provides impact resistance and rapid heat dissipation. The full potting thermal gel delivers shock absorption, insulation, and flame retardancy. Together, this rigid yet flexible architecture ensures lasting durability.
When buying an E-Trike, the price tag is only half the story; long-term service life is what matters. The XuanWu battery is engineered for the long haul—extending service life and lowering failure rates through hidden, high-quality materials and automated manufacturing.
This XuanWu battery now comes standard on our flagship models, delivering reliability for both the Addmotor Freetan M-368X (48V 20Ah) and the urban Addmotor Citytan M-315 (48V 13.5Ah).
